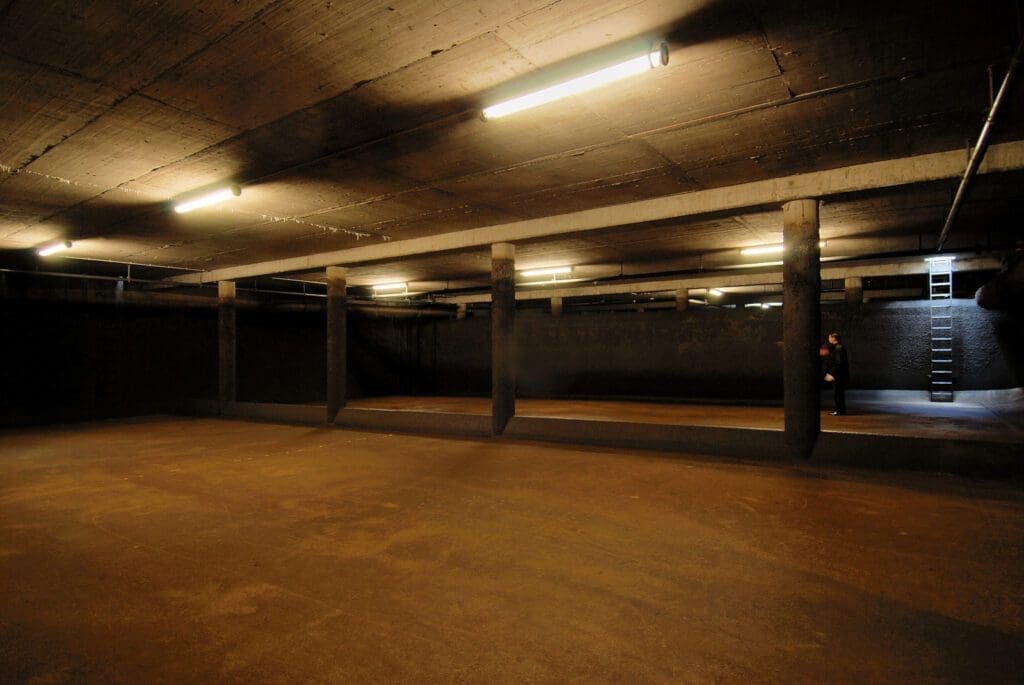

Underground stormwater ponds are vast water cisterns which are used to avoid flooding in urban areas or the discharge of dirty water into rivers. They can fill up rapidly before the water retained is progressively routed to a water treatment plant.

The configuration (depth, width) of these ponds varies significantly, and can benefit from the wide range of products and options offered by Sammode, in an ATEX zone, to adapt to all situations or needs (fixing methods, power, dimensions). Sammode housings are durable, well-sealed, can withstand temporary immersion and are made from tough materials (stainless steel mechanical parts and composite diffuser), ensuring an exceptionally long-lasting service life in a corrosive environment. Sammode luminaires dedicated to explosive environments are particularly light and easy to use when compared with other models available on the market. If you aim to install your luminaires in record-breaking time, opt for a Plug & Play model pre-equipped with a pluggable ATEX lead produced in partnership with Marechal Electric.

Requirements

• ATEX
• Corrosion
• UV resistance

Recommended products

• Sabatier Xtrem

  Borosilicate glass tube ø133 for extreme or highly corrosive ATEX zone 1 atmosphere

• Boyle Xtrem

  Borosilicate glass tube ø100 and ø133 for extreme or highly corrosive ATEX zone 2, 21 and 22 atmospheres

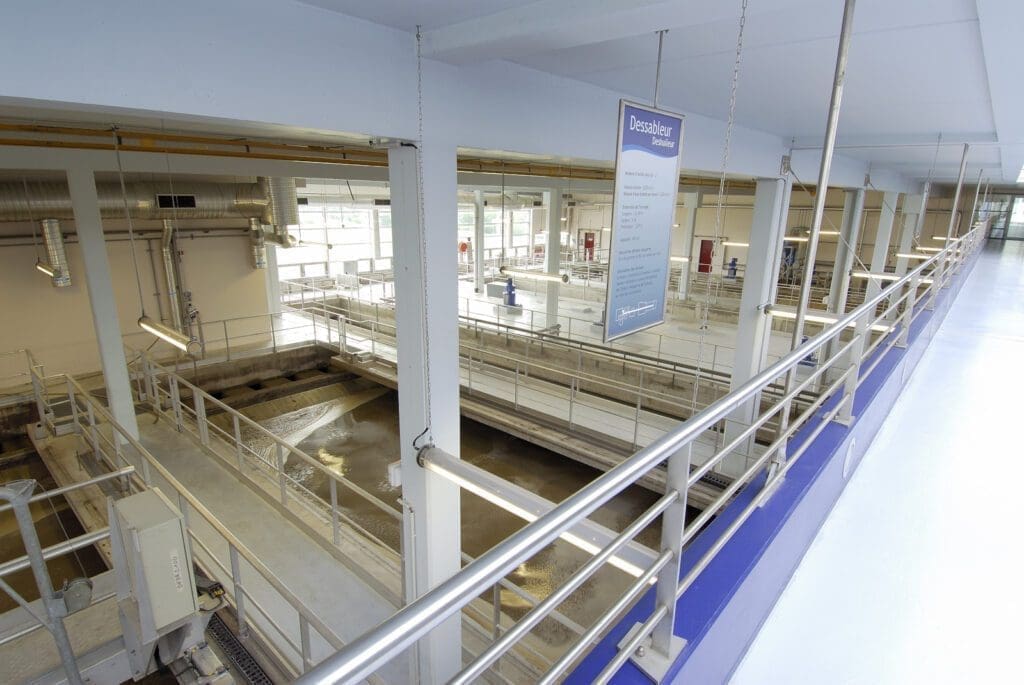

Sand filter, degreaser, settling and sludge treatment basins are the main operational zones for water treatment. Wastewater is progressively cleaned in these basins, removing increasingly fine materials, before the water is sent to a clarifier for final treatment.

The luminaires lighting up these areas, which are also passageways, must be particularly well sealed and robust, able to withstand the risk of explosion (ATEX) and humidity, and provide light in outdoor areas exposed to UV radiation and temperature variations. With this environment in mind, the switch to LED luminaires provides an opportunity to invest in equipment with an exceptional service life and limit the need for maintenance thanks to corrosion-proof housings, protecting the electronics from humidity over the long term.

Requirements

• ATEX
• Corrosion
• Humidity
• UV resistance

Recommended products

• Sabatier Xtrem

  Borosilicate glass tube ø133 for extreme or highly corrosive ATEX zone 1 atmosphere

• Boyle Xtrem

  Borosilicate glass tube ø100 and ø133 for extreme or highly corrosive ATEX zone 2, 21 and 22 atmospheres

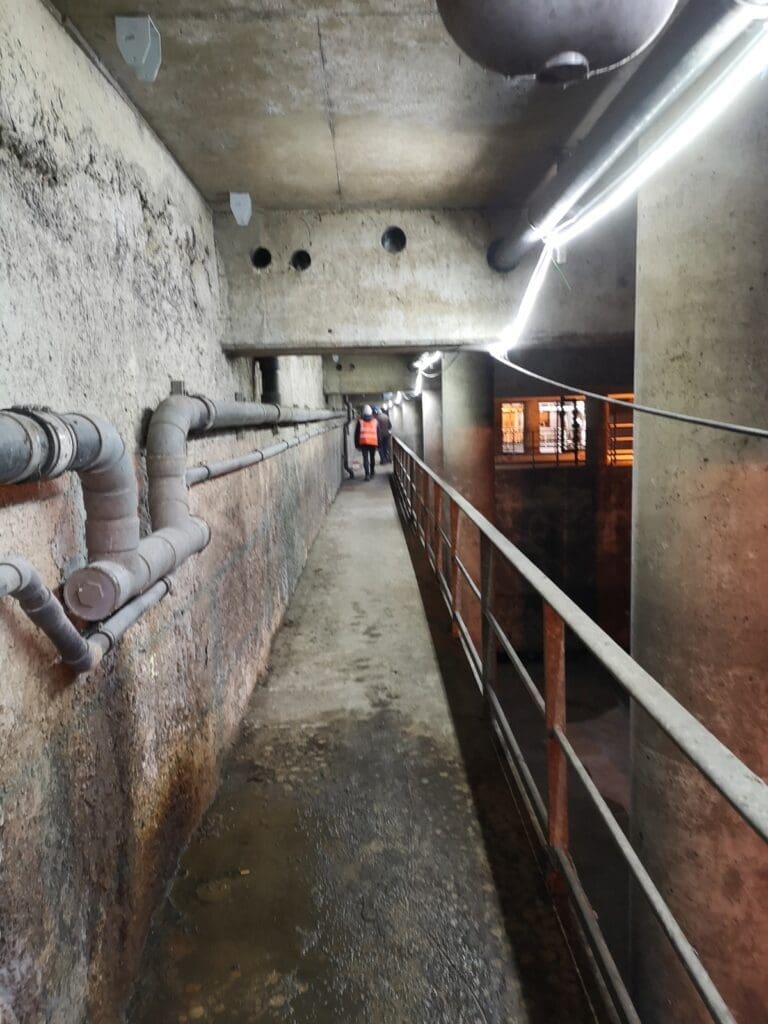

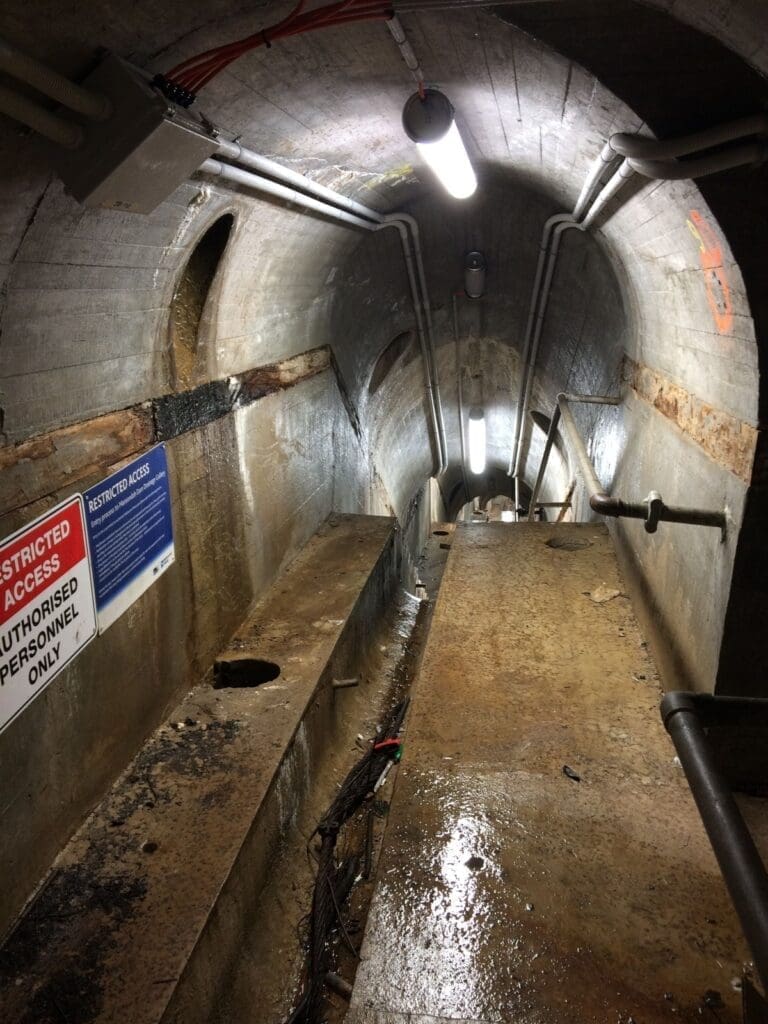

Personnel at wastewater treatment plants primarily use maintenance tunnels to move around indoor areas, but they are also used outdoors. Maintenance tunnels are used by personnel passing through, as is the case for clarifiers, which are the final wastewater treatment tanks where the water is subjected to centrifugal forces to remove sludge (captured at the bottom of the tank) and floating residues (which are progressively removed by pouring).

These zones must be equipped with efficient, solid and durable general lighting to guarantee smooth operation and staff safety. As in other areas in the wastewater treatment plants, it is recommended that robust emergency lighting is also installed, adapted to the constraints of the specific environment. Emergency lights designed to guide an evacuation in the event of a power outage could be installed, or alternatively replacement lighting models with a 3-hour life to guarantee that operations can continue.

Requirements

• Humidity
• Corrosion

Recommended products

• Cugnot Xtrem

  ø100 and ø133 tube light for extreme industrial atmospheres

• Coulomb

  Central source or independent emergency lighting

• Maxwell

  Central source or independent emergency lighting, permanent/non-permanent, for industrial environments

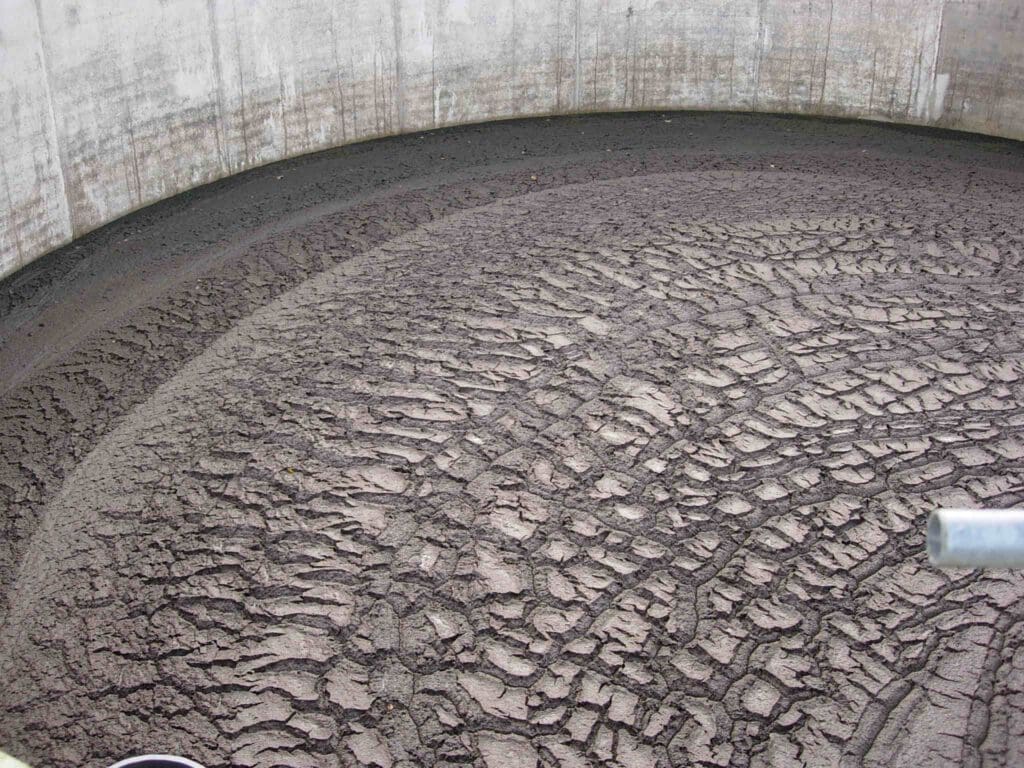

Sludge treatment areas and incinerators extend the treatment process for waste extracted from wastewater, by treating and drying sludge for future use as agricultural manure, and by burning sludge residues that cannot be treated. The luminaires installed near the incinerators must be able to withstand the very high temperatures reached by this equipment.

Sammode luminaires have been designed to withstand the most extreme conditions, including heat. Switching to LED luminaires represents an investment for the next half century, reducing energy bills considerably and drastically limiting the need for luminaire maintenance. In many cases, Sammode lighting will outlast the production site.

Requirements

• High temperatures (incinerators)
• Humidity
• Corrosion

Recommended products

• Cugnot Xtrem

  ø100 and ø133 tube light for extreme industrial atmospheres

• Joule X-Heat

  High temperature ø133 tube light for extreme industrial atmospheres

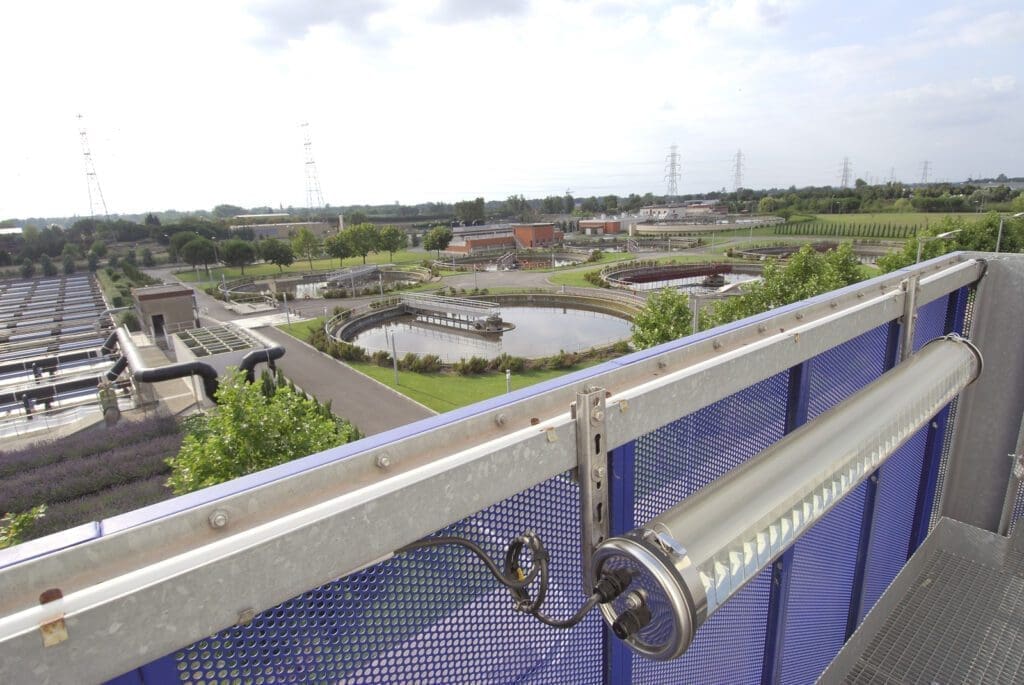

Like many industrial sites, the areas around wastewater treatment plants and water purification plants require suitable lighting to ensure the comfort and safety of personnel and to protect equipment.  While this type of lighting apparently faces less extreme conditions than lighting in other zones, the luminaires must withstand repeated exposure to bad weather, UV radiation and temperature variations in the long term.

On this basis, luminaires installed on the façades of buildings, but also floodlights on masts, must be designed to last to minimise maintenance and provide optimal lighting at all times.

Requirements

• Large surface areas
• Luminaire height
• Corrosion
• Resistance to UVs and bad weather

Recommended products

• Cugnot Xtrem

  ø100 and ø133 tube light for extreme industrial atmospheres

• Sill 48 Xtrem

  Industrial floodlight for lighting indoor and outdoor infrastructures in extreme environments
