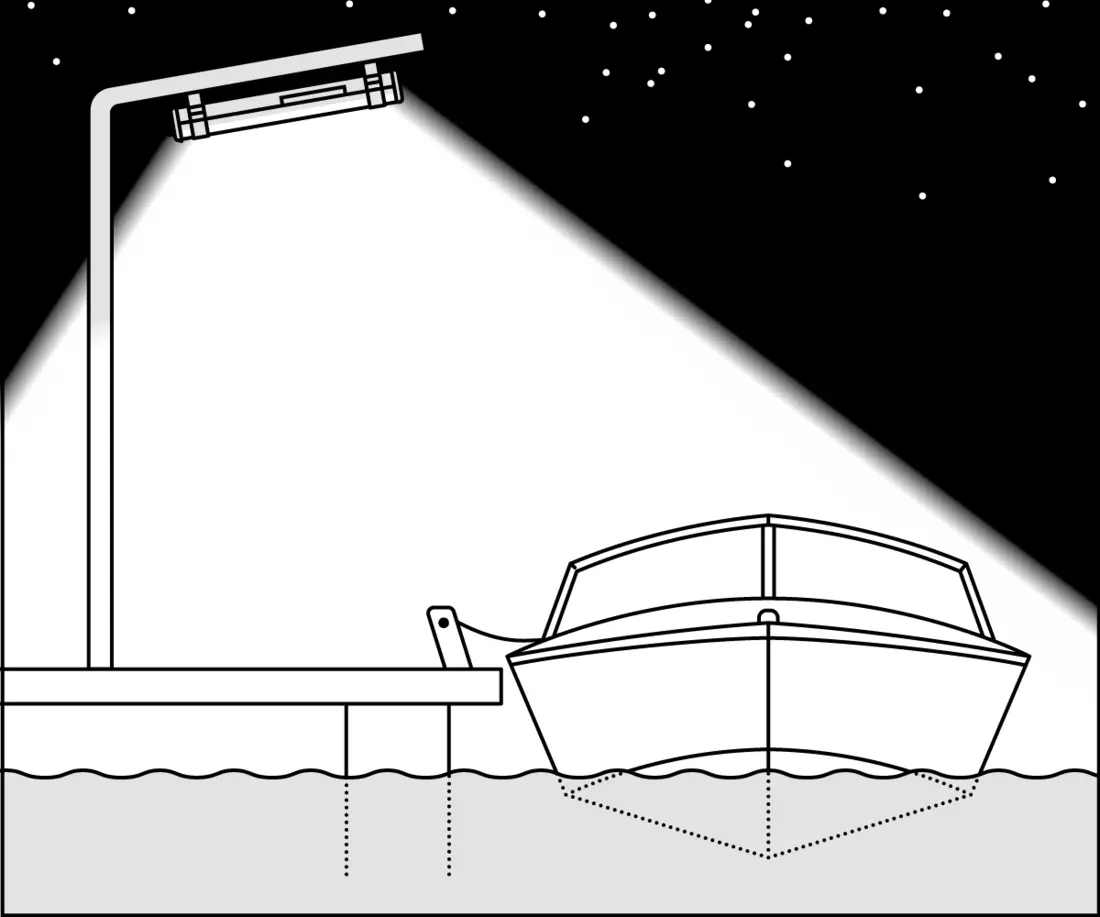

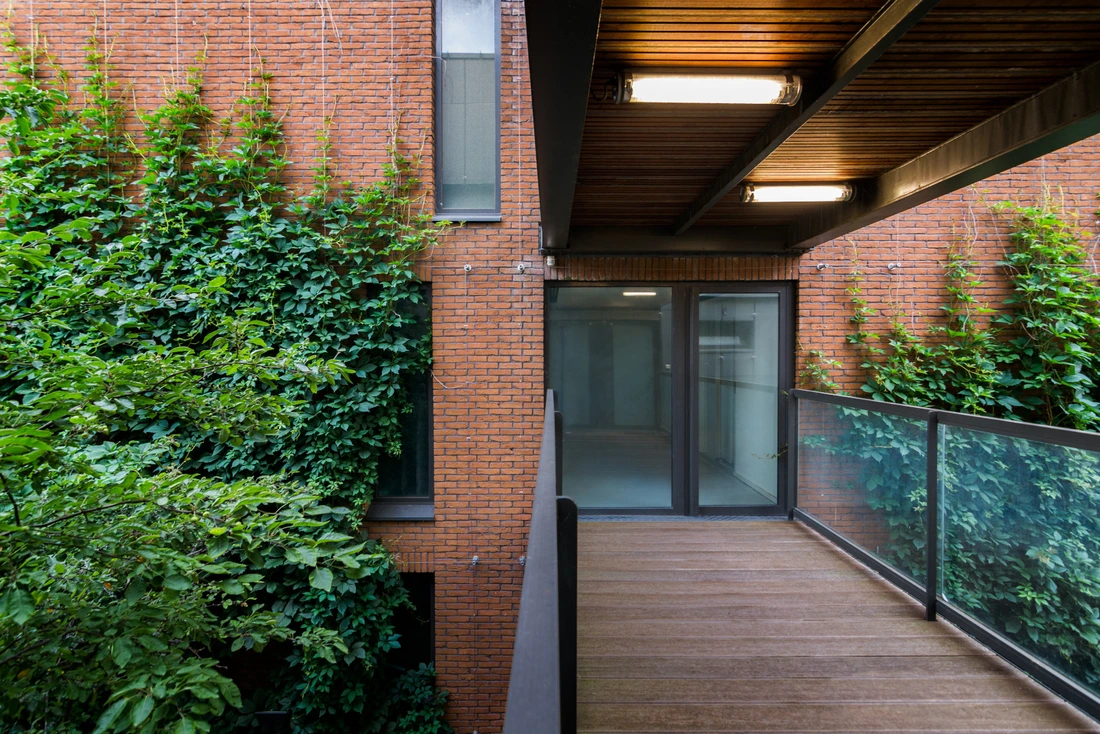

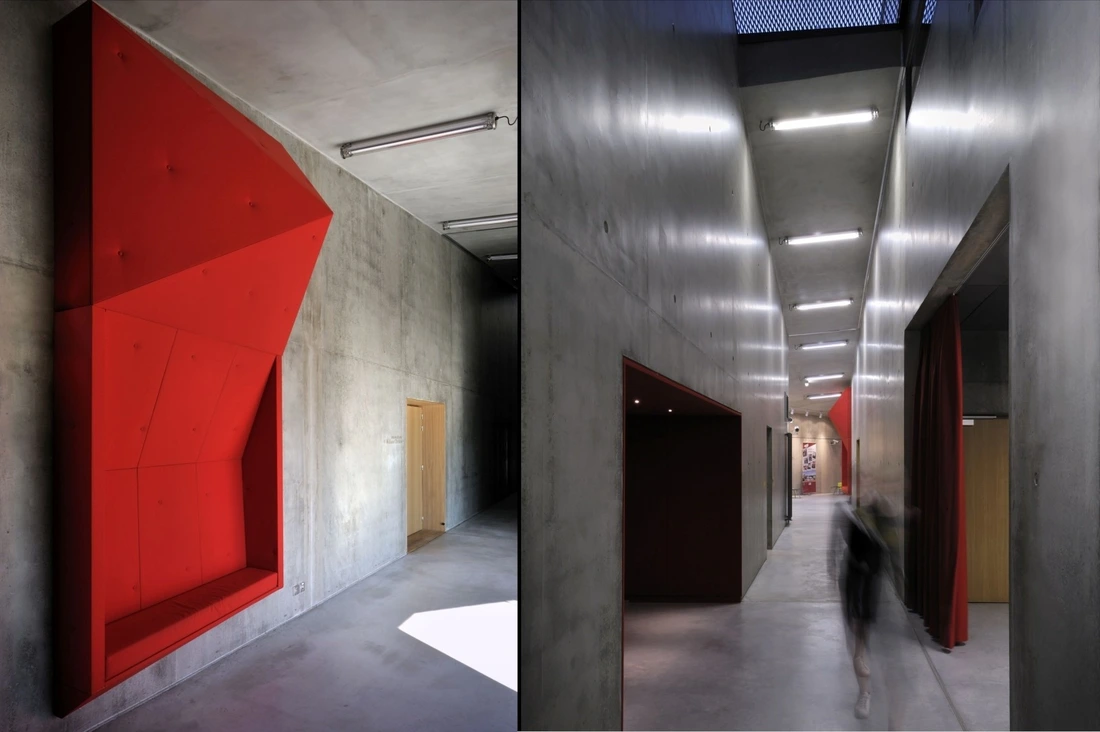

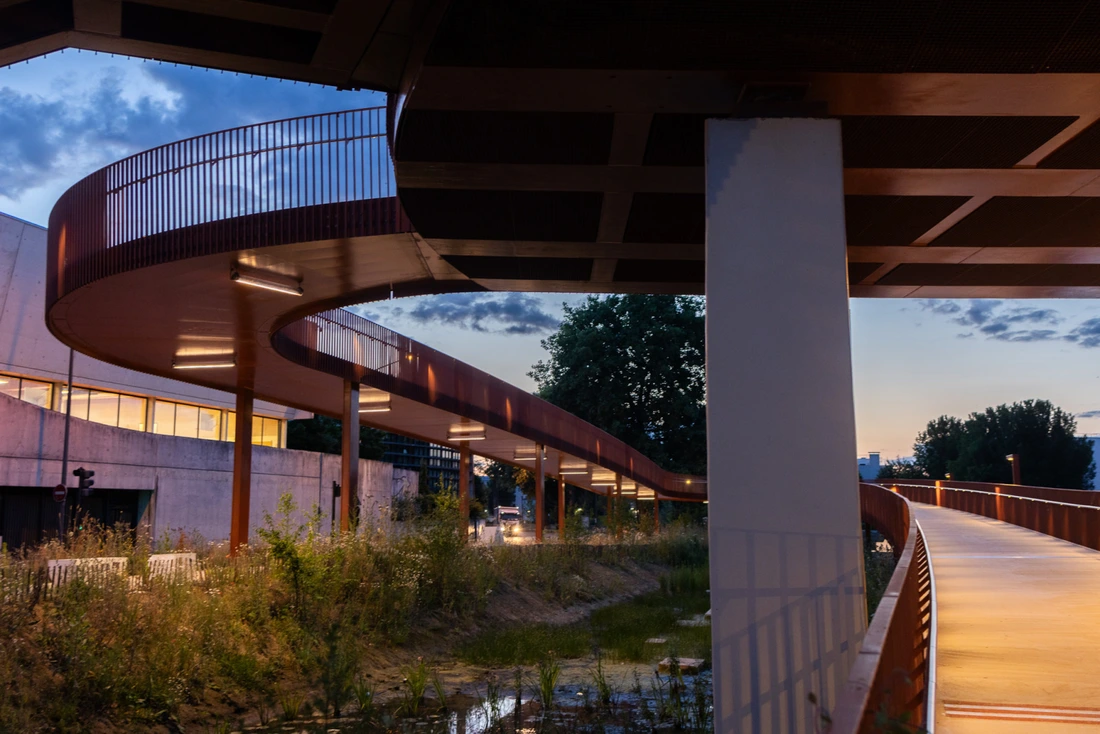

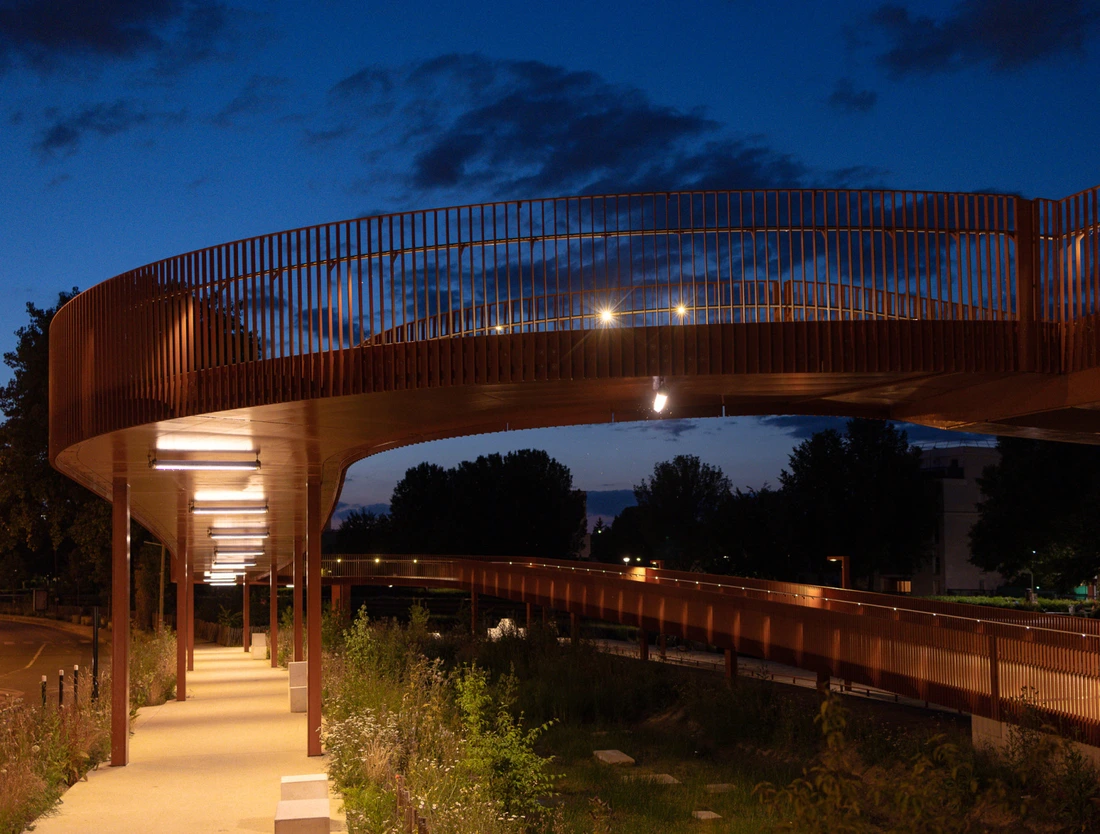

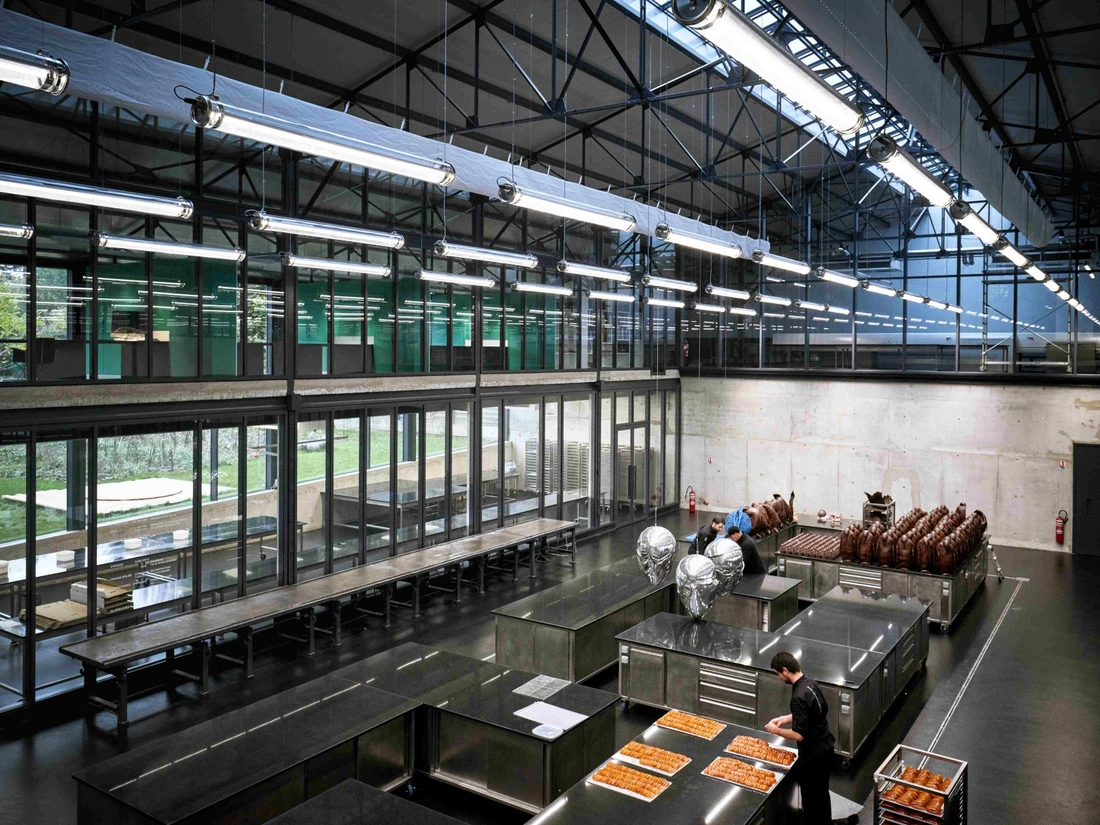

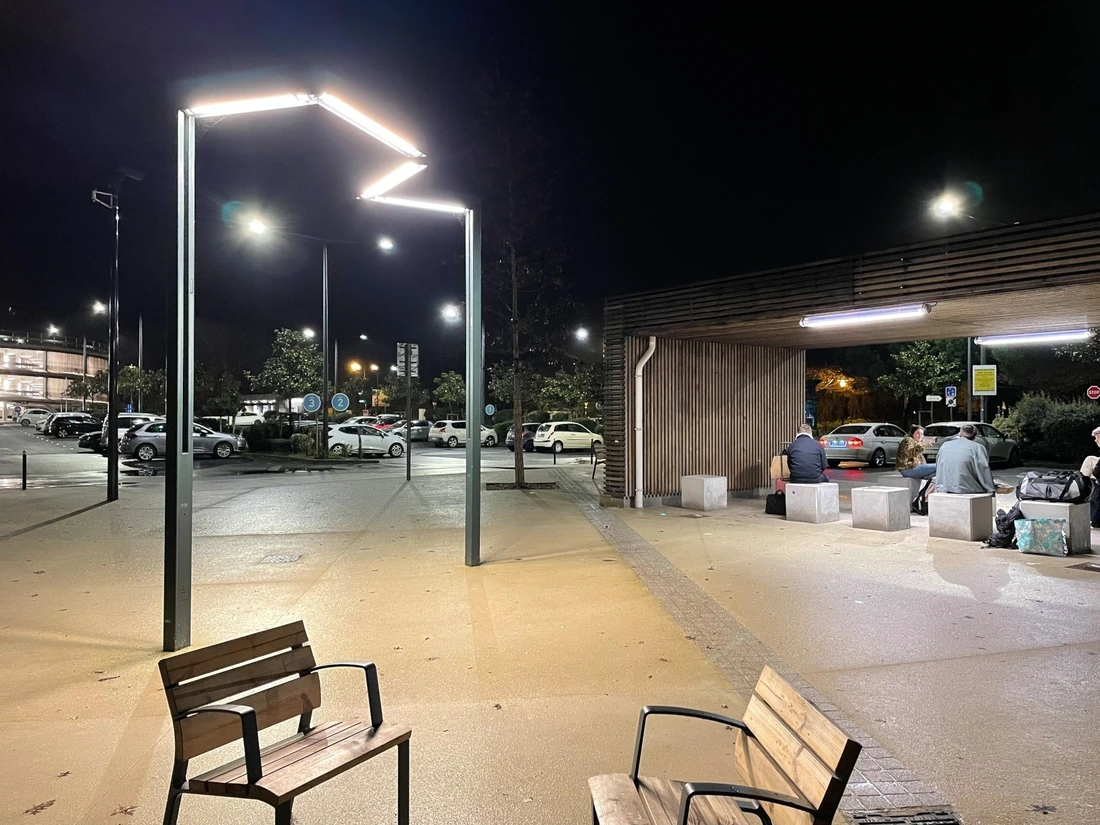

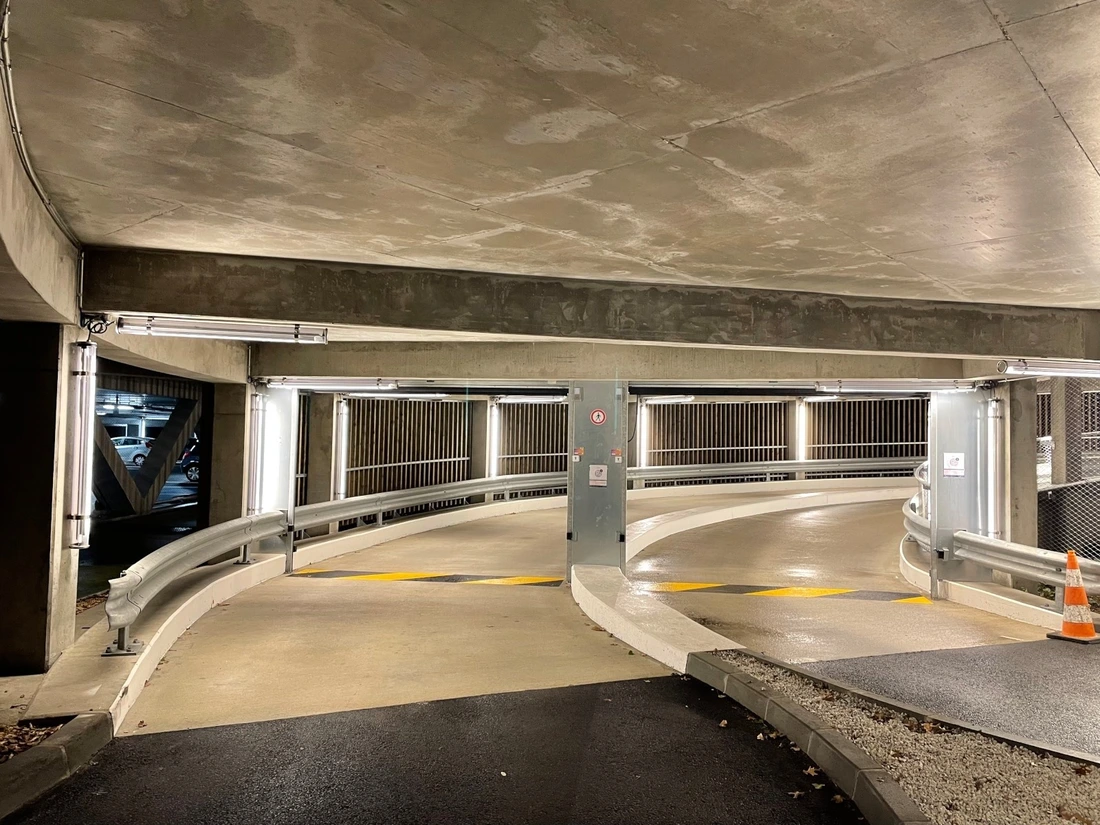

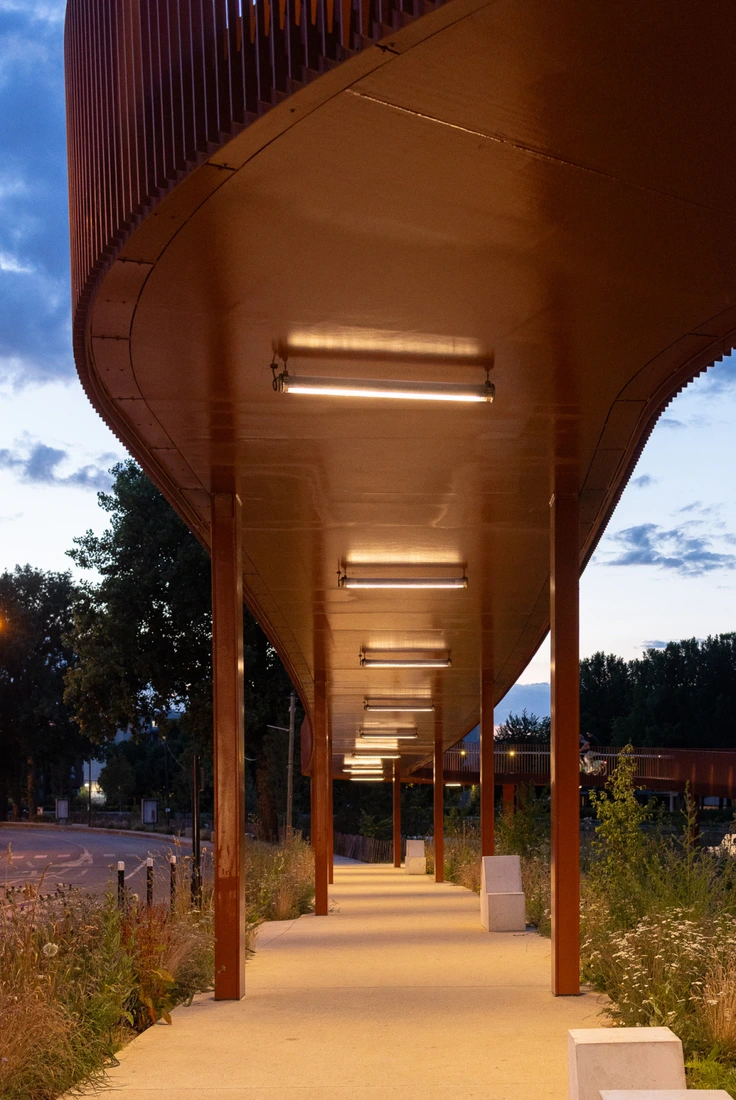

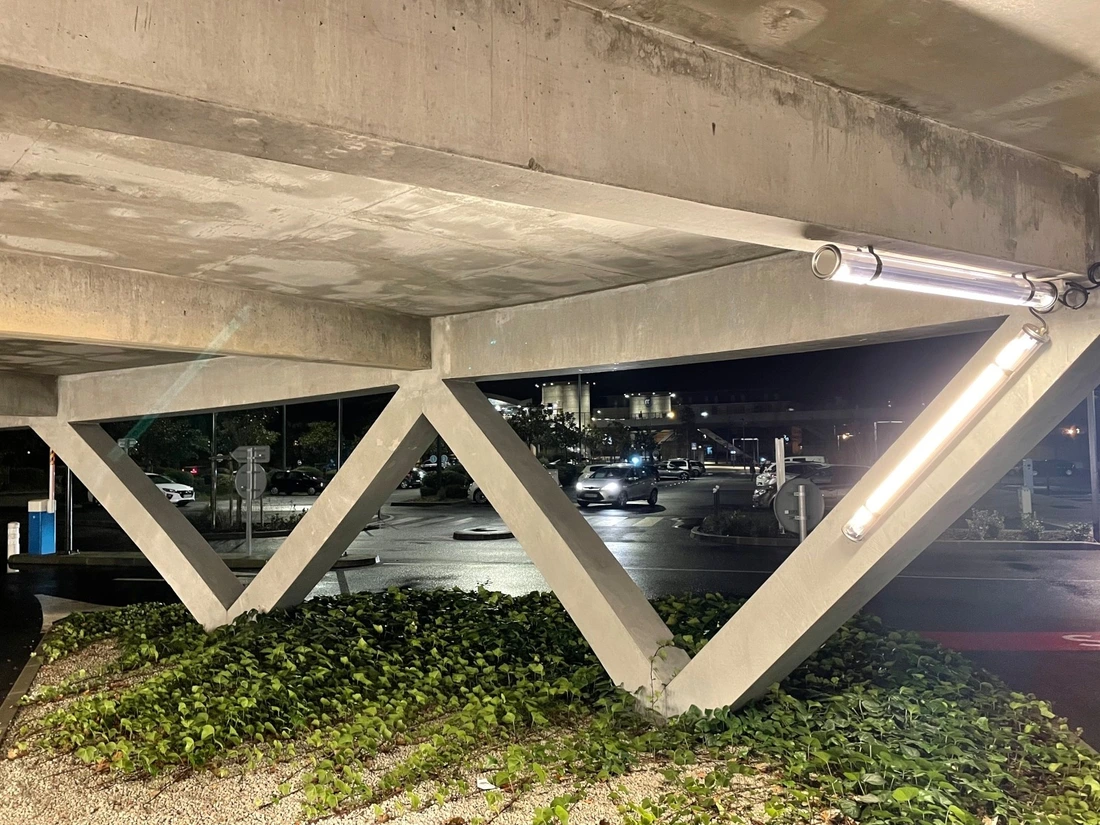

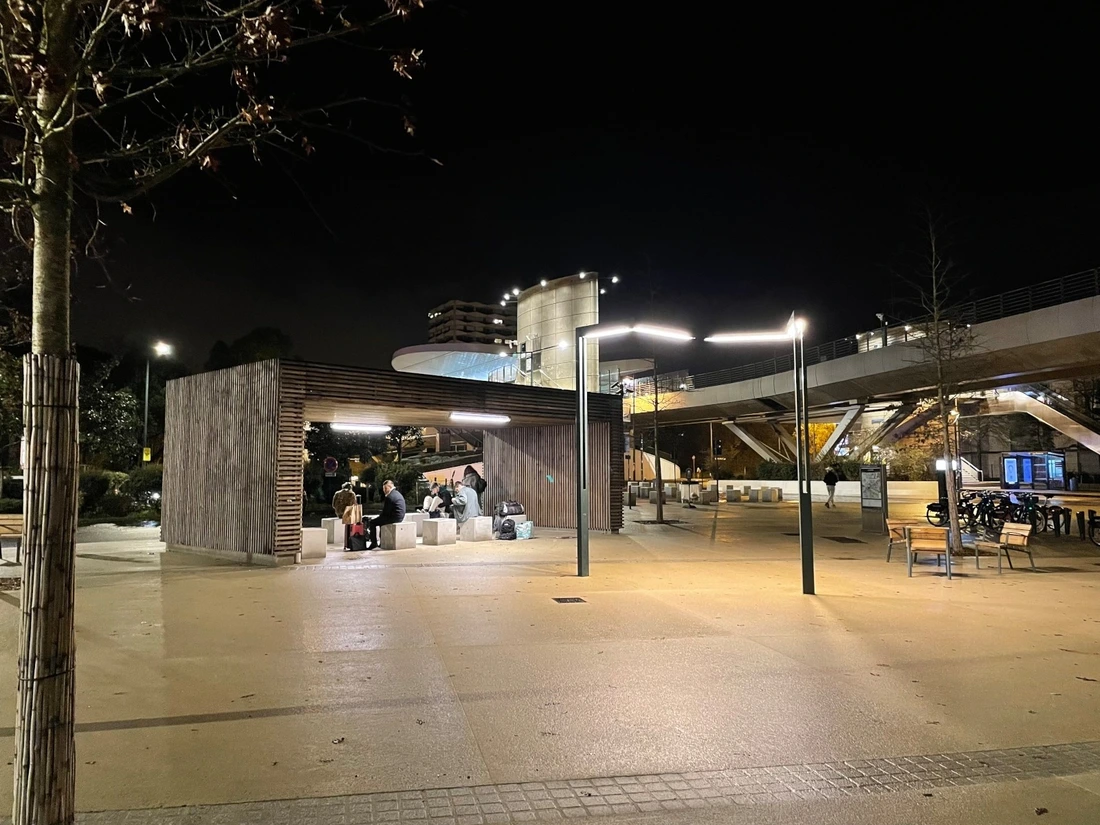

The Benson ceiling light can illuminate airport halls, station canopies, undercover markets, high walls in climbing rooms, maritime port docks, to name just a few applications.

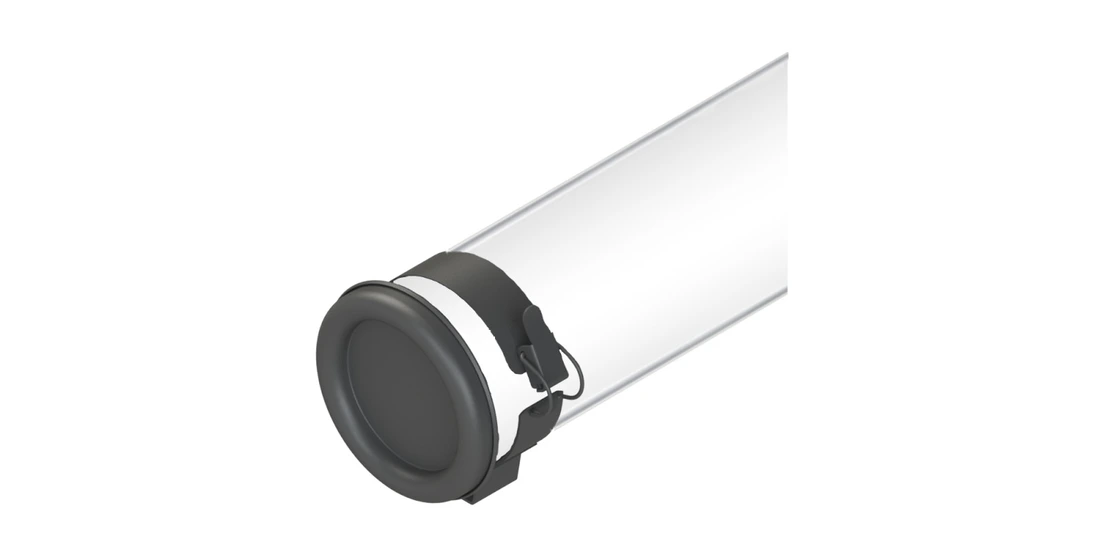

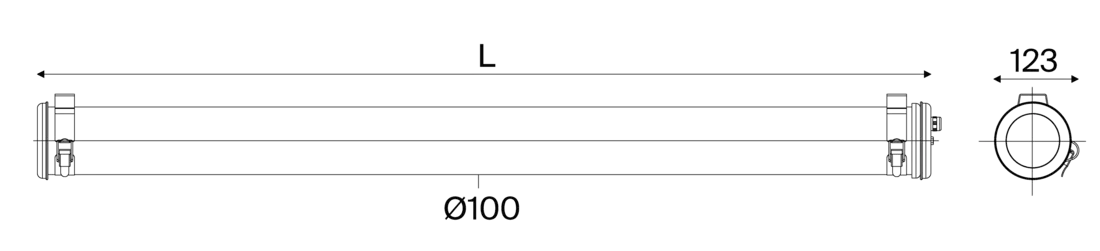

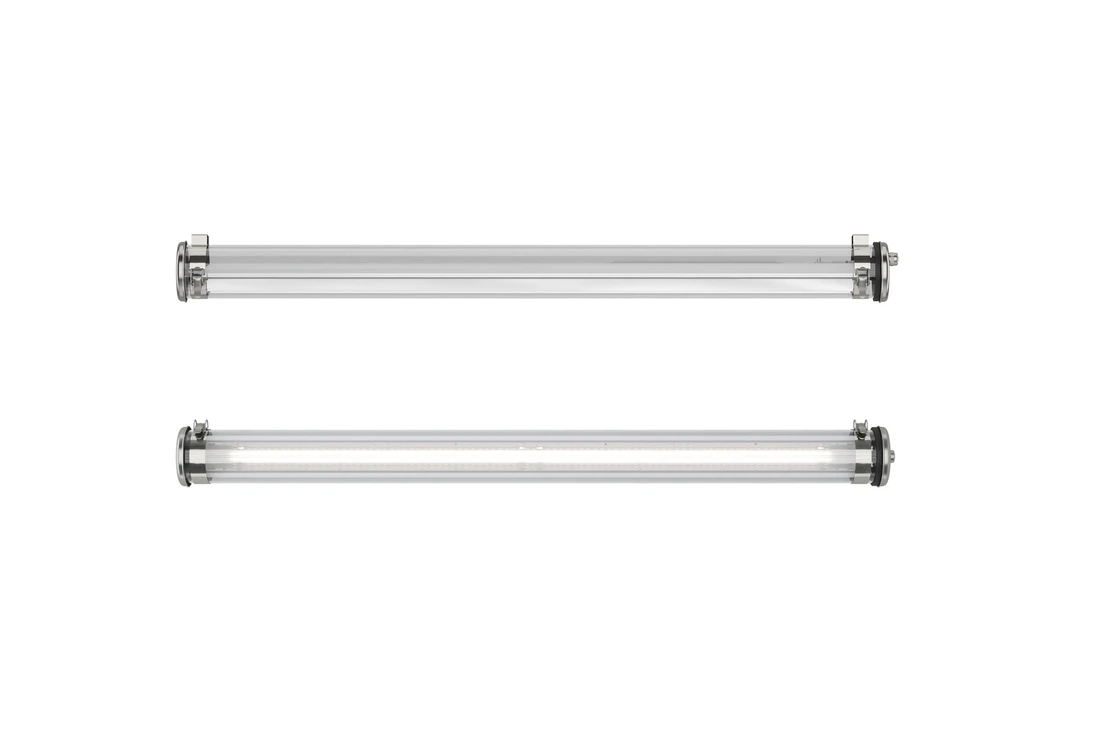

Directional ceiling light, pale body, ø100 and 133

Because some architectural spaces are worth more than a satin-finish tubular luminaire, Sammode launched the Benson fitting, a powerful LED tubular luminaire that stands out for its transparency and reflections. Its secret? An optimal luminous flux distribution, thanks to specific lighting features.

Access to product information

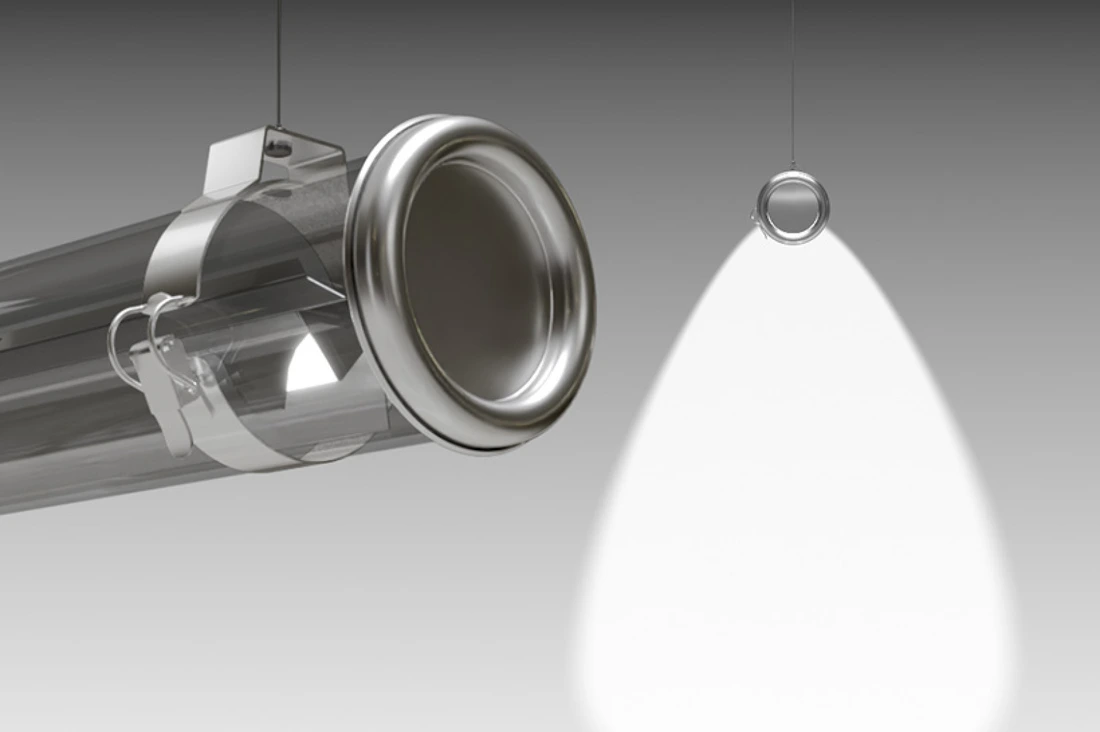

Light control

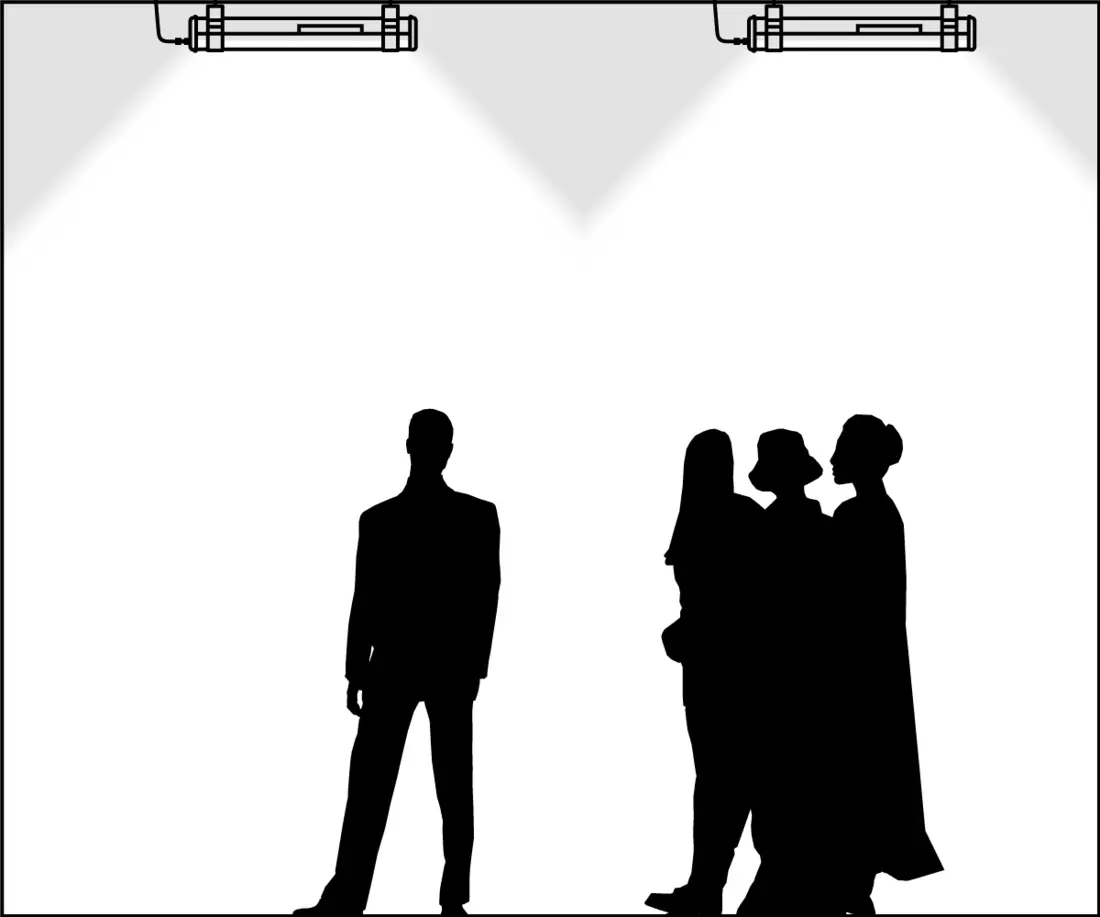

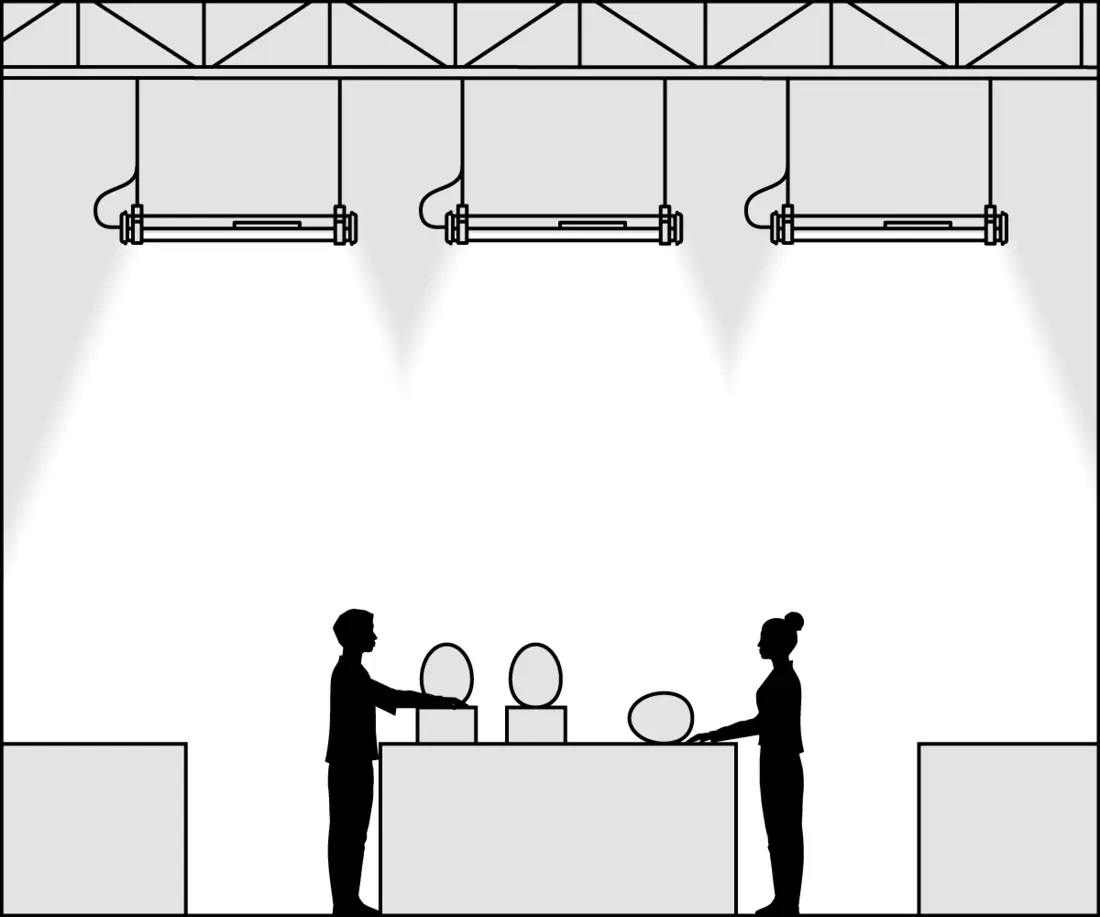

Sammode has developed an original lighting design combining lighting comfort and efficiency for the Benson model. By combining lighting features to reduce head-on intensity and high-performance reflectors, glare can be reduced (UGR < 25) and light pollution limited (ULR = 0%). Sammode has developed an original lighting design combining lighting comfort and efficiency for the Benson model. Combining a lighting system to limit the intensity of the luminous flux in the vertical direction, with high-performance reflectors, this distributes the light more widely. This approach reduces glare (UGR < 25) and light pollution (ULR = 0%).

Style and performance for all spaces

Configure the ideal luminaire thanks to 2 diameters, 4 lengths, 2 power levels and a whole range of finishes for each space, depending on architectural preferences and the requirements of standards. This unique lighting system combined with the performance of the selected LED modules make Benson one of the most efficient and multipurpose tubular luminaires on the market.

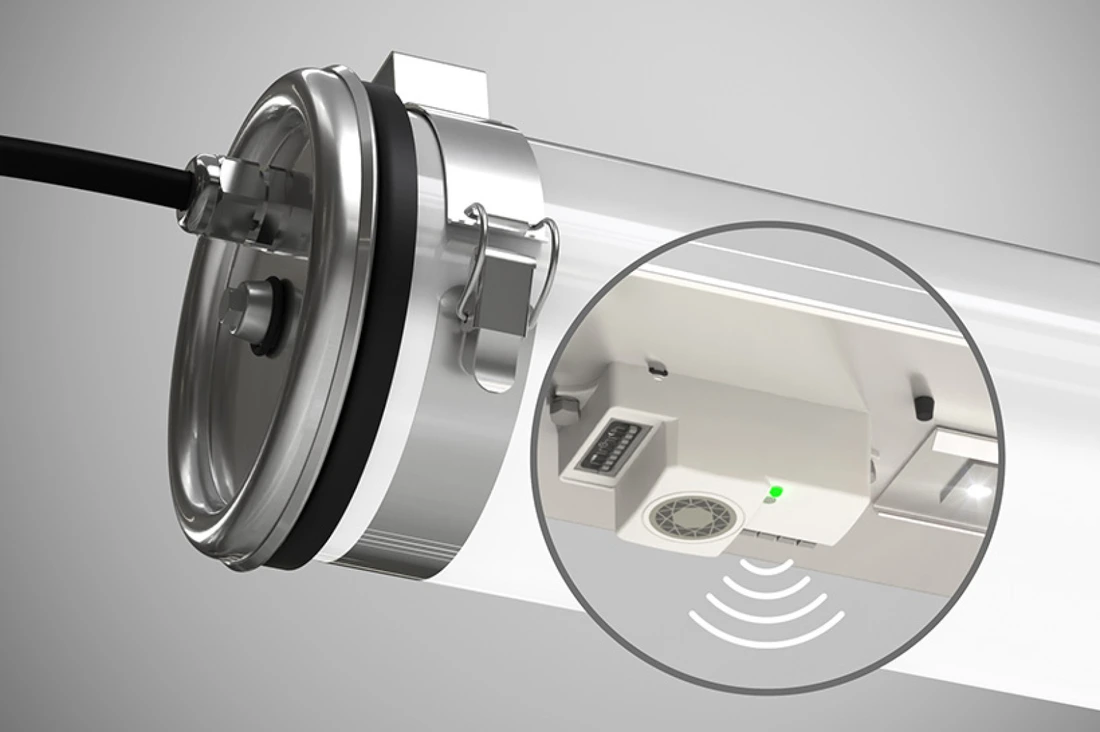

Smart lighting

Our lighting management options are selected specifically for their durability and reliability, meaning your luminaires are easy to control. With DALI 2 or Bluetooth Casambi dimming options, switch-off warning function, motion sensors and the like, Sammode ensures you benefit from the light you need when you need it, with products that stand the test of time, which is great for both customers and the environment.

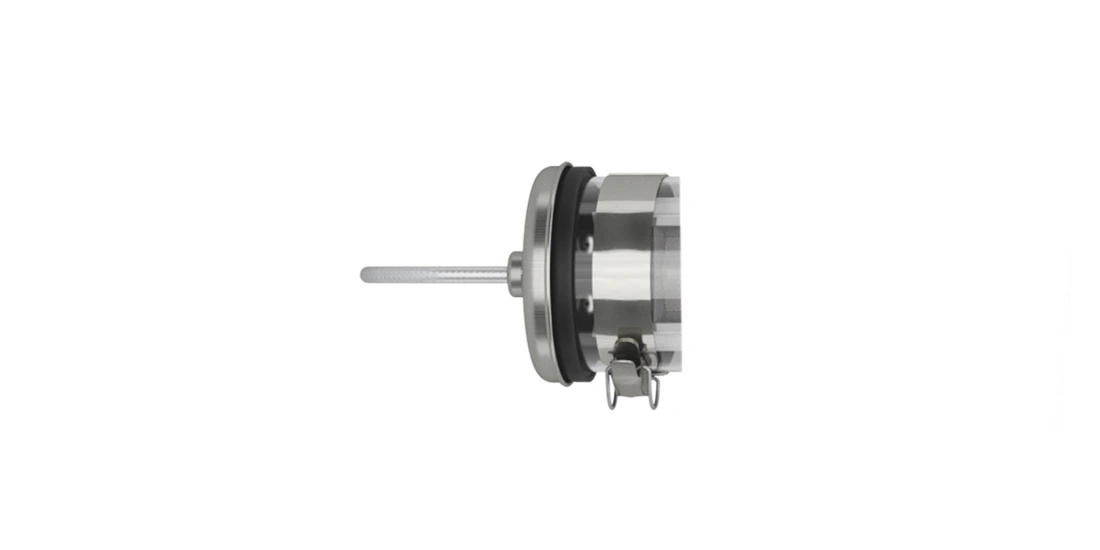

Designed to last

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, applied here to the Benson. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of UV radiation and vandalism.

Upgradeable

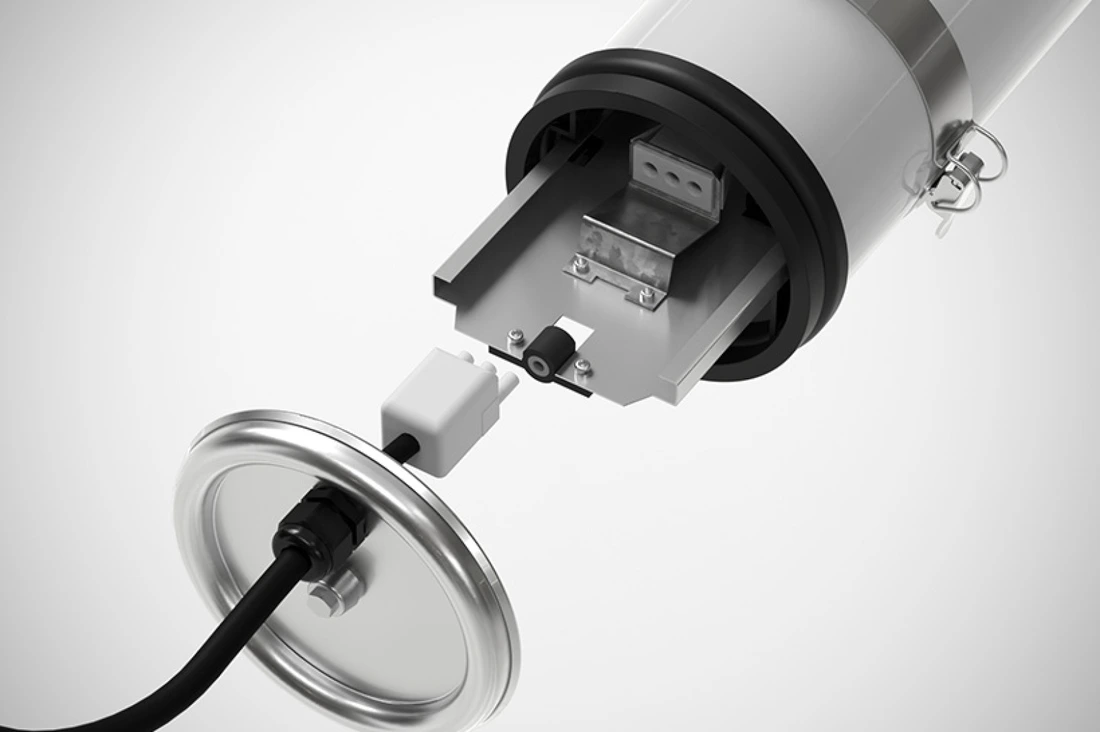

Your Benson luminaire is easy to connect thanks to its patented smart sliding gear tray (SLIDE© system). This model is quick to install and easy to upgrade. The housing can contain and protect any future technological developments when you decide to take the next step.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 8-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Comfortable versions

ø100

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 1600 708 BENSON 100 S 700 1600-830 42075060 14 Data sheet Plan STEP DS .TXT Download all
3000 2400 1018 BENSON 100 S 1000 2400-830 42075058 22 Data sheet Plan STEP DS .TXT Download all
3000 3200 1318 BENSON 100 S 1300 3200-830 42075059 28 Data sheet Plan STEP DS .TXT Download all
3000 4000 1618 BENSON 100 S 1600 4000-830 42075056 34 Data sheet Plan STEP DS .TXT Download all
4000 1600 708 BENSON 100 S 700 1600-840 42075061 14 Data sheet Plan STEP DS .TXT Download all
4000 2400 1018 BENSON 100 S 1000 2400-840 42075062 22 Data sheet Plan STEP DS .TXT Download all
4000 3200 1318 BENSON 100 S 1300 3200-840 42075055 28 Data sheet Plan STEP DS .TXT Download all
4000 4000 1618 BENSON 100 S 1600 4000-840 42075063 34 Data sheet Plan STEP DS .TXT Download all

Reinforced versions

ø100

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 2300 708 BENSON 100 S 700 2300-830 42075163 20 Data sheet Plan STEP DS .TXT Download all
3000 3450 1018 BENSON 100 S 1000 3450-830 42075150 29 Data sheet Plan STEP DS .TXT Download all
3000 4600 1318 BENSON 100 S 1300 4600-830 42075152 38 Data sheet Plan STEP DS .TXT Download all
3000 5750 1618 BENSON 100 S 1600 5750-830 42075151 47 Data sheet Plan STEP DS .TXT Download all
4000 2300 708 BENSON 100 S 700 2300-840 42075265 20 Data sheet Plan STEP DS .TXT Download all
4000 3450 1018 BENSON 100 S 1000 3450-840 42075327 29 Data sheet Plan STEP DS .TXT Download all
4000 4600 1318 BENSON 100 S 1300 4600-840 42075224 38 Data sheet Plan STEP DS .TXT Download all
4000 5750 1618 BENSON 100 S 1600 5750-840 42075357 47 Data sheet Plan STEP DS .TXT Download all

Comfortable versions

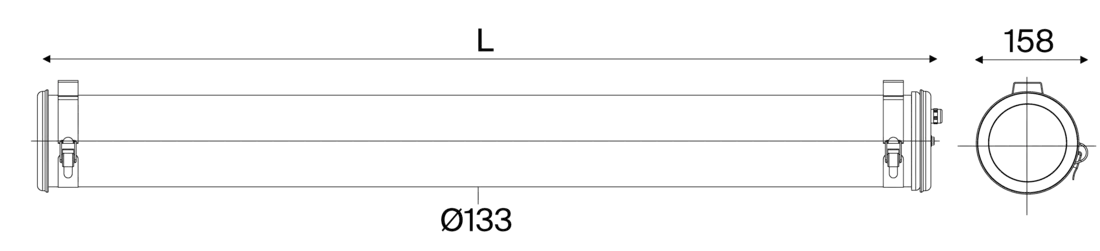

ø133

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 4800 995 BENSON 133 S 1000 4800-830 43045012 50 Data sheet Plan STEP DS .TXT Download all
3000 6400 1295 BENSON 133 S 1300 6400-830 43045013 63 Data sheet Plan STEP DS .TXT Download all
4000 4800 995 BENSON 133 S 1000 4800-840 43045015 50 Data sheet Plan STEP DS .TXT Download all
4000 6400 1295 BENSON 133 S 1300 6400-840 43045016 63 Data sheet Plan STEP DS .TXT Download all
4000 8000 1595 BENSON 133 S 1600 8000-840 43045017 79 Data sheet Plan STEP DS .TXT Download all
3000 8000 1595 BENSON 133 S 1600 8000-830 43045014 79 Data sheet Plan STEP DS .TXT Download all

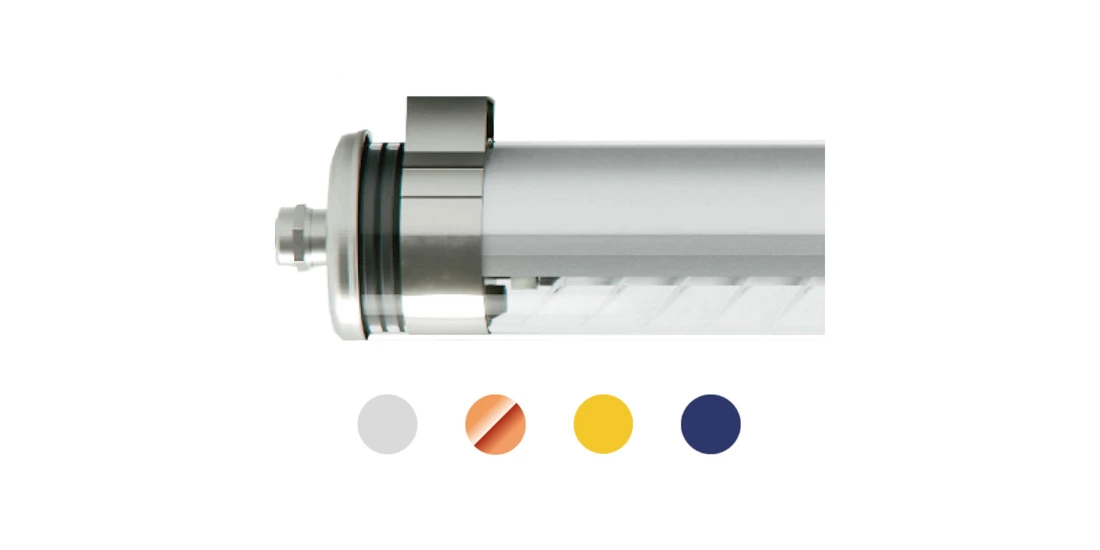

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

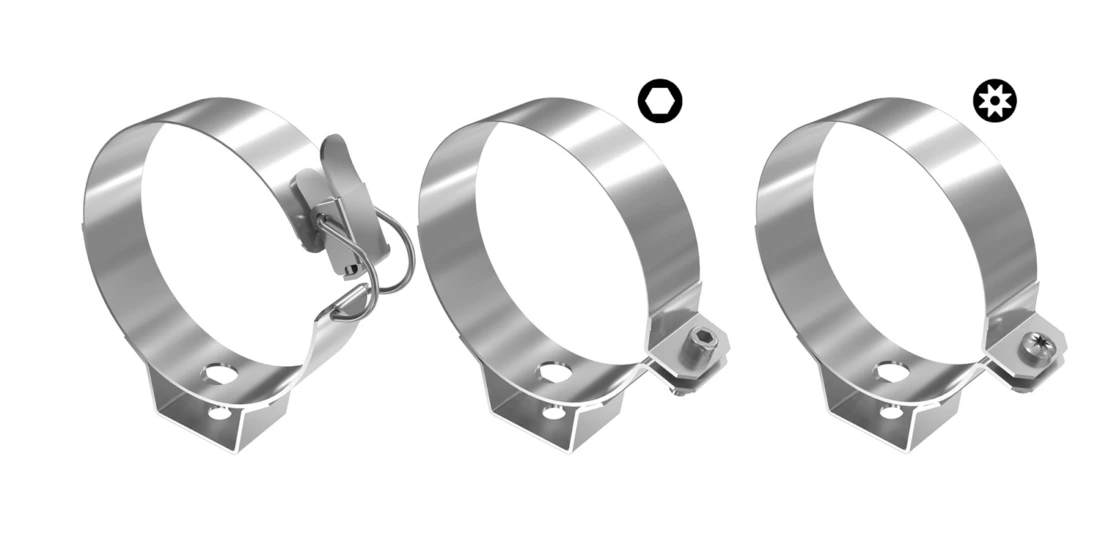

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV
Fixing straps with tamper-resistant Torx screw BRVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC
Casambi Bluetooth control RB

Presence sensor

Built-in presence sensor (length increased by 85mm) SI

Electrical class

Class I CL1
Class II -
Stainless steel cable plate kit (IP40) 17500020

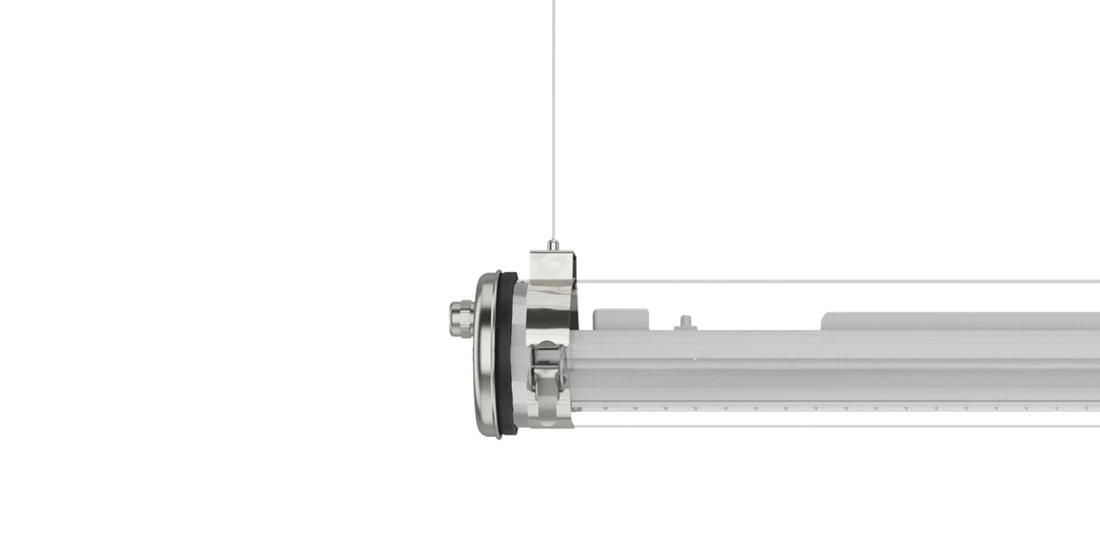

Horizontal suspension kit (3m ropes) 17500050
Pre-cabling 3m 3G1.5 (3 wires) Braided tinned copper cable CAB0008
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Extensive reflector in mirror-finish aluminium
  • Specific satin-finish primary diffuser optics reducing axial intensity
Lighting comfort
  • Brightness control
  • Transversal glare control : 25° in Ø100, 10° in Ø133
  • Controlled glare: UGR ≤25 for comfortable versions
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class II
Operating temperature
  • -25°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-14 mm
  • To a 3 x 2,5 mm² disconnectable terminal block
Opening and closing
  • Quick, with just one screw
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Patended sliding maintenance system
  • Easily removable LED modules and driver

Housing
  • Ø100 and 133 Co-extruded polycarbonate/PMMA for inside/outside use
End caps and fixing straps
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

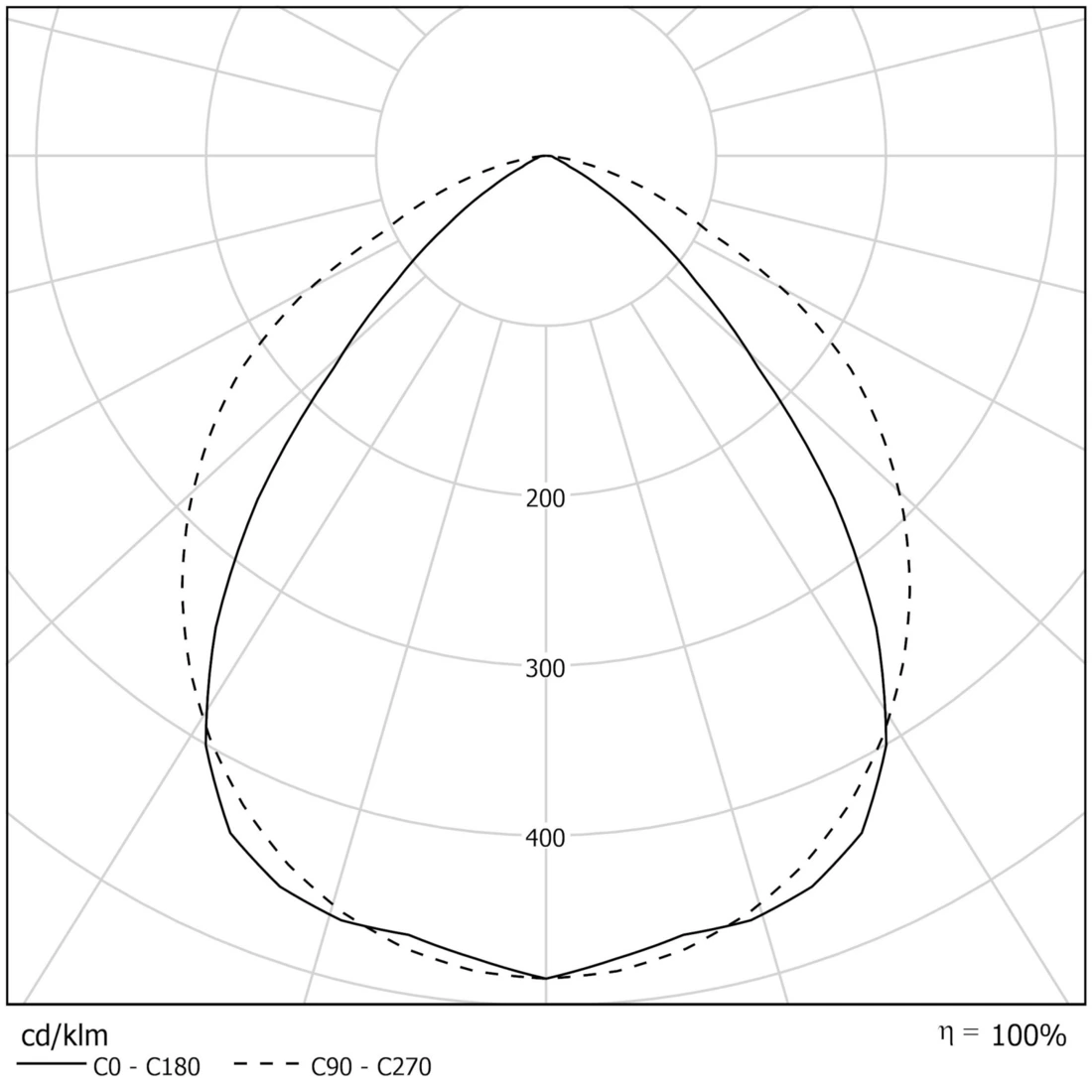

Benson 100 ULR = 0% FC3 = 99%
