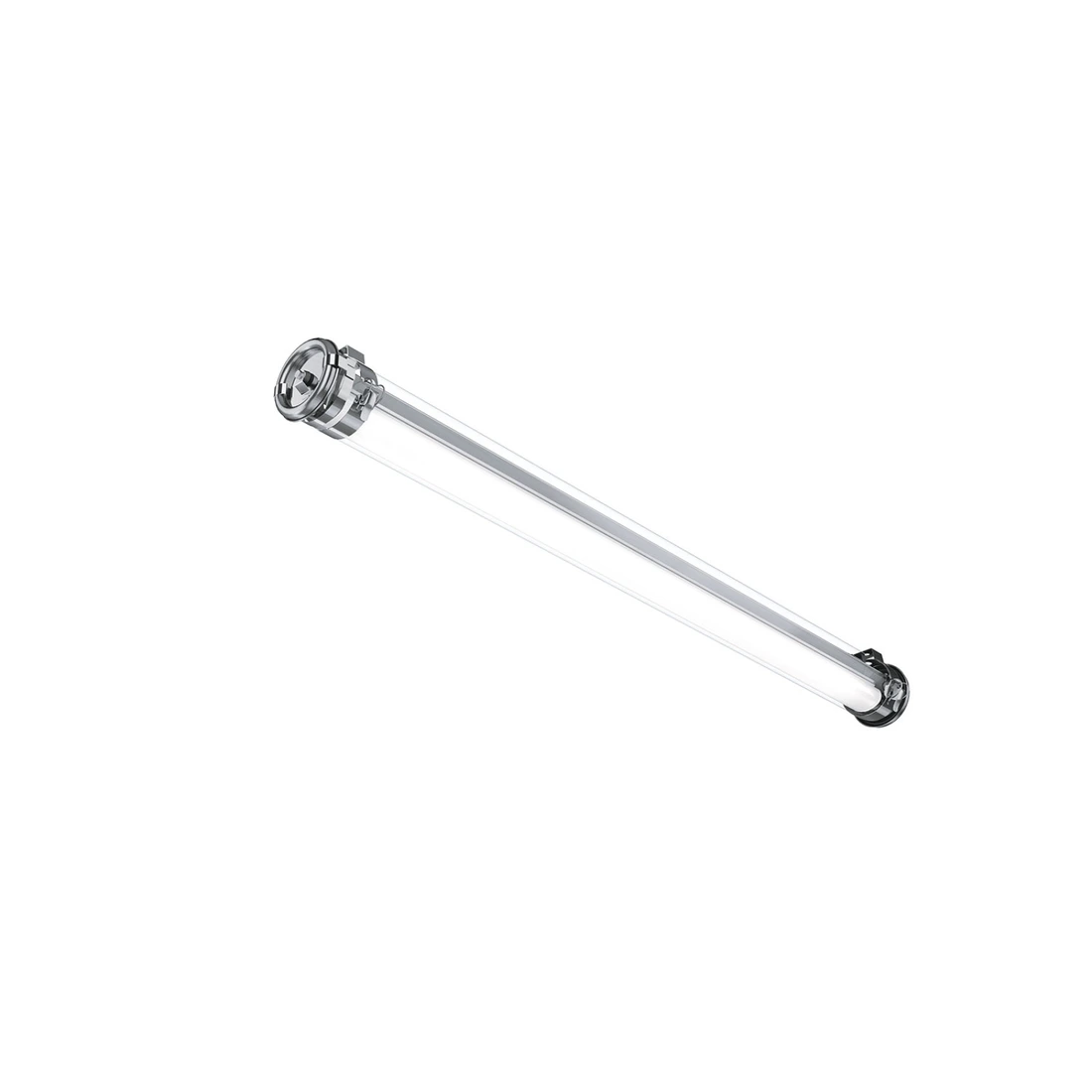

Borosilicate glass tubular light ø 100 & 133 for extreme or highly corrosive ATEX environments, zones 2, 21 & 22

The BOYLE luminaire is designed for the most extreme environments, making it the safest option on the market for ATEX zones 2, 21 & 22. This fixture comes with optimal sealing and solidity thanks to its single-piece design housing electronics able to withstand the highest temperatures and at-risk electrical networks.

The BOYLE Xtrem luminaire can withstand the most extreme industrial conditions.

Chemical and sealing conditions

Dust and extreme grime All types of humidity Washing with a high-pressure jet Health and safety requirements according to IFS, BRC and HACCP texts Corrosive substances, acid vapours Oils & hydrocarbons UV radiation and bad weather

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 50°C

Extreme variation in temperature

Repeated turning on and off

Mechanical impacts Intense and repetitive vibrations

Voltage surges up to 4 kV, power surges

Optimal sealing and safety, even with intensive use at 50°C

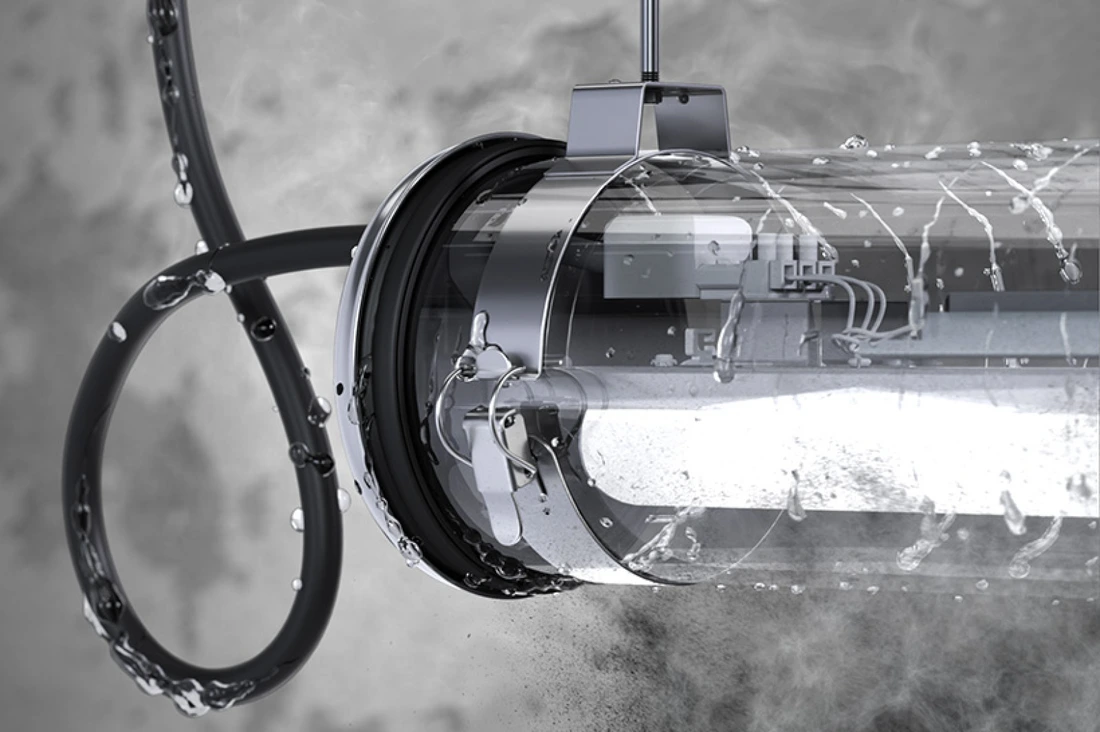

Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

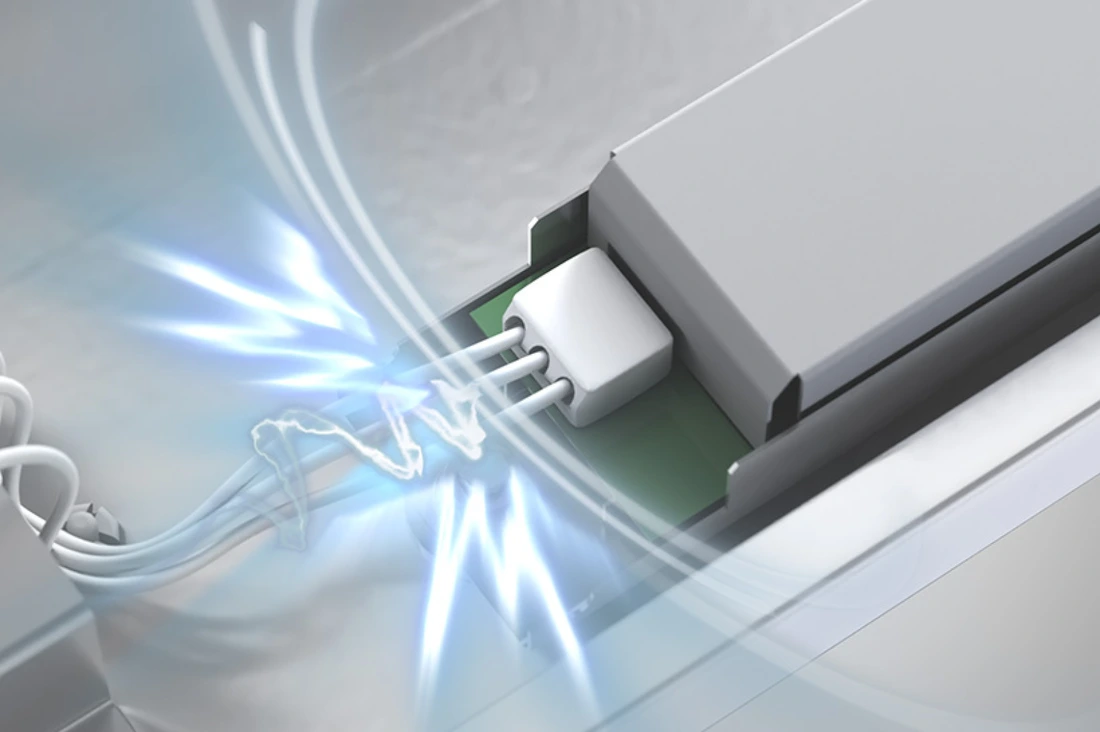

Reinforced industrial electronics

Even the very best housing cannot stand up to the potential effects of an at-risk network. With this in mind, Sammode has opted for the most reliable components available, designed to withstand electrical disturbance, voltage surges, extensive temperature variation and vibrations.

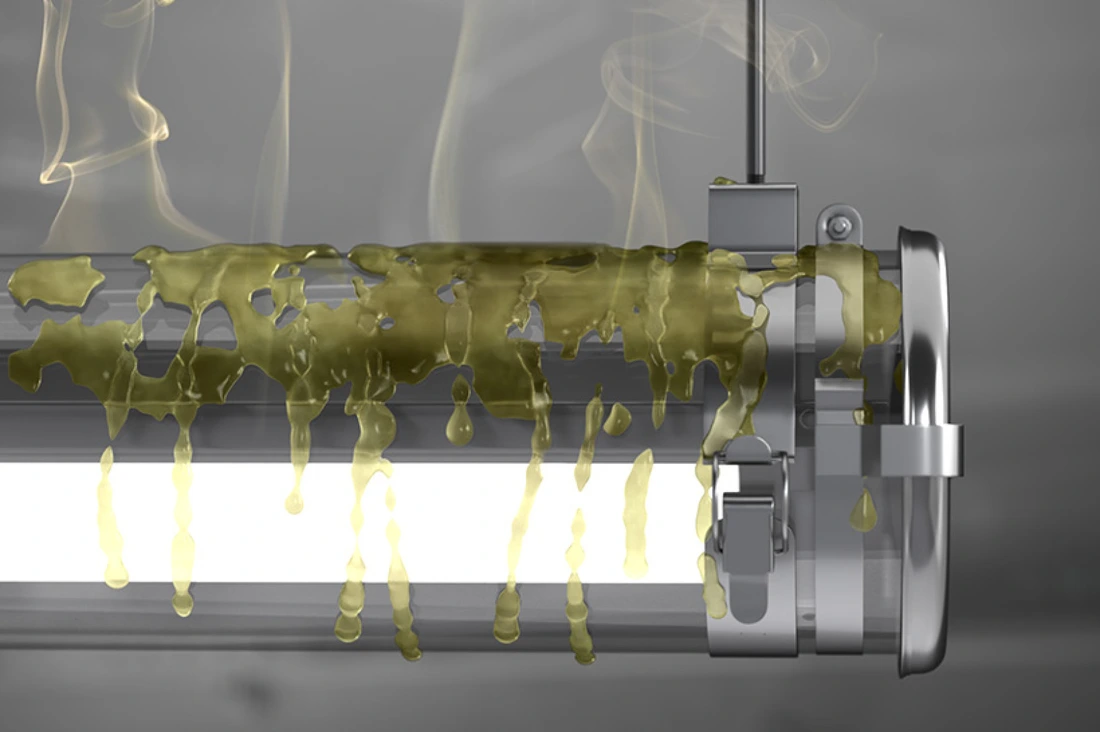

Unfailing chemical resistance

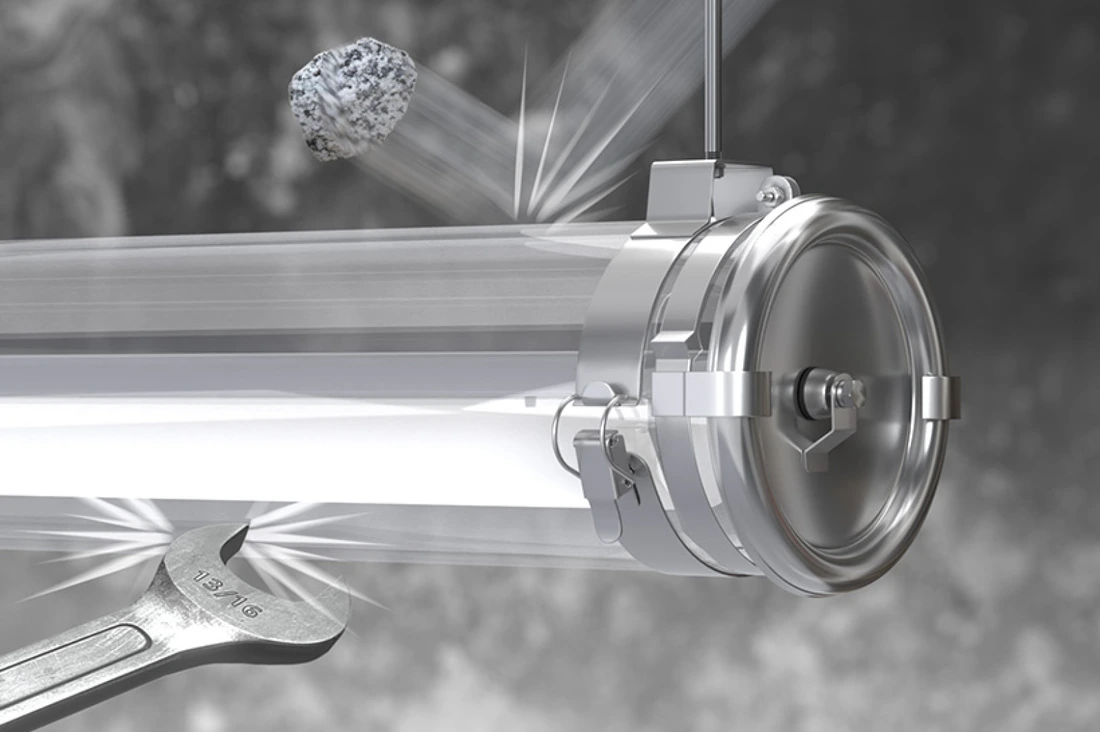

Benefit from exceptional durability, no matter how tough the conditions, thanks to a corrosion- and abrasion-proof housing, comprising reinforced stainless steel mechanical parts and a borosilicate glass diffuser (IK07) A version with a co-extruded Polycarbonate-PMMA diffuser (IK10) is also available.

Resistant to impacts and vibrations

Solid, smooth materials with no mating surfaces, combined with a locking system based on axial tightening (the Screw© system): simple principles for exceptional mechanical strength and a vibration-proof single-piece design, no matter how intense things get.

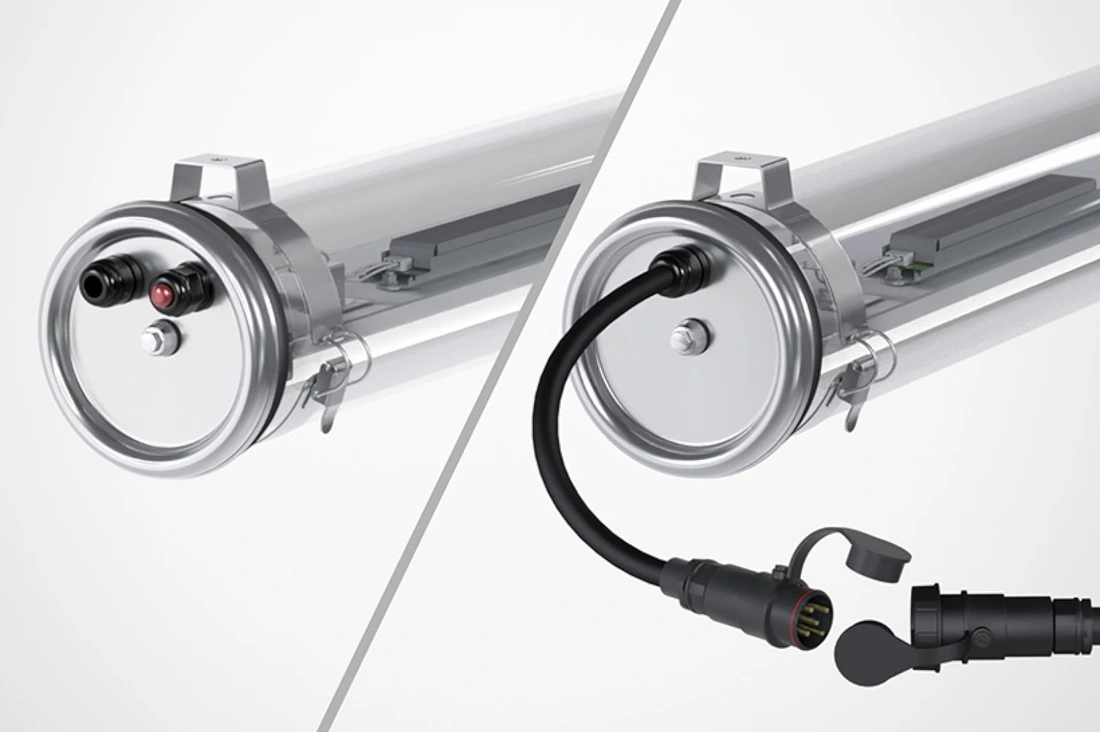

Easy to install

Sammode offers models with 2 cable glands, compatible with internal connections, or pre-cabled models with a pluggable ATEX lead for quick installation with no risk of losing parts. We also recommend our emergency lighting options with a back-up unit and built-in one-hour lithium-ion batteries.”

Applications of luminaires by the name Boyle Xtrem

  • Steelworks: turbine halls

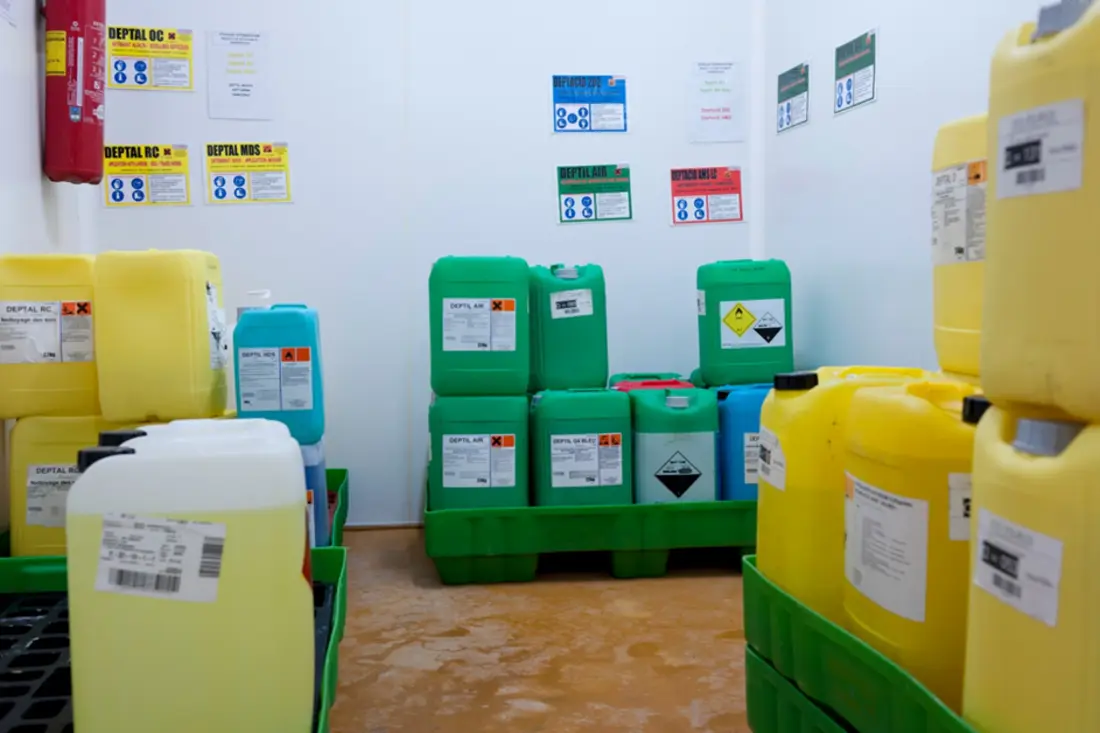

  • Paper mills: chemical storage areas

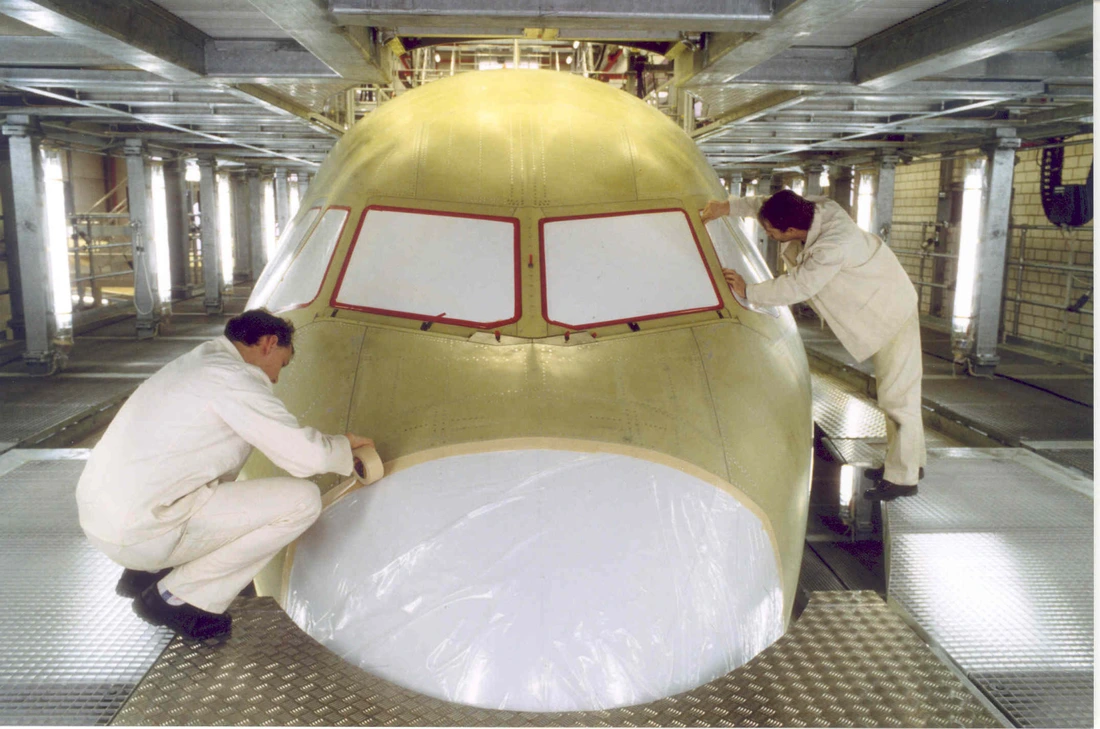

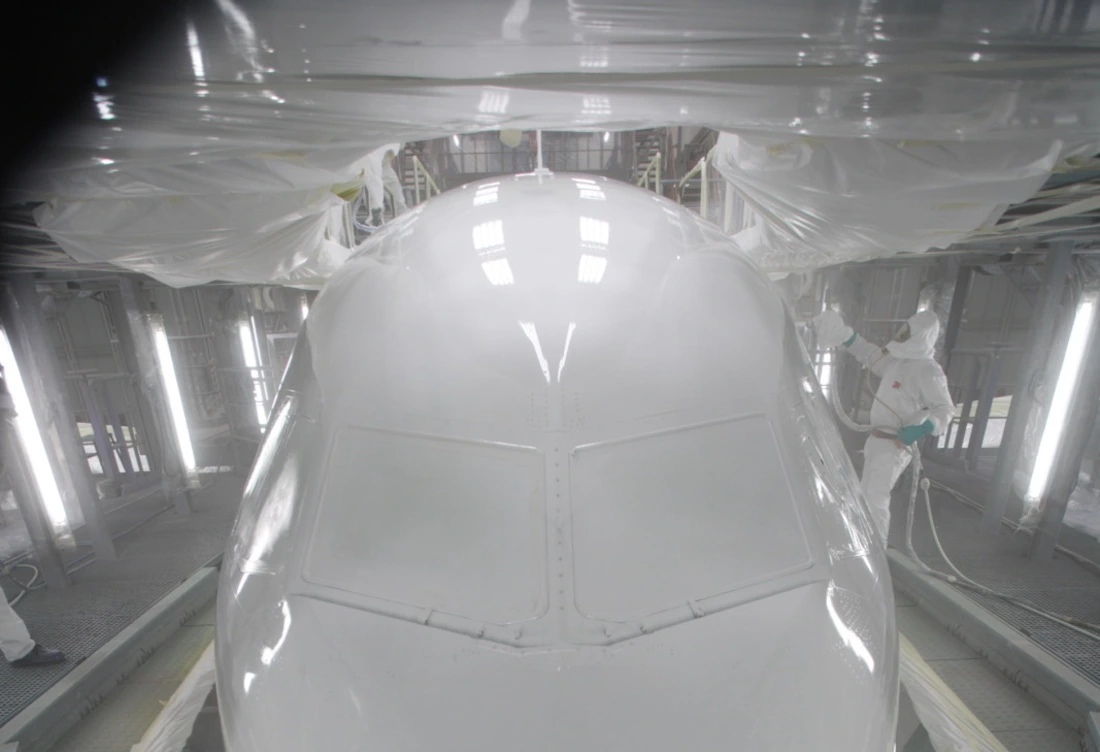

  • Aeronautical industry: paintwork halls
  • Metalworks: coke furnaces

  • Nuclear facilities: battery room, zone 2
  • Oil platform: maintenance tunnels
  • Gas-fired heating plant: turbine room, boiler room

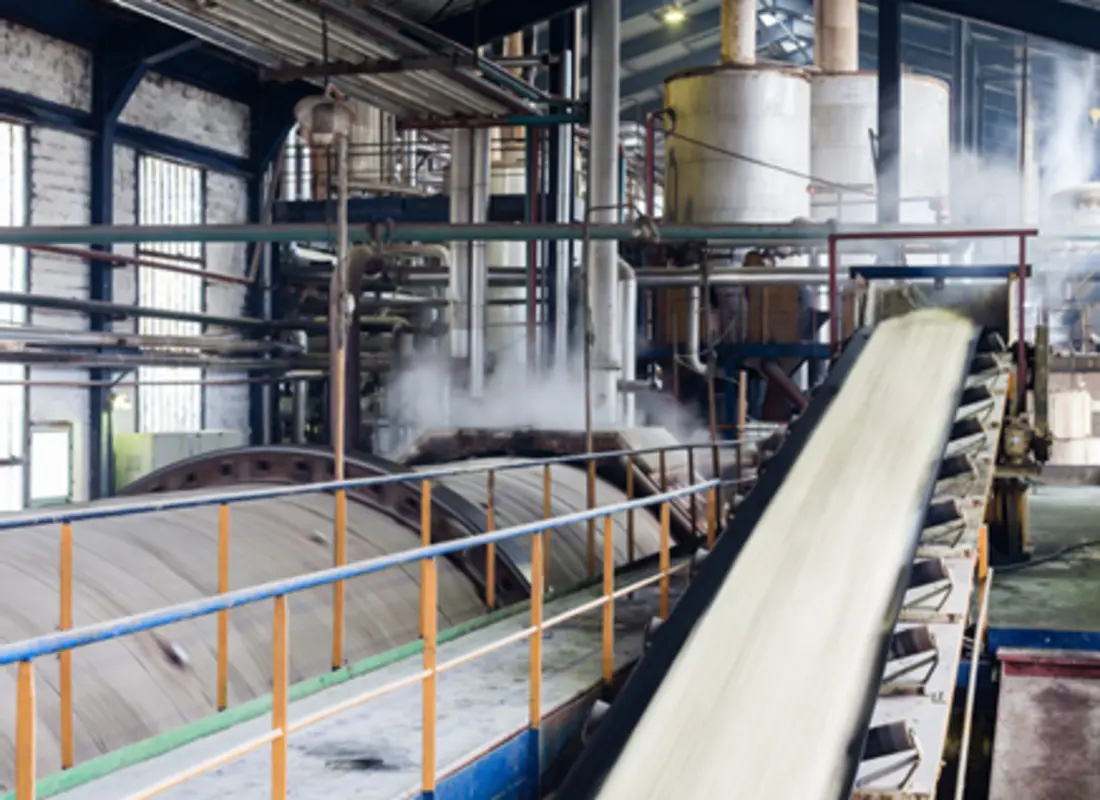

  • Sugar refinery: alcohol transformation
  • Animal feed production: dehydration process
  • Industrial fertiliser: crushers

  • Bus centre: maintenance hall
  • Port terminal: raw material storage tanks

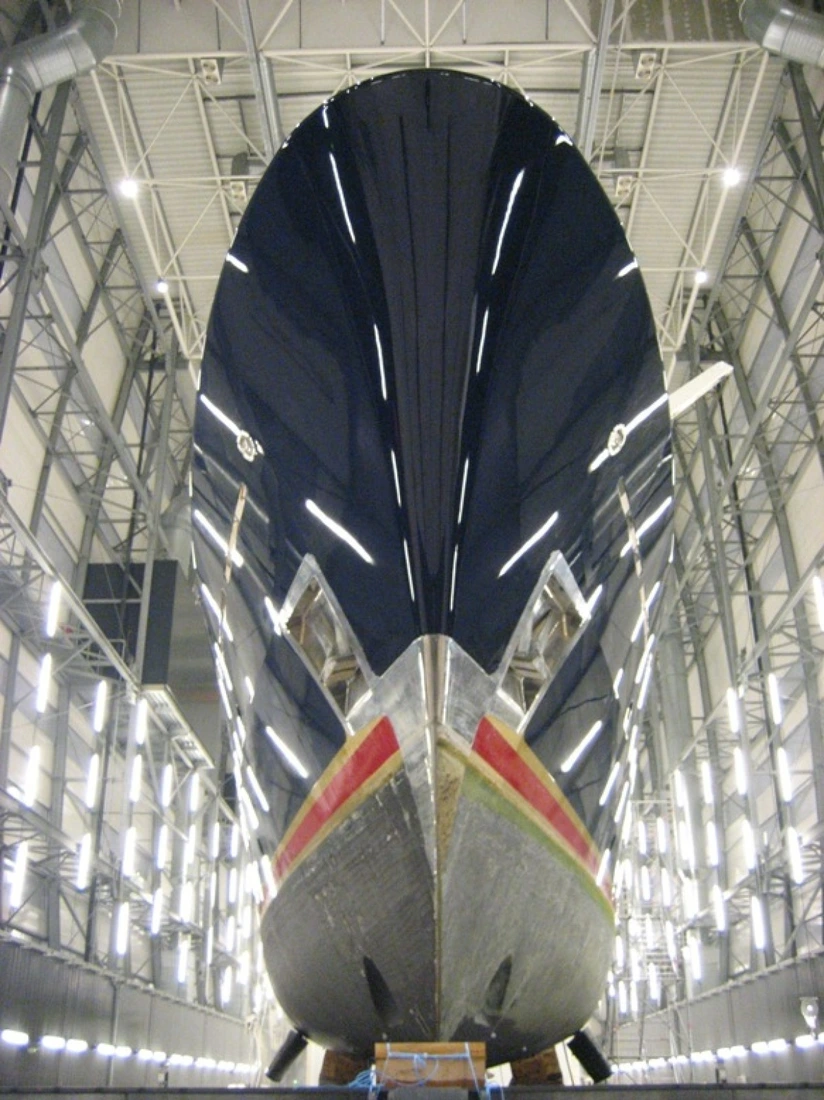

  • Shipyards: paintwork zones

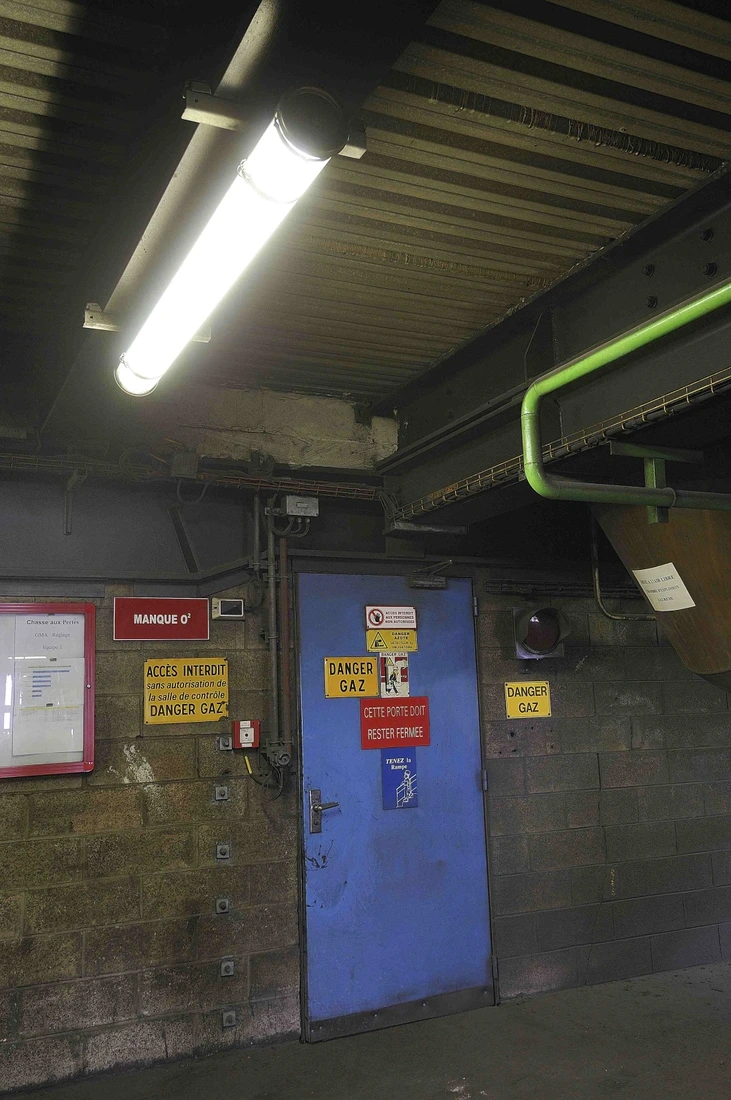

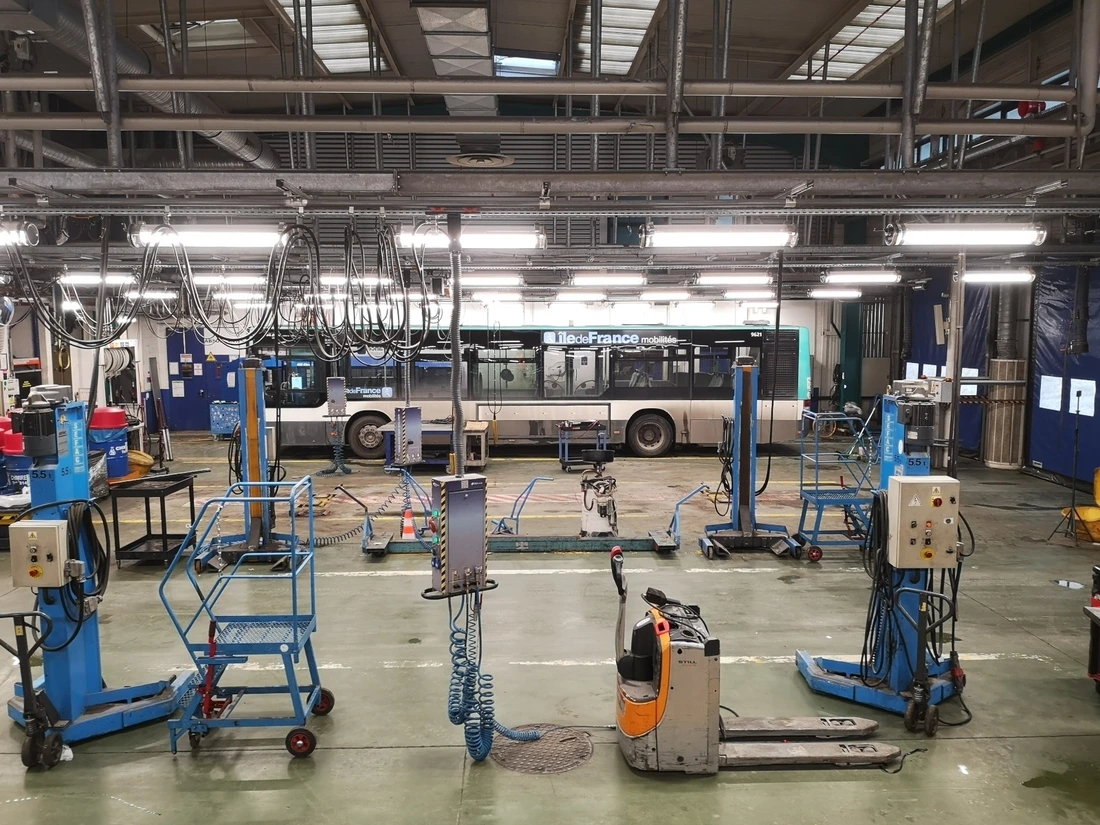

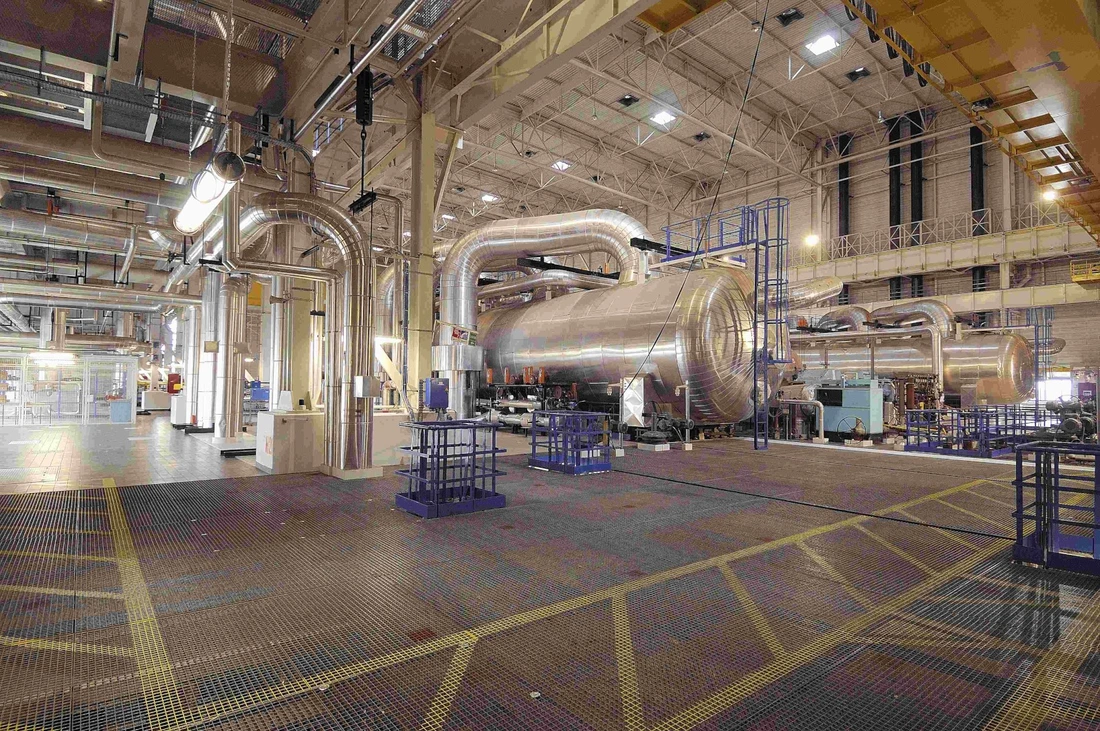

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Product with Atex certification for gas zones 2 and dust zones 21 & 22, issued by an independent laboratory. 8-year warranty you will not find anywhere else on the market, valid even for 24/7 use at the product’s maximum operating temperature.

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

2 cable glands version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 BOY100 12H840 PY 213 BRS 19835100 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 BOY100 13H840 PY 213 BRS 19835200 23 Data sheet Plan STEP DS .TXT Download all
100 3700 1307 BOY100 14H840 PY 213 BRS 19835384 30 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 BOY100 15H840 PY 213 BRS 19835300 37 Data sheet Plan STEP DS .TXT Download all
133 5550 987 BOY133 23H840 PY 213 BRS 19845100 42 Data sheet Plan STEP DS .TXT Download all
133 7400 1287 BOY133 24H840 PY 213 BRS 19845292 56 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 BOY133 25H840 PY 213 BRS 19845200 68 Data sheet Plan STEP DS .TXT Download all

1 cable gland version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 BOY100 12H840 PY 113 BRS 19830020 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 BOY100 13H840 PY 113 BRS 19830060 23 Data sheet Plan STEP DS .TXT Download all
100 3700 1307 BOY100 14H840 PY 113 BRS 19835385 30 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 BOY100 15H840 PY 113 BRS 19830080 37 Data sheet Plan STEP DS .TXT Download all
133 5550 987 BOY133 23H840 PY 113 BRS 19840020 42 Data sheet Plan STEP DS .TXT Download all
133 7400 1287 BOY133 24H840 PY 113 BRS 19845293 56 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 BOY133 25H840 PY 113 BRS 19840040 68 Data sheet Plan STEP DS .TXT Download all

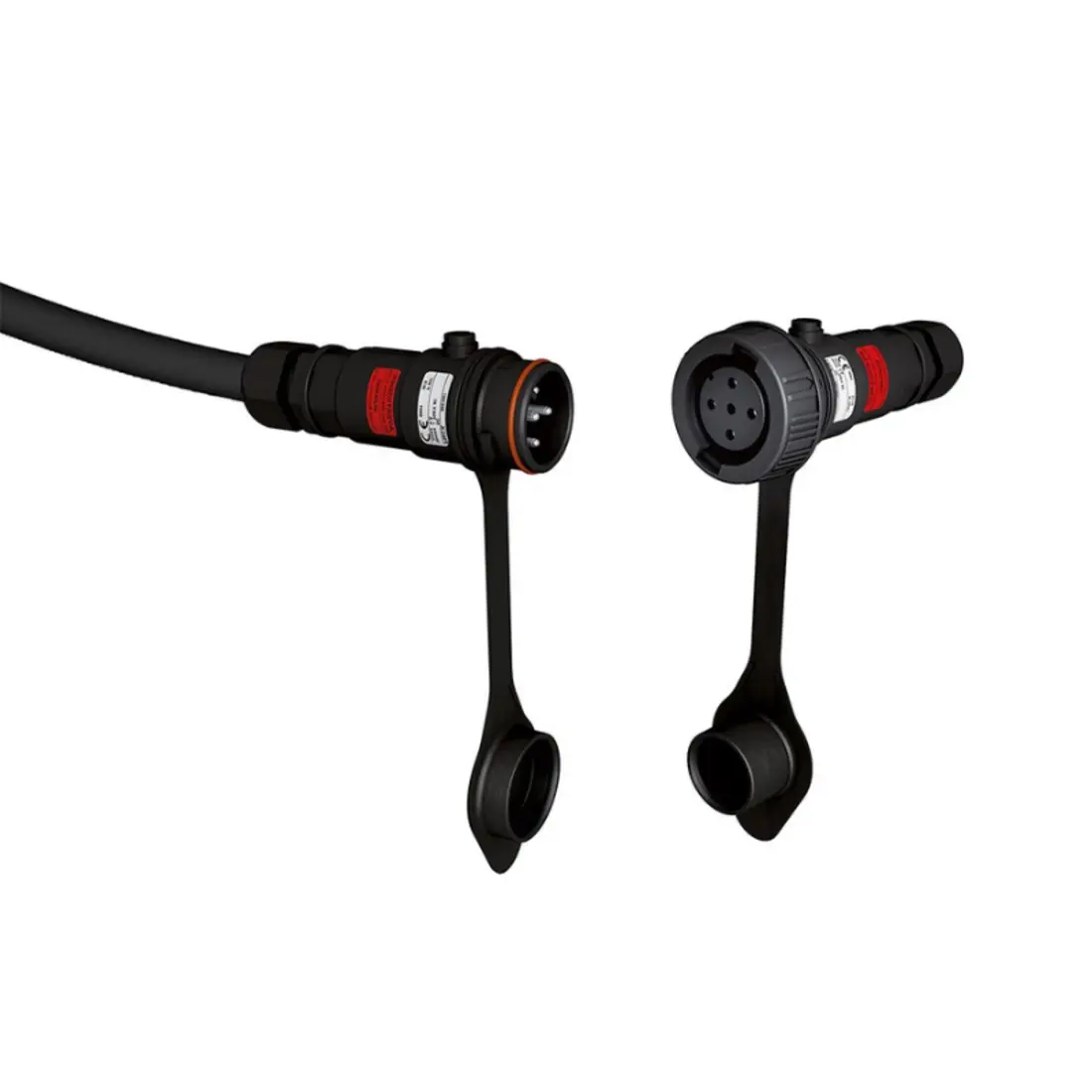

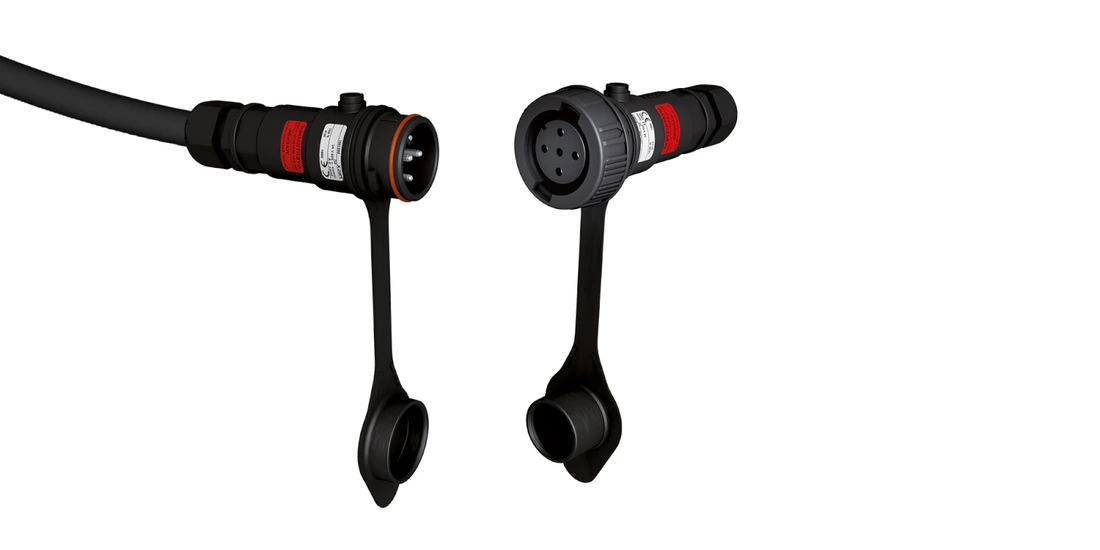

Atex disconnectable cable

HO7-RNF Xtrem pre-wired with a Marechal® PNCX plug. Order separately for this service.

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
0,1 CABL HO7RNF-BK XTREM ATEX-PLUG 0.1M 3G1.5 CAB0288 Data sheet Plan STEP DS .TXT Download all
1 CABL HO7RNF-BK XTREM ATEX-PLUG 1M 3G1.5 CAB0289 Data sheet Plan STEP DS .TXT Download all
3 CABL HO7RNF-BK XTREM ATEX-PLUG 3M 3G1.5 CAB0290 Data sheet Plan STEP DS .TXT Download all

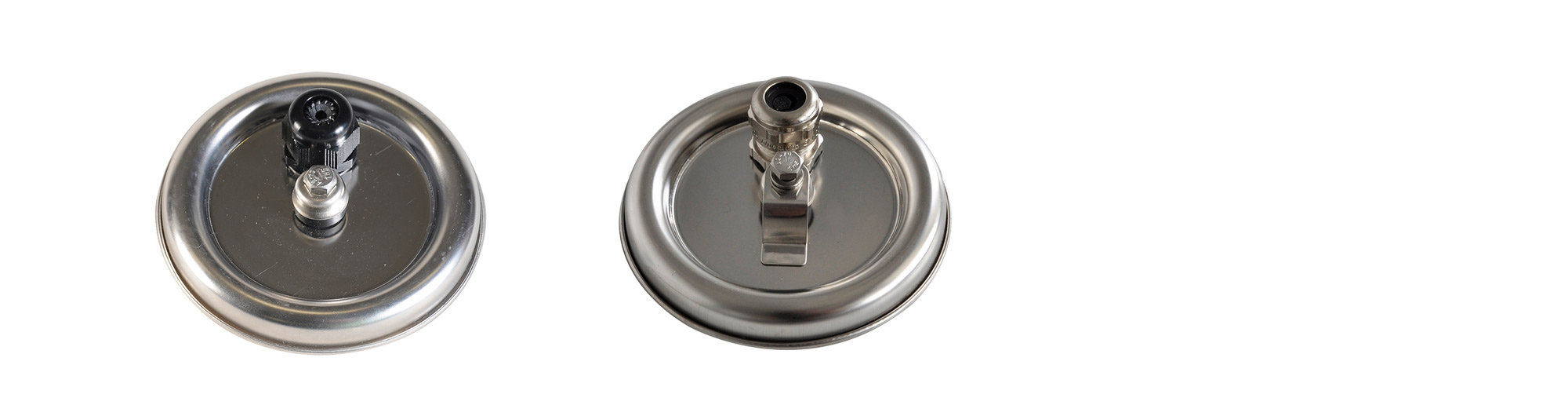

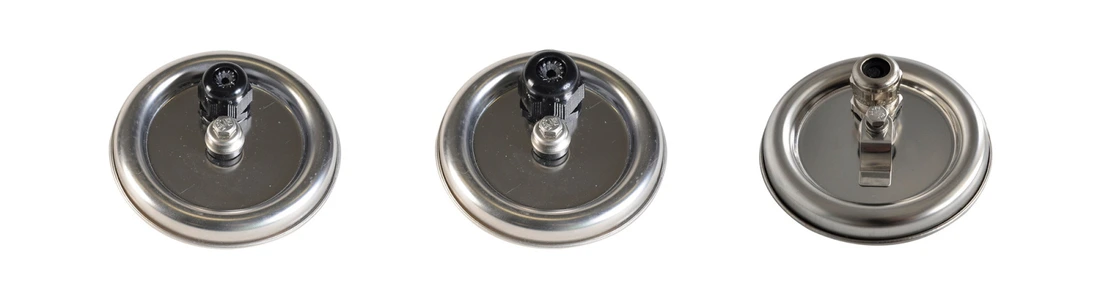

Cable entry

1 cable gland

Polyamide capacity Ø8-13 mm 113
Polyamide capacity Ø10-15 mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN

2 cable glands including one blind plug

Polyamide capacity Ø8-13 mm 213
Polyamide capacity Ø10-15 mm 216
Nickel-coated brass capacity Ø5-14 mm 213LN

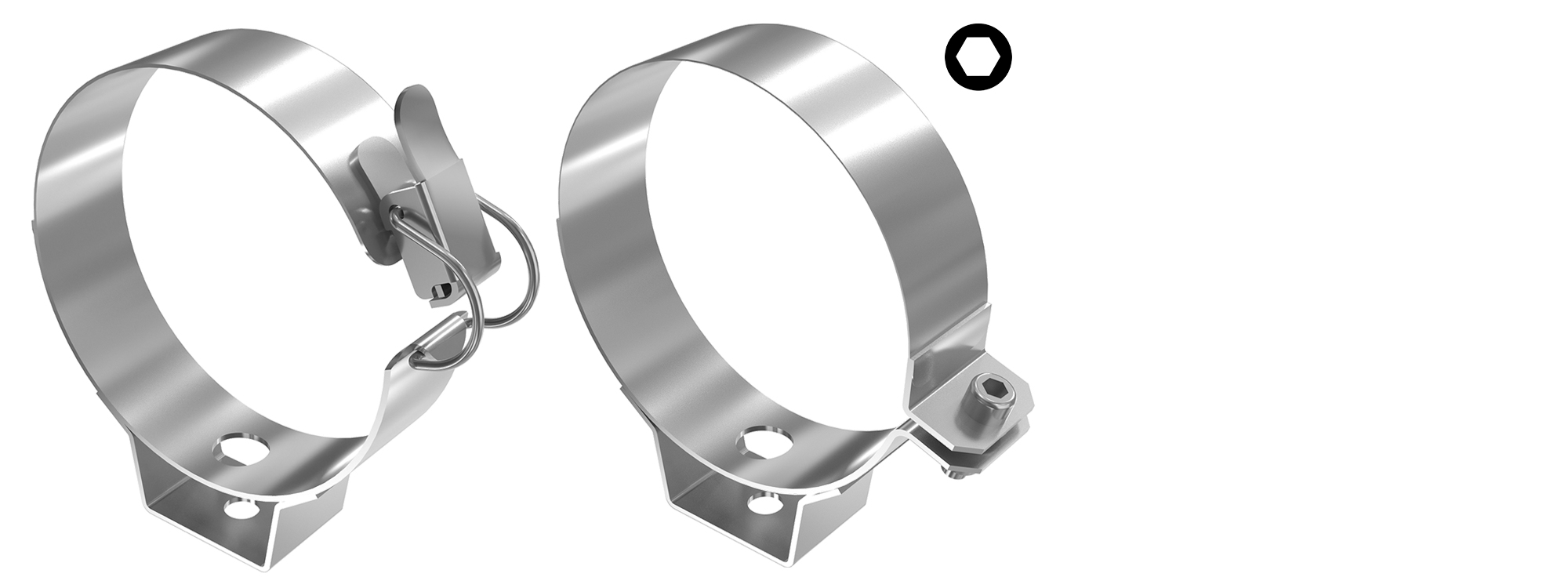

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

Borosilicate glass housing (IK07) PY
Coextruded polycarbonate/ PMMA housing IK10 POME
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI dimming RD

Emergency lighting

1h Self contained Emergency Lighting Long life time LiFePO4 battery (for length ≥ 995 mm) Tmax=30°C S1H
HO7-RNF Xtrem pre-wired cable with an IP67/69  Marechal® PNCX  Atex disconnectable plug
Several length available (6m max), 3 or 5  conductors : consult us

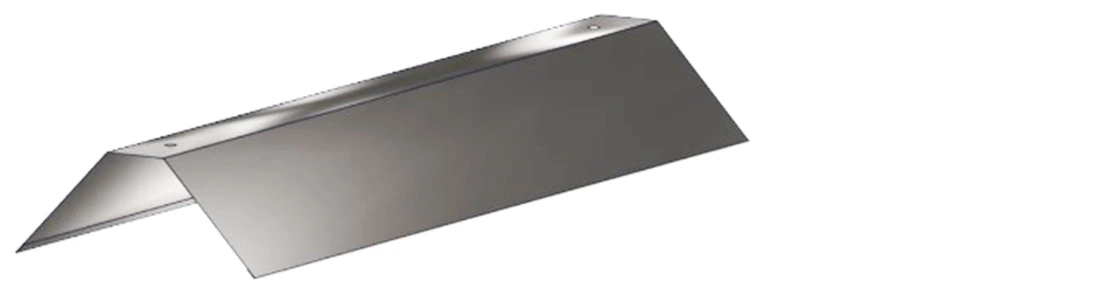

Folded 304L stainless steel protective cover
Length 800mm PU6362
Length 1100mm CP00595
Length 1400mm PU6286
Length 1700mm PU6363

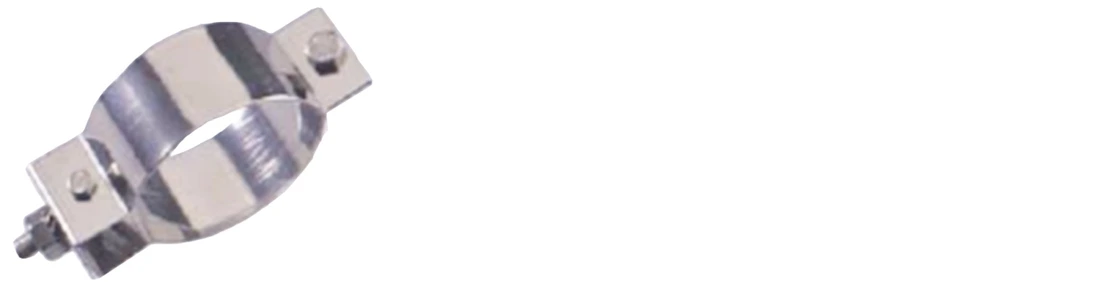

304L stainless steel column mounting fixing strap
Adapter ø1"1/4 (=42mm) PU4321
Adapter ø1"1/2 (=49mm) PU4083
Adapter ø2" (=60mm) PU4082

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Specific satin-finish primary diffuser optics
Heat management
  • Aluminium heat sink
Control gear
  • High reliability constant current output driver, mechanically and thermally reinforced.
  • Resistance to overload: 320 V AC, 48 h
  • Supports voltage spikes < 4 kV
  • Electronic compatible with central source
  • Compatible with neutral TN, TT and IT arrangements with no limitations
Supply voltage
  • 198-264V 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +50°C

Connection
  • With ATEX polyamide cable gland for Ø8 to 13 mm cable
  • 1 cable gland version : to a 3 x 2,5 mm² disconnectable terminal block
  • 2 cable glands version : to 5x2,5mm² detachable double deck terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Off-load opening in an explosive environment

Housing
  • Borosilicate-glass
End caps and fixing straps
  • 304L stainless steel
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

ATEX / IECEx
  • IEC 60079-0, IEC 60079-15, IEC 60079-31
Marking
  • II 3G Ex ec IIC T4 Gc - II 2D Ex tb IIIC T70°C Db IP66/IP68
Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07
Fire resistance
  • Non-flammable
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

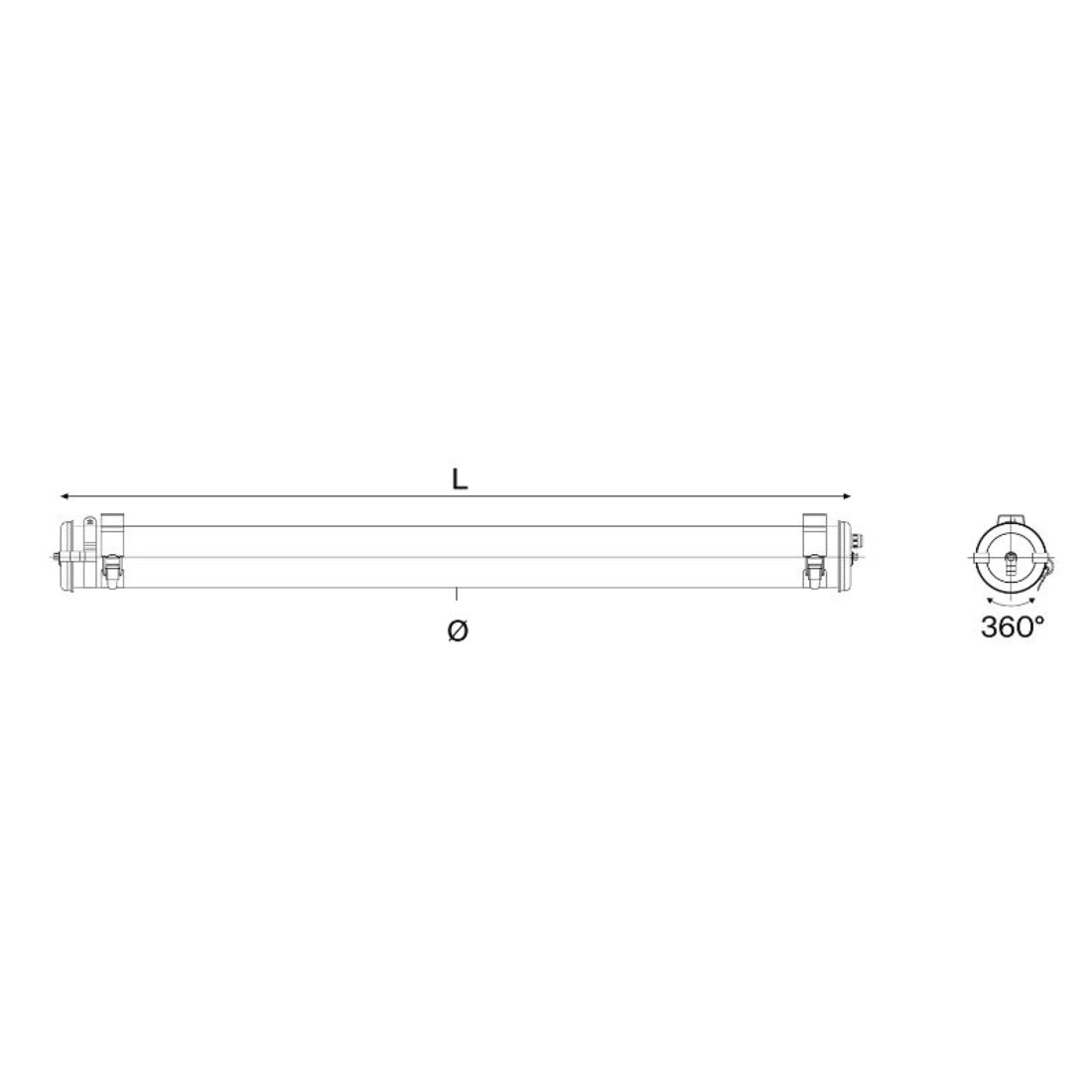

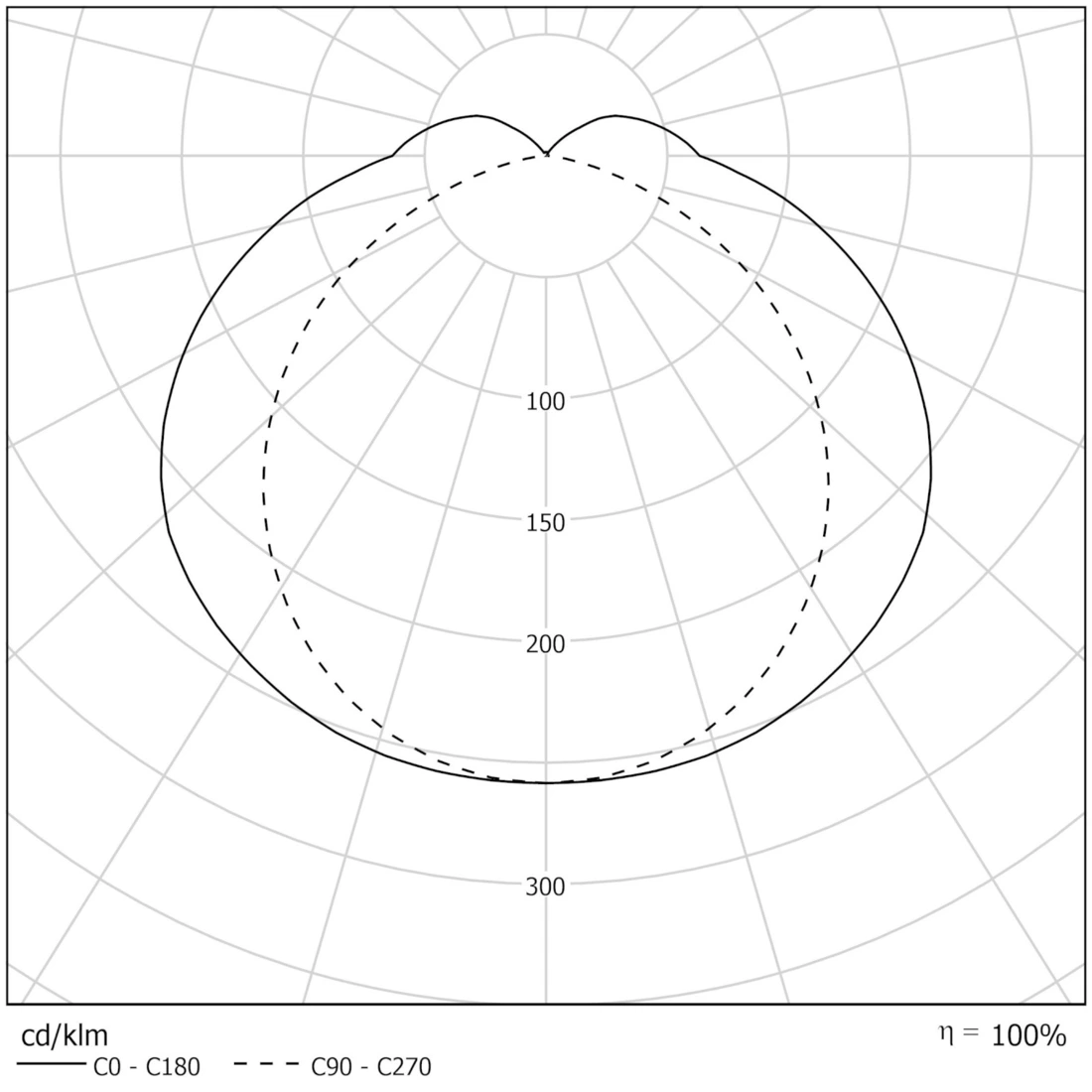

Diameter 100

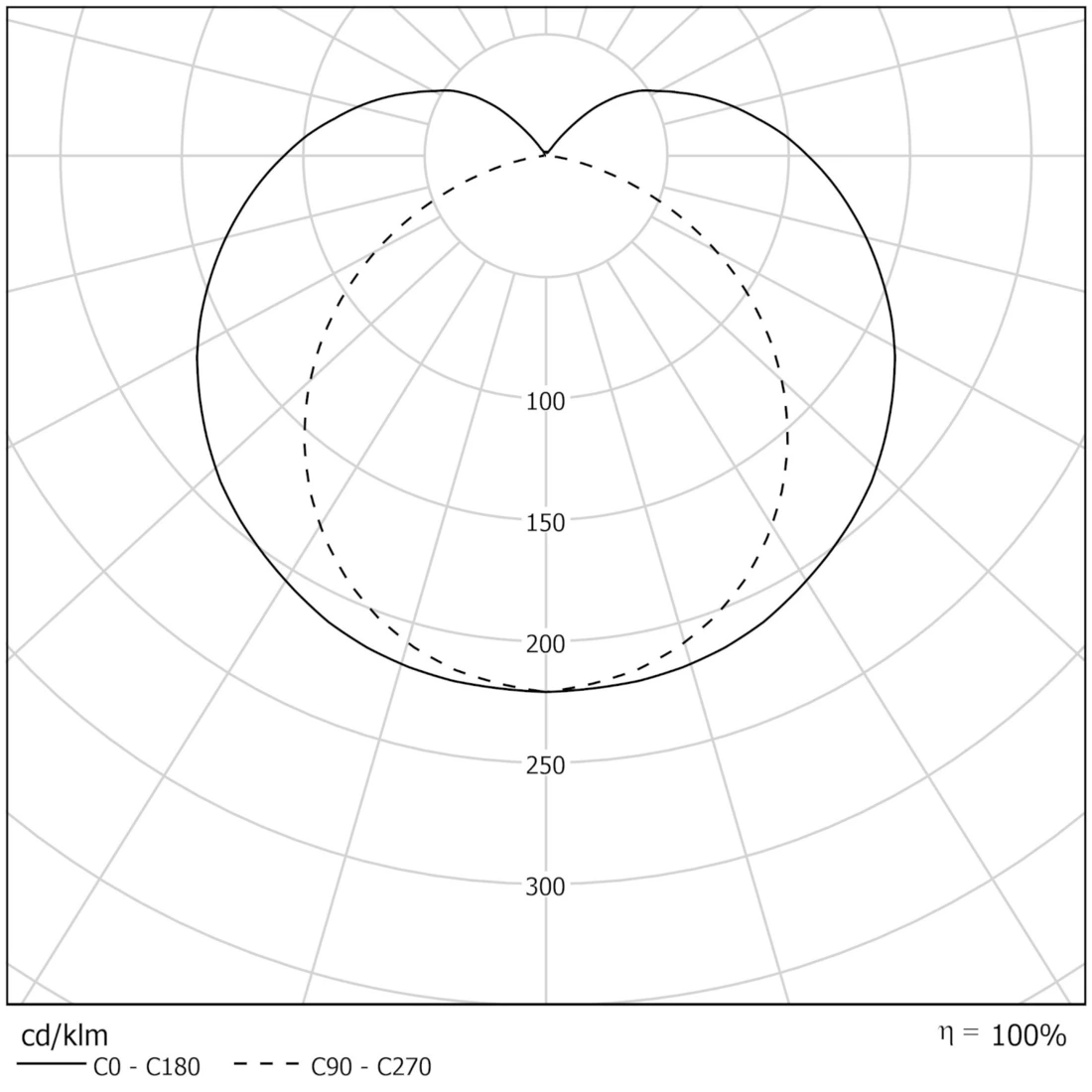

Diameter 133
