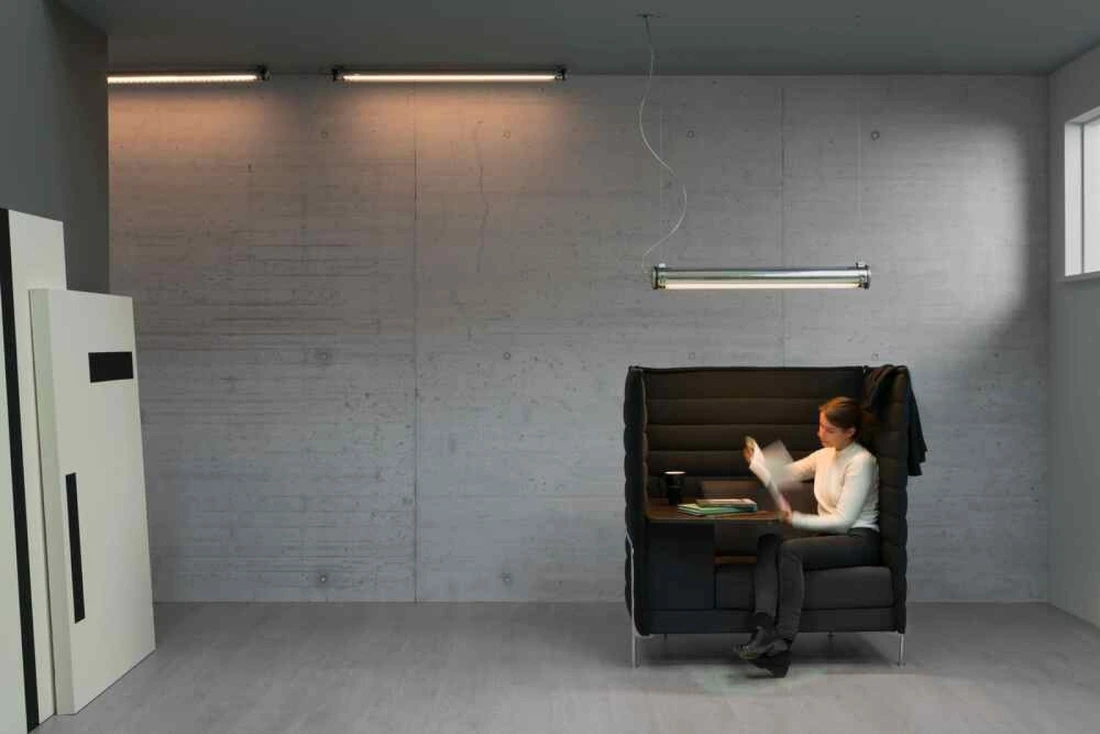

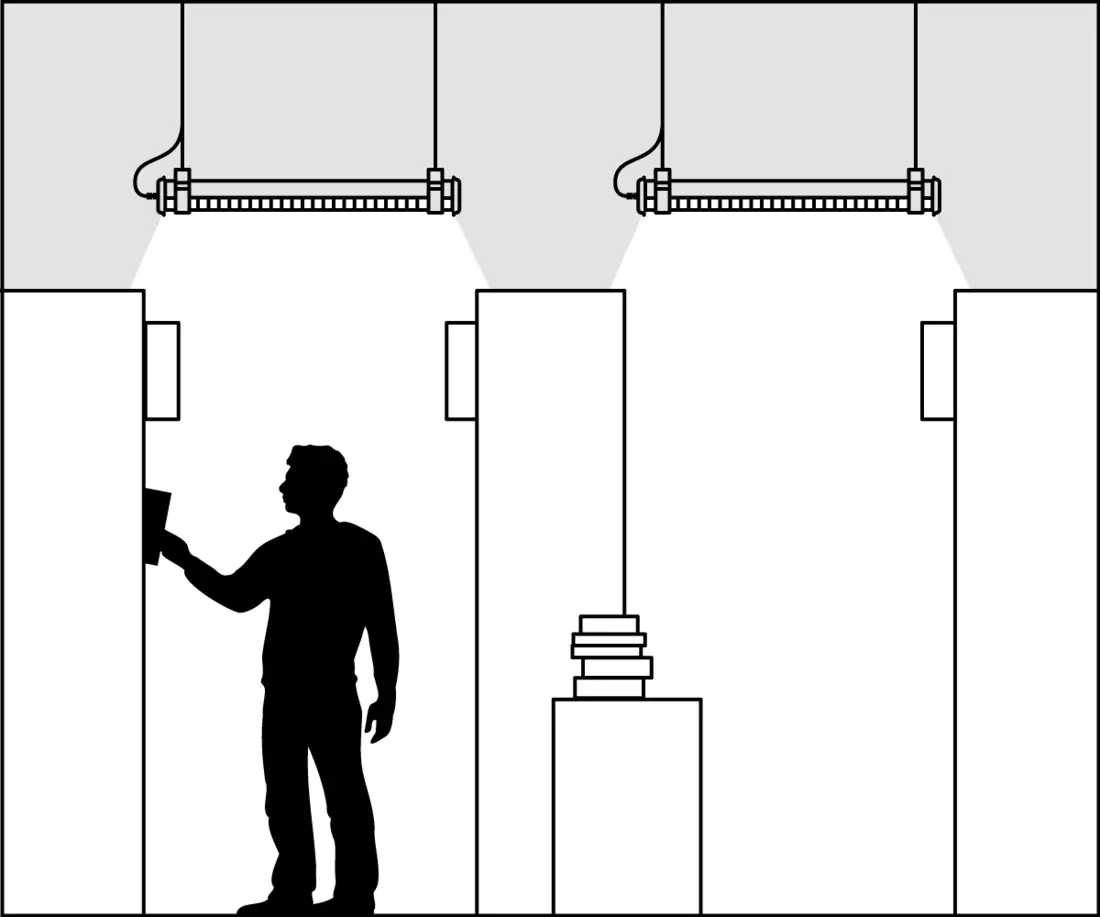

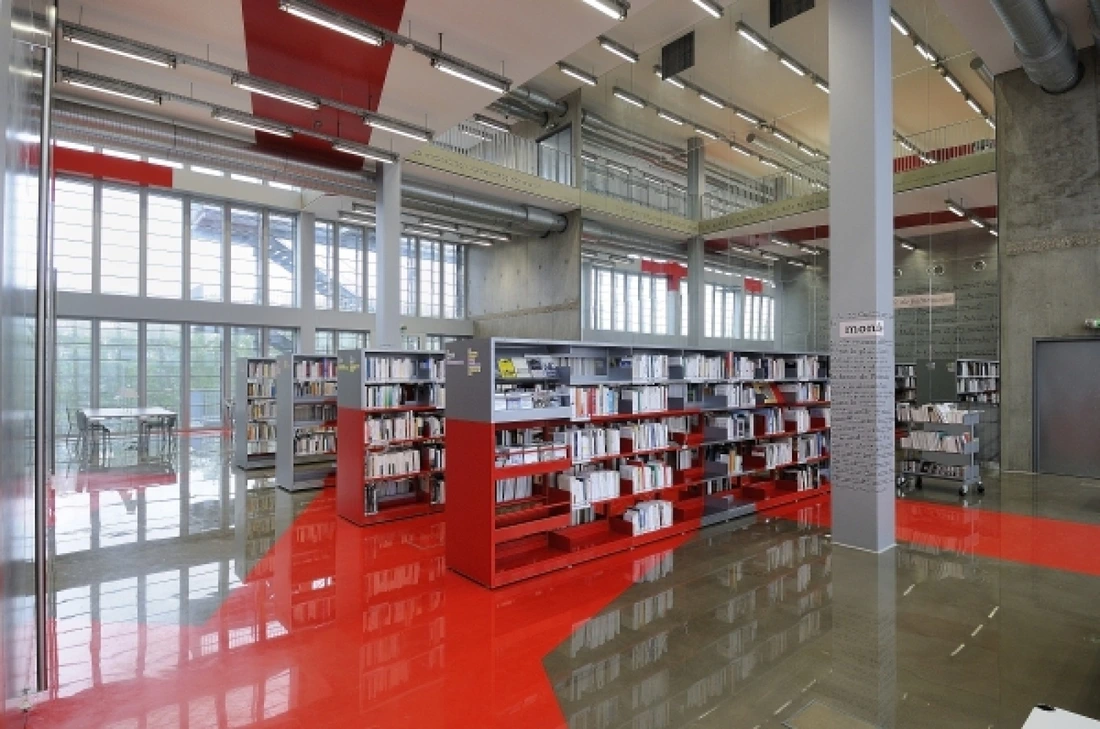

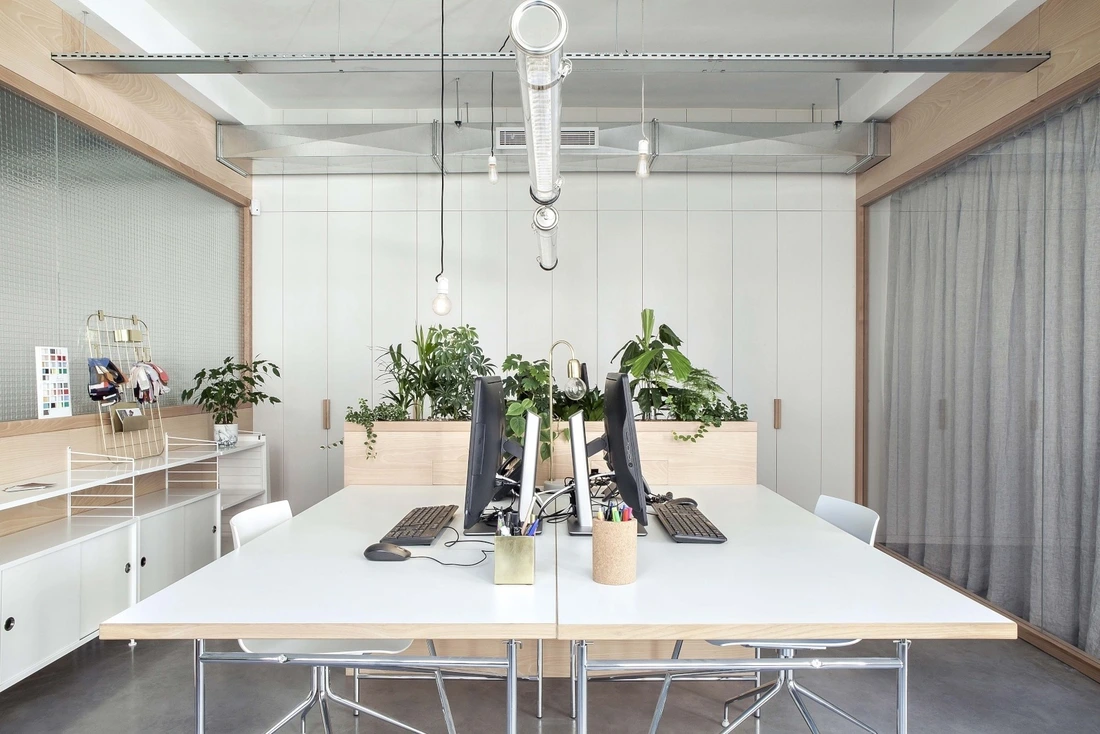

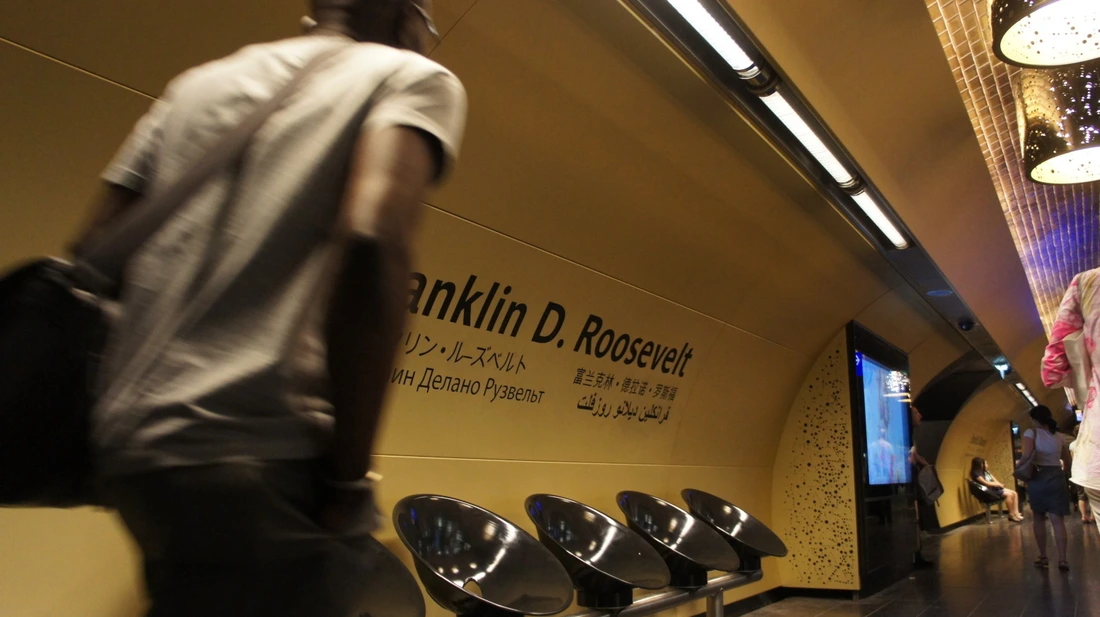

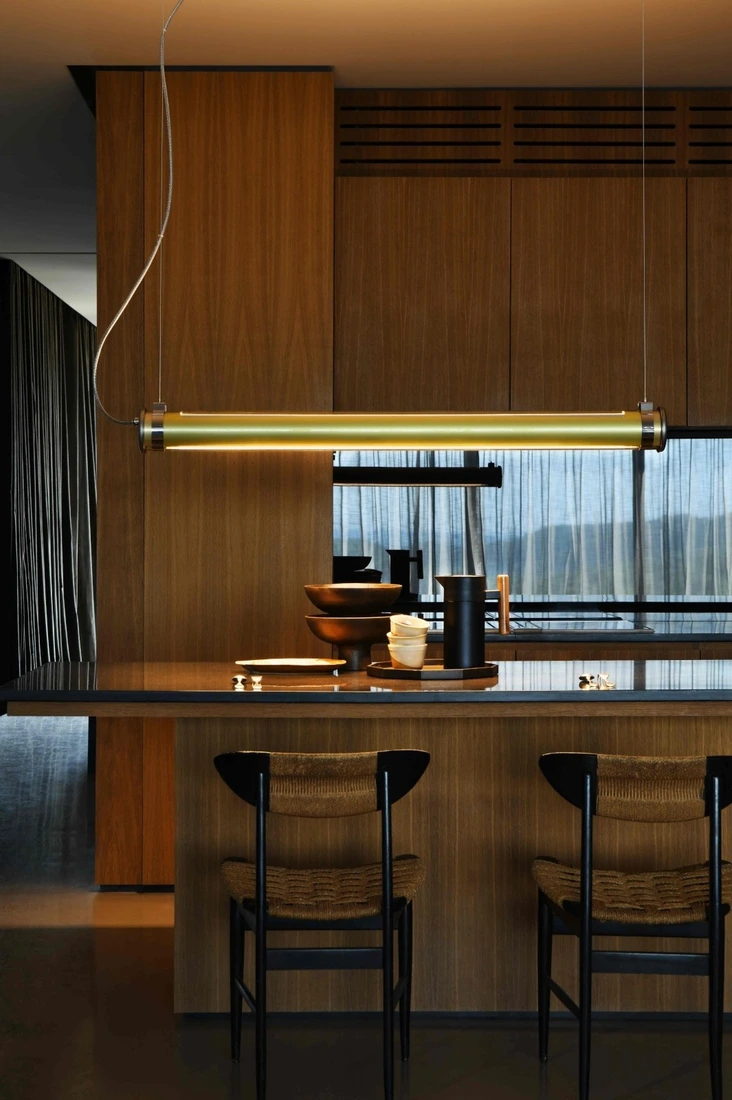

The Brueghel luminaire is available in ceiling-mounted and suspended versions and can illuminate open spaces on company premises, coworking areas, a seamstress’s work surfaces, classrooms, reading corners in libraries, bank counters, metro station platforms, and so much more.

Great lighting, what else?

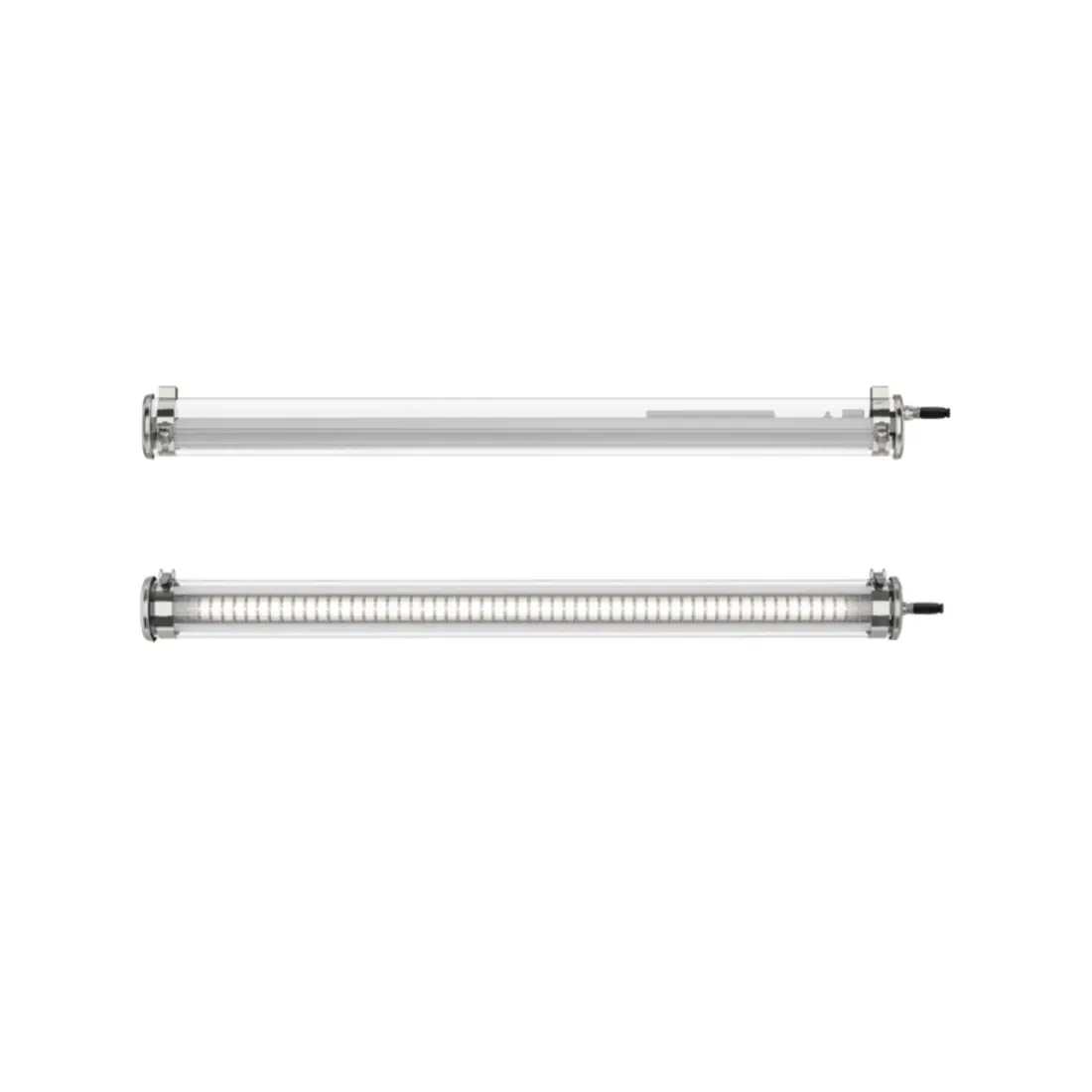

The Brueghel light fitting is equipped with a high-performance low-luminance louvre (UGR=19), offering eye comfort and efficient lighting. The result: quality lighting to avoid eye fatigue, thanks to a tubular luminaire with an unrivalled industrial design.

Access to product information

Lighting comfort

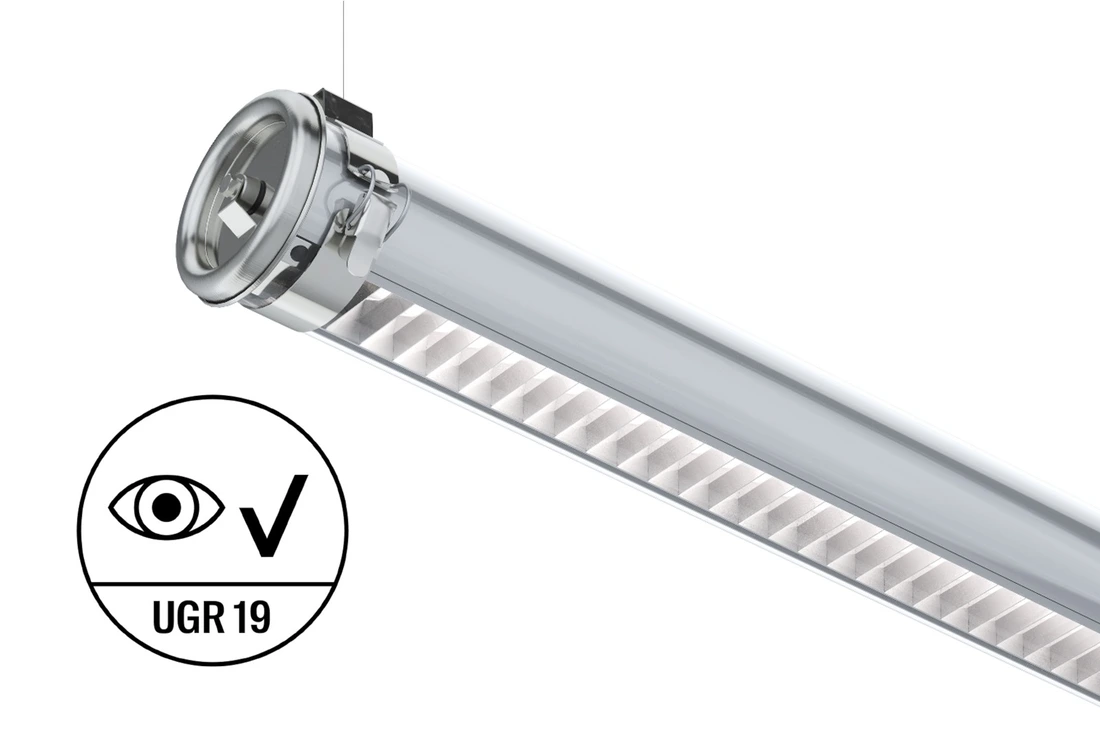

The low-luminance louvre with high-performance aluminium slats masks the light source in all directions. Our lighting expertise makes Brueghel the ideal luminaire for screen workers (L65°=1500cd/m²). This ceiling light & suspended light fitting offer total control for reflections and glare.

Remarkable colour

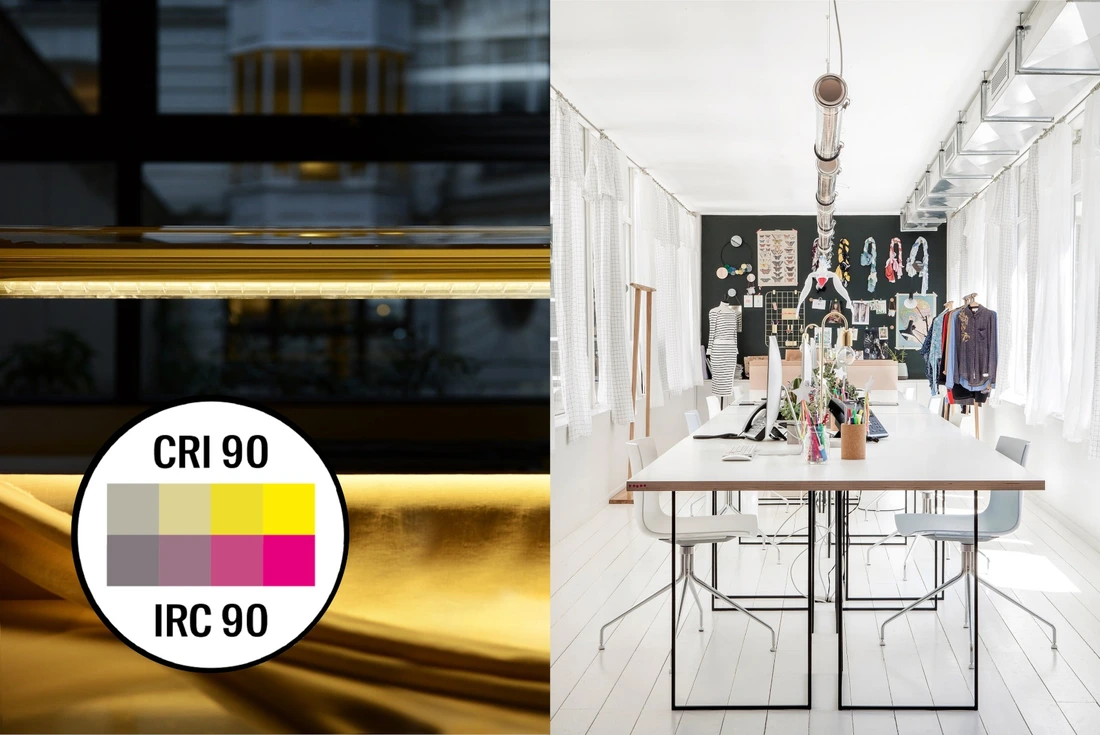

Benefit from exceptional lighting with a Colour Rendering Index (CRI) of more than 90. Our high-performance LED modules provide superior quality light, revealing the colour of paintwork, wood grain or fabric texture.

A wide range of finishes

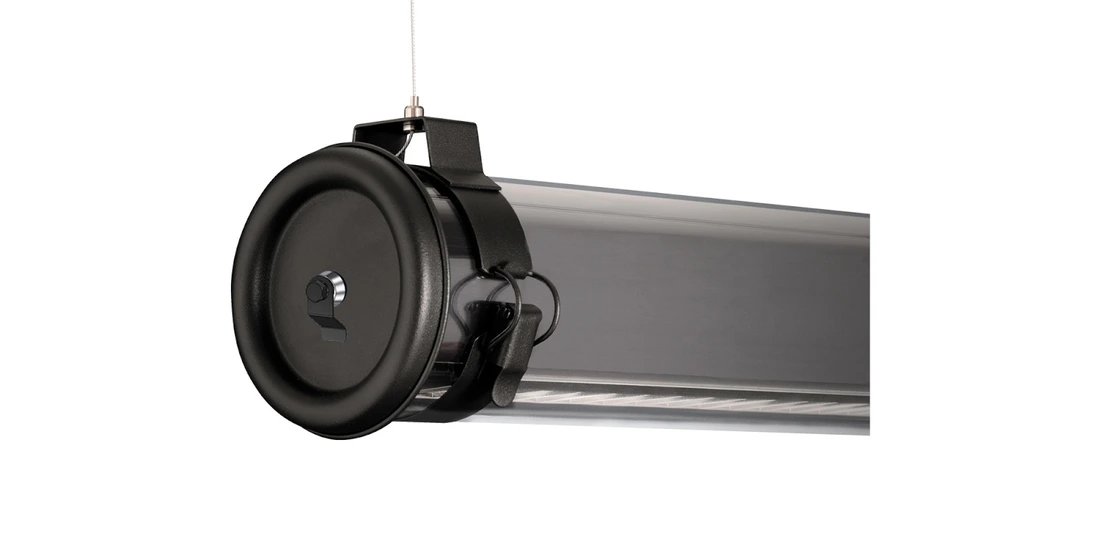

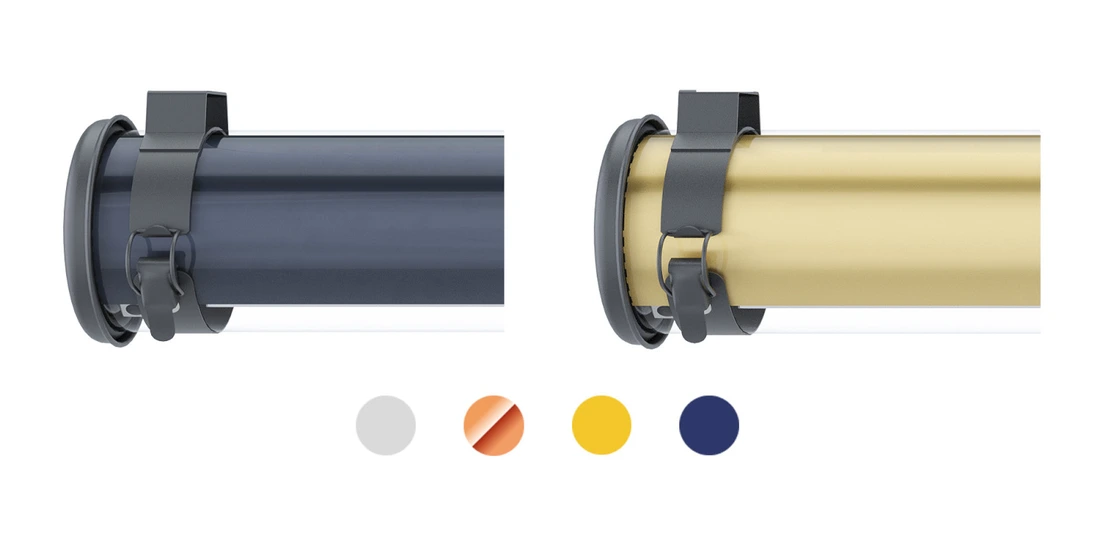

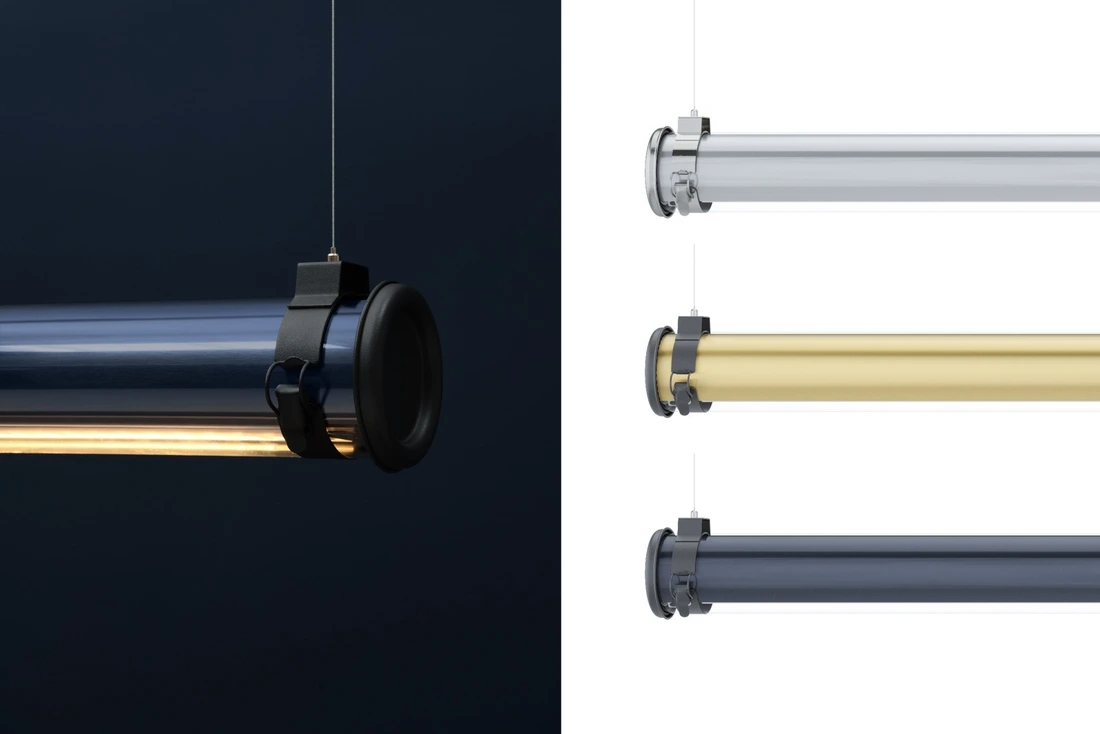

Sammode can offer a full range of options and accessories to enhance your lighting projects. Customise your luminaires with Coal finish end-caps or add a decorative touch with the gear unit cover available in 4 hues – Silver, Copper, Brass or Petrol.

A durable and sustainable design

Goodbye plastic, hello glass! The Brueghel ceiling and suspended light fittings comprise durable, noble and recyclable materials (stainless steel, high-strength borosilicate glass), offering an authentic gleaming industrial design with unrivalled transparency.

Tunable White technology

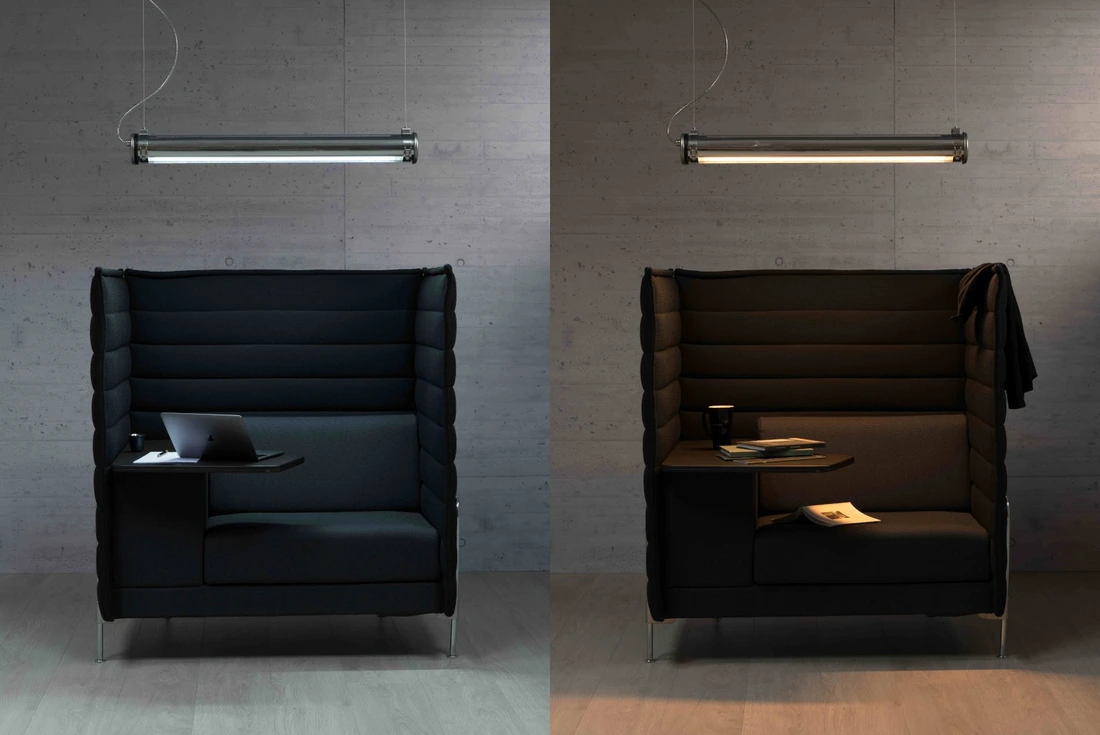

Switch from a dynamic luminaire to a cosier light fitting thanks to the Brueghel luminaire and the Tunable White technology. This luminaire is easy to control thanks to the Bluetooth Casambi or DALI protocol, adapting to the time of day to ensure user comfort, well-being and productivity.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 8-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

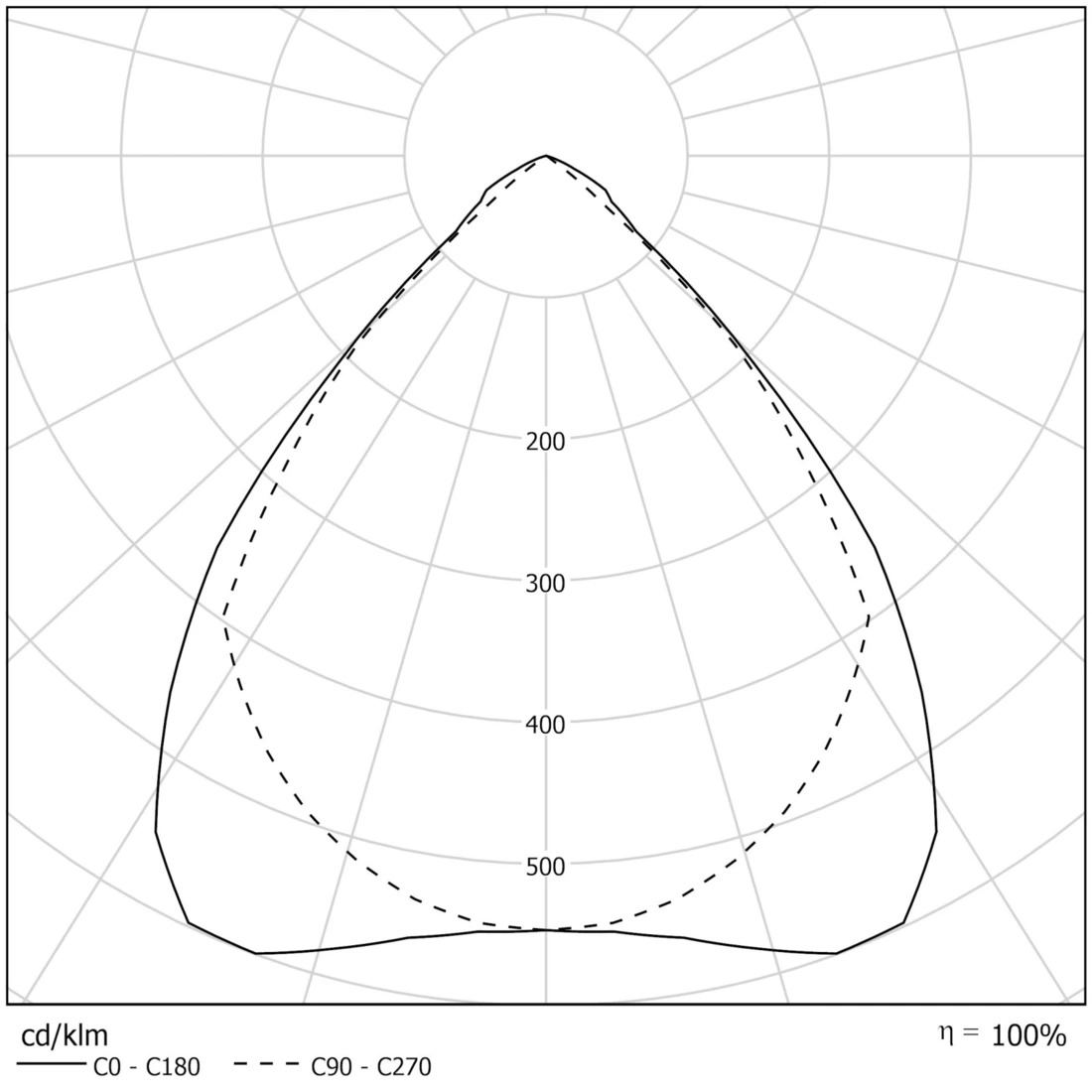

Eulumdat (LDT)

Manual

Certificate
Download all

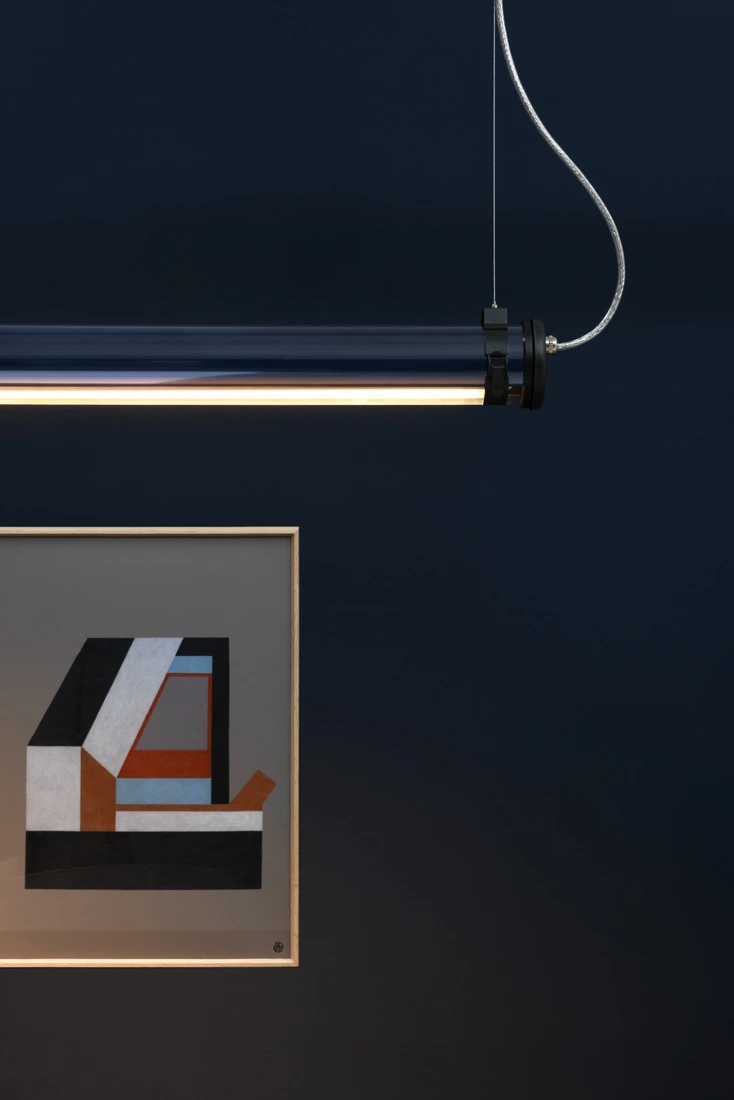

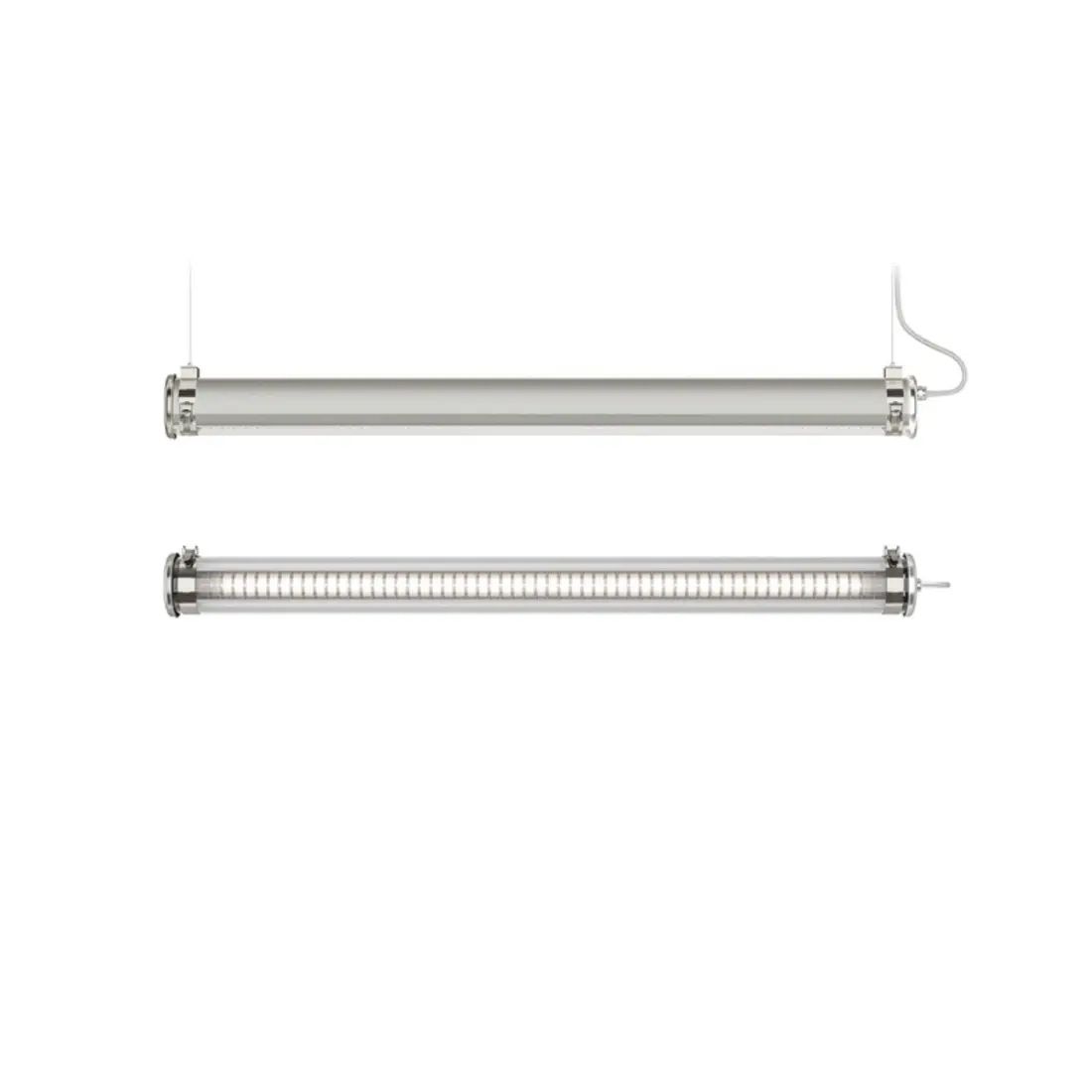

Pendant light fitting, borosilicate glass housing

CRI90, 3000K, DALI dimmable

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 2100 1007 BRUEGHEL 100 S 1000 2100-930 RD CL1 CRS PY SUSP 42240384 22 Data sheet Plan STEP DS .TXT Download all
100 2800 1307 BRUEGHEL 100 S 1300 2800-930 RD CL1 CRS PY SUSP 42240408 28 Data sheet Plan STEP DS .TXT Download all
100 3500 1607 BRUEGHEL 100 S 1600 3500-930 RD CL1 CRS PY SUSP 42240260 34 Data sheet Plan STEP DS .TXT Download all
133 2400 987 BRUEGHEL 133 S 1000 2400-930 RD CL1 CRS PY SUSP 42340210 24 Data sheet Plan STEP DS .TXT Download all
133 3200 1287 BRUEGHEL 133 S 1300 3200-930 RD CL1 CRS PY SUSP 42340133 30 Data sheet Plan STEP DS .TXT Download all
133 4000 1587 BRUEGHEL 133 S 1600 4000-930 RD CL1 CRS PY SUSP 42340139 37 Data sheet Plan STEP DS .TXT Download all

Pre-cabling

Braided tinned copper cable

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
3 CABL OPVC-BRAID 3M 5G1.5 CAB0011 Data sheet Plan STEP DS .TXT Download all

Ceiling light fitting with high-resistance housing and disconnectable plug

CRI90, 3000K, DALI dimmable

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 2100 1007 BRUEGHEL 100 S 1000 2100-930 RD CL1 PS5 42240750 22 Data sheet Plan STEP DS .TXT Download all
100 2800 1307 BRUEGHEL 100 S 1300 2800-930 RD CL1 PS5 42240751 28 Data sheet Plan STEP DS .TXT Download all
100 3500 1607 BRUEGHEL 100 S 1600 3500-930 RD CL1 PS5 42240531 34 Data sheet Plan STEP DS .TXT Download all
133 2400 987 BRUEGHEL 133 S 1000 2400-930 RD CL1 PS5 42340220 24 Data sheet Plan STEP DS .TXT Download all
133 3200 1287 BRUEGHEL 133 S 1300 3200-930 RD CL1 PS5 42340219 30 Data sheet Plan STEP DS .TXT Download all
133 4000 1587 BRUEGHEL 133 S 1600 4000-930 RD CL1 PS5 42340136 37 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
Borosilicate glass housing (non-flammable) PY

Color temperature

2700K 827/927
3000K 830/930
4000K 840/940

Tunable White

Tunable White (2700 to 6500K) TW

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC
Casambi Bluetooth control RB
Non dimmable -

Electrical class

Class I CL1
Class II -

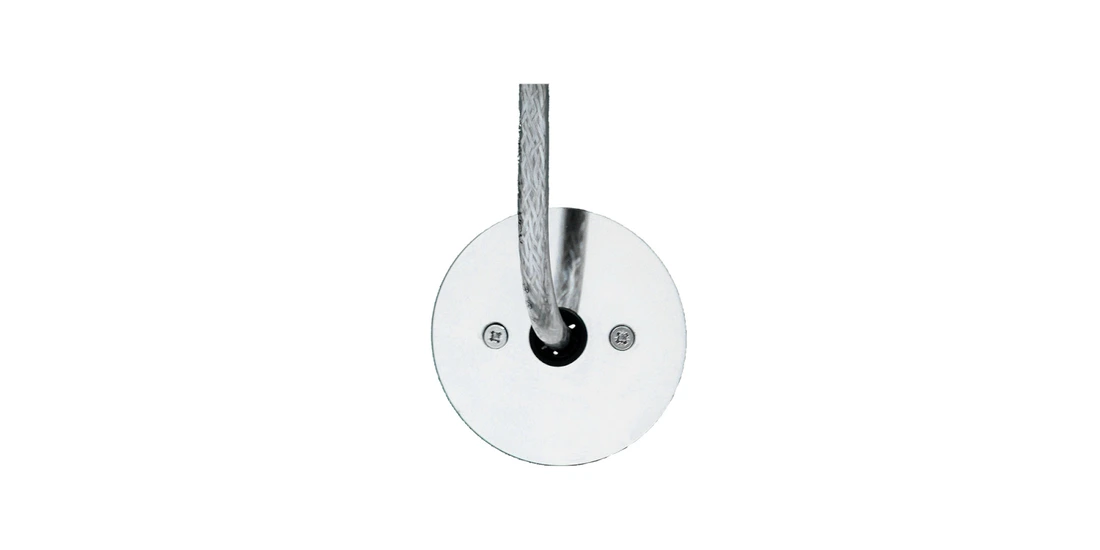

Stainless steel cable plate kit (IP40) 17500020
Pre-cabling 3m 3G1.5 (3 wires) Braided tinned copper cable CAB0008
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011
Casambi ready wall switch
Please, contact us

Technical specifications

Light source
  • High-efficiency removable LED module (3 SDCM)
  • 70 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Low glare louvre with reflector and louvres in high performance aluminium
Lighting comfort
  • Very low glare: UGR ≤19
  • Very low luminance, work on screen compatible: L65°=1500cd/m².
  • Longitudinal glare control: 30° in Ø100, 40° in Ø133, transversal glare control: 30°
Control gear
  • Constant current driver
  • Electronic compatible with central source
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • Pre-wired version : Stripped free end
  • Version with 5-pole plug : disconnectable plug for Ø 8 to 10 mm cable (5 × 1.5 mm²)
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
  • Pendant version : provided with 2 suspension kits and 3 m of steel wire
LED engine maintenance
  • Maintenance by releasing the 2 closing screws, removing the end cap and extracting the gear tray
  • Easily removable LED modules and driver

Housing
  • Borosilicate glass (IK07), high transparency, scratch-resistent and non-flammable or Co-extruded polycarbonate/PMMA for inside/outside use (IK10, 650°C), according to the version
End caps and fixing straps
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07 / IK10, according to the version
Fire resistance
  • Non-flammable /650°C, according to the version

ULR = 0% FC3 = 100%
