The Brueghel Direct/Indirect luminaire can illuminate the desks in a start-up’s office, meeting rooms at the headquarters of a large firm, multipurpose rooms in a cultural centre, a coworking space for freelancers, a university lecture theatre, a designer’s showroom, and so on.

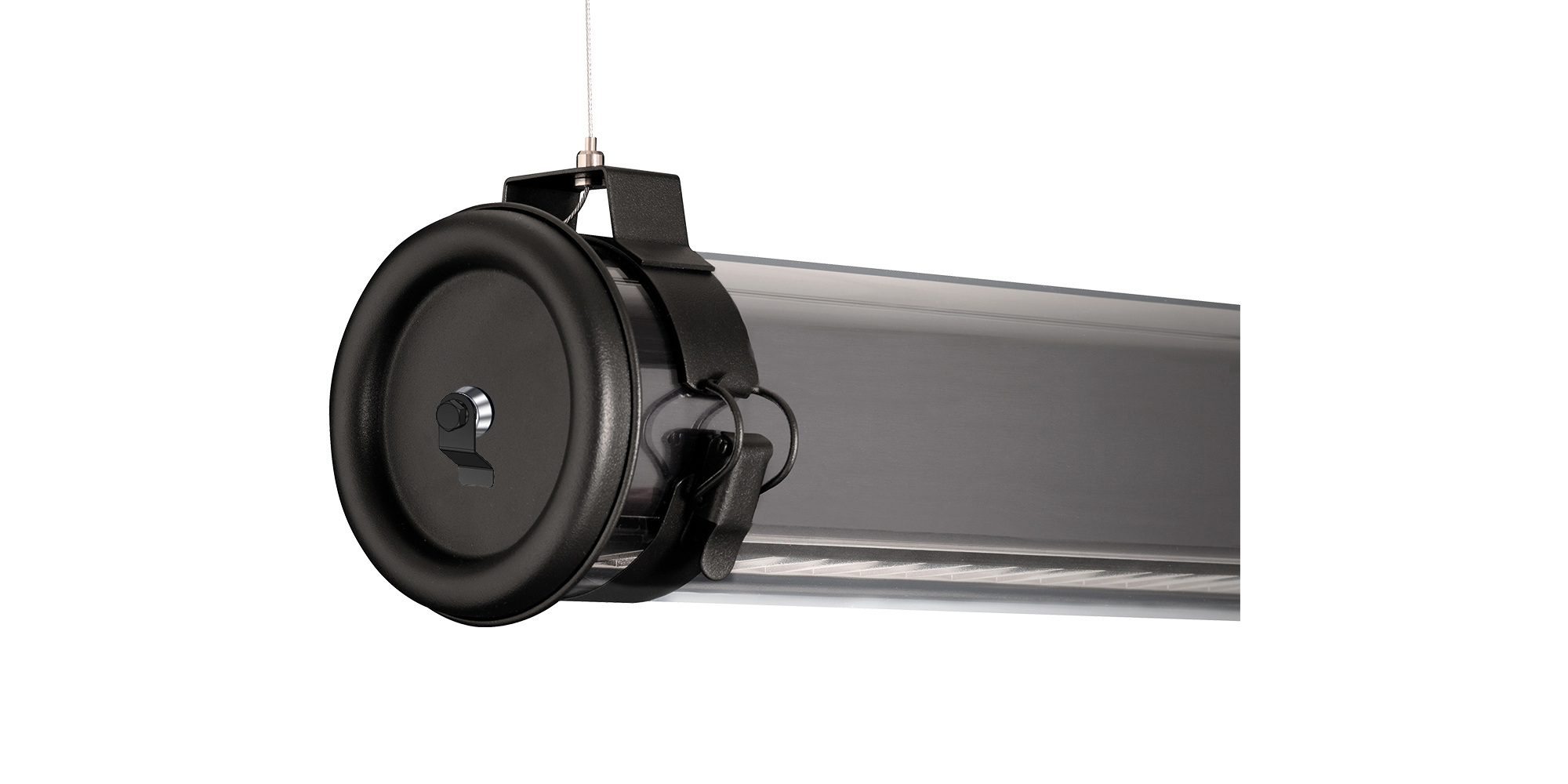

Direct/indirect low-luminance suspended light fitting, Ø100 and 133

Thanks to its twin sources and low-luminance louvre (UGR≤19), the Brueghel Direct/Indirect is the ideal luminaire for coworking areas, meeting rooms, and all multifunctional locations where lighting needs to be comfortable for users.

Access to product information

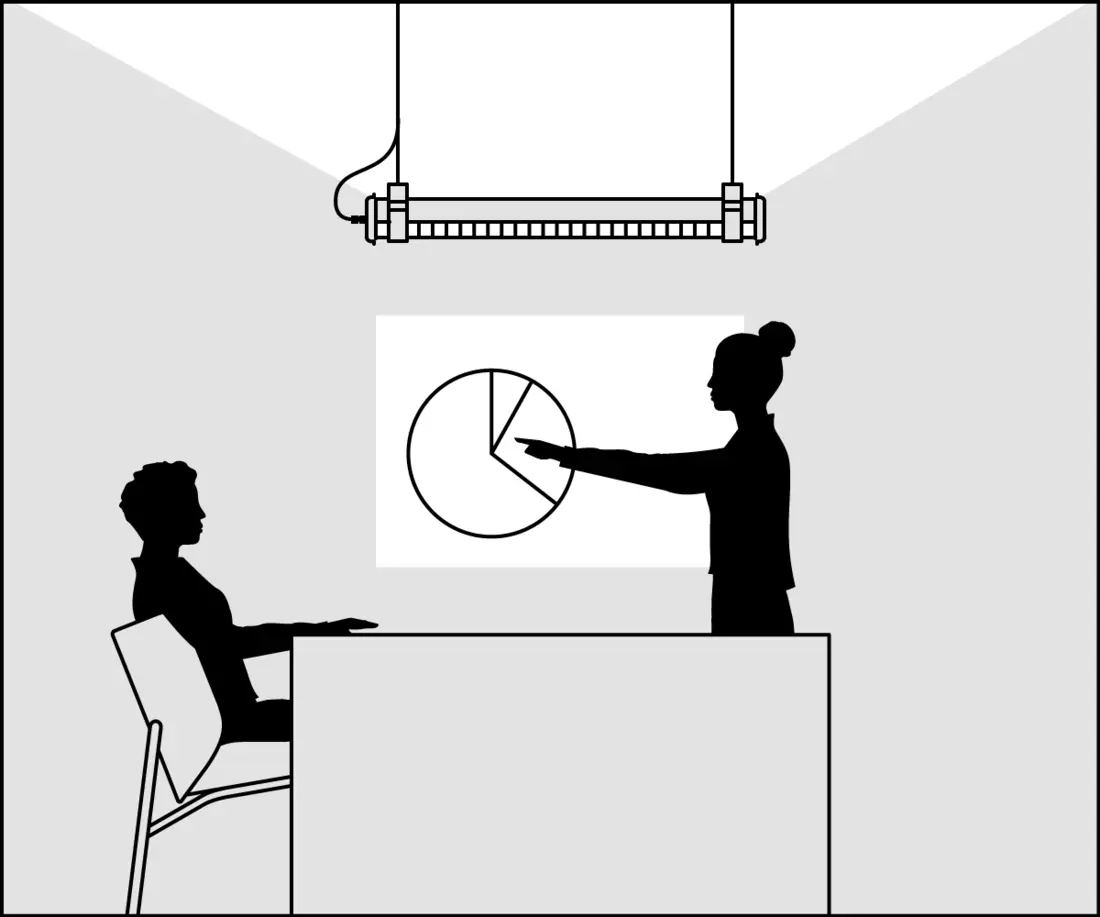

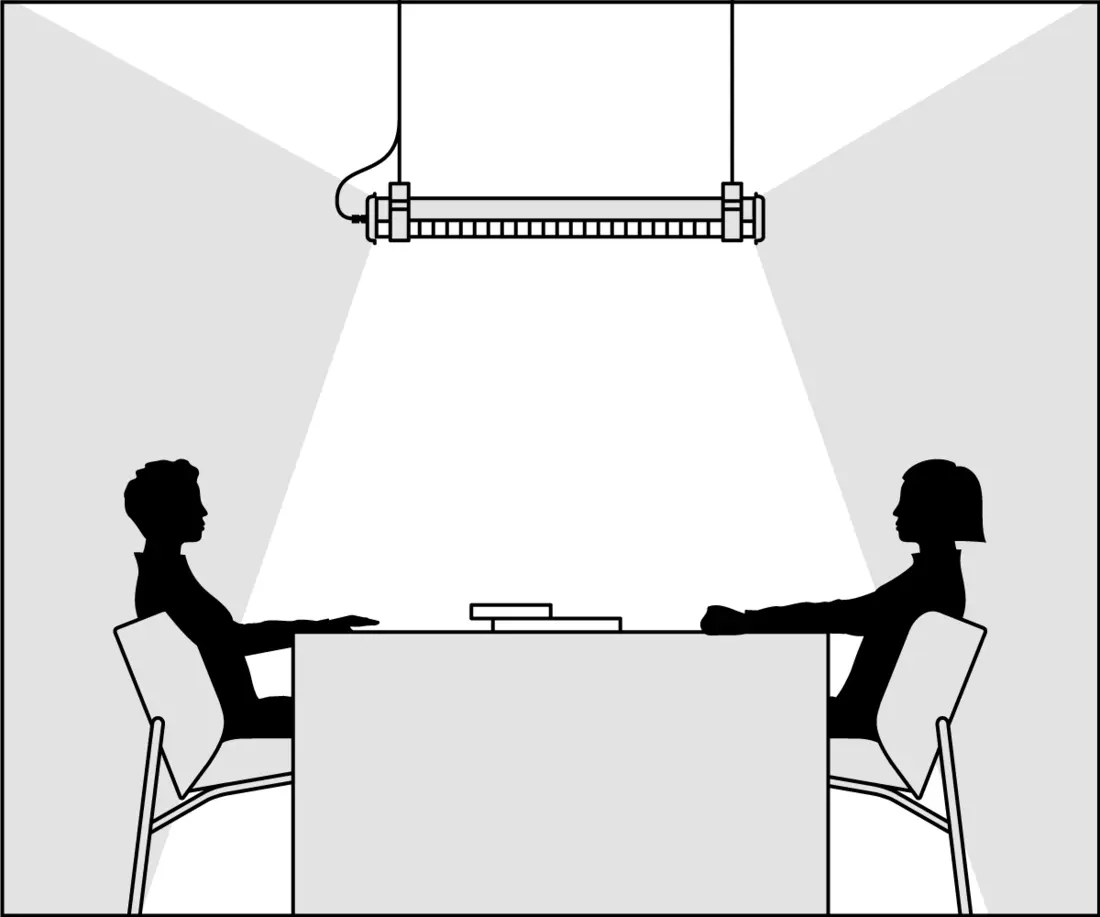

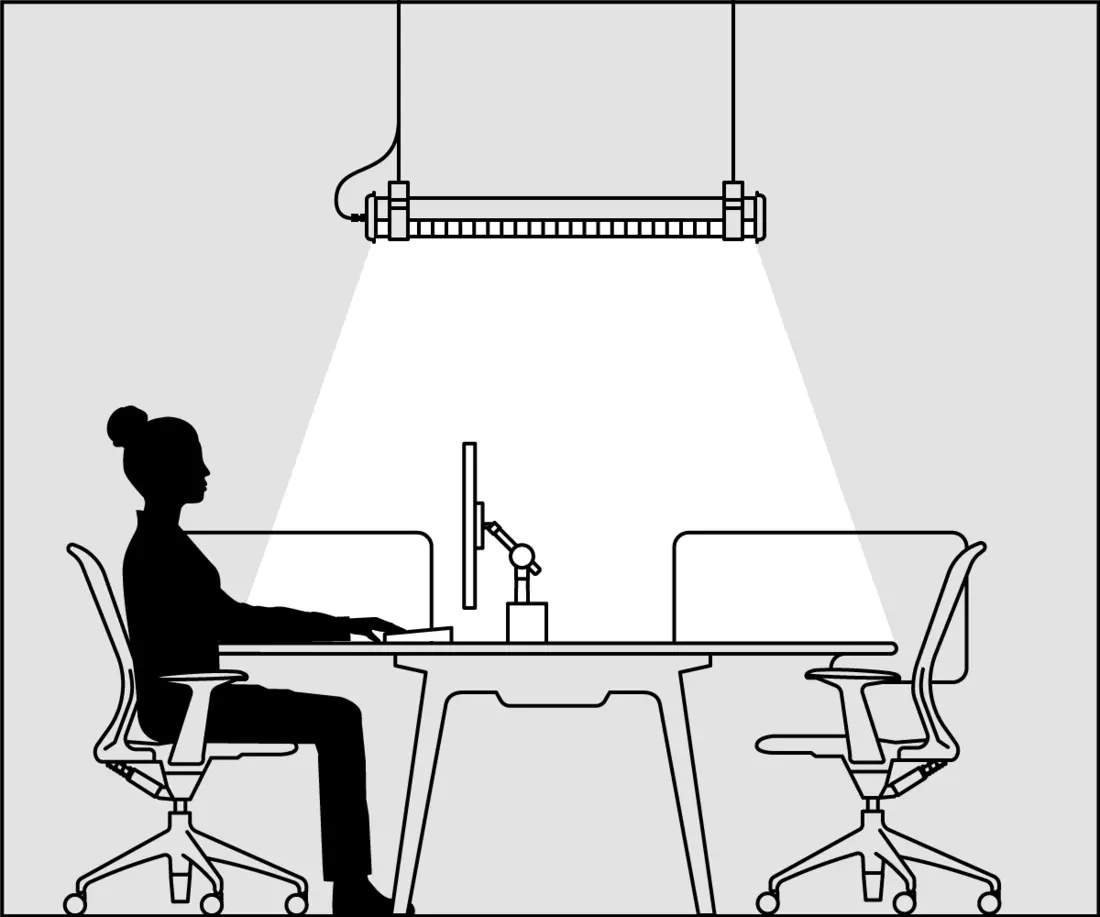

1 luminaire, 3 atmospheres

These models are equipped with 2 drivers, allowing direct and indirect lighting to be managed separately, using the simplest of switches. This modular lighting can adapt to specific activities and to the time of day.

Exceptional quality light

The Brueghel Direct/Indirect light offers unrivalled quality lighting thanks to its Colour Rendering Index of over 90. The colour rendering is perfect and ensures optimal user comfort, coming very close to daylight. The indirect, comfortable and diffuse light provides a source of well-being and a lighting atmosphere bordering on perfection.

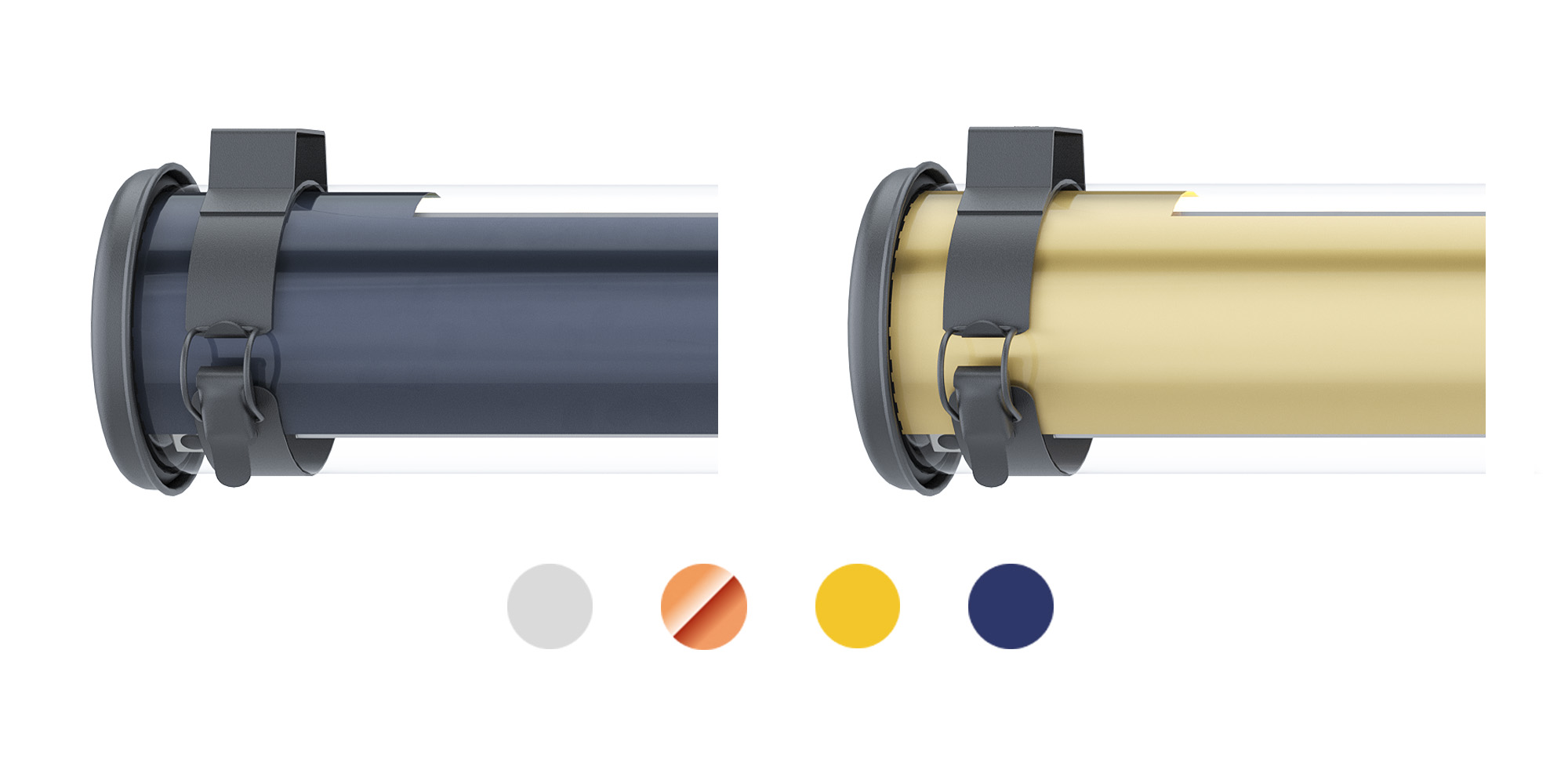

A wide range of finishes

Sammode can offer a full range of options and accessories to enhance your lighting projects. Customise your luminaires with Coal finish end-caps or add a decorative touch with the gear unit cover available in 4 hues – Silver, Copper, Brass or Petrol.

Unrivalled lighting comfort

The low-luminance louvre with high-performance aluminium slats masks the light source and ensures ideal visual comfort for users while working. With the lens design and luminance management, you can forget glare while enjoying exceptional lighting performance.

A durable and sustainable design

Goodbye plastic, hello glass! The Brueghel Direct/Indirect luminaire comprises durable, noble and recyclable materials (stainless steel, high-strength borosilicate glass), offering an authentic gleaming industrial design with unrivalled transparency.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Non-dimmable, separate direct/indirect lighting

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 2100/1100 1007 BRUEGHEL 100 S 1000 2100/1100-930 CL1 CRS PY SUSP 42250002 32 Data sheet Plan STEP DS .TXT Download all
100 2800/1400 1307 BRUEGHEL 100 S 1300 2800/1400-930 CL1 CRS PY SUSP 42250003 41 Data sheet Plan STEP DS .TXT Download all
100 3500/1800 1607 BRUEGHEL 100 S 1600 3500/1800-930 CL1 CRS PY SUSP 42250004 49 Data sheet Plan STEP DS .TXT Download all

2 adresses DALI dimming

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 2100/1100 1007 BRUEGHEL 100 S 1000 2100/1100-930 2RD CL1 CRS PY SUSP 42250005 32 Data sheet Plan STEP DS .TXT Download all
100 2800/1400 1307 BRUEGHEL 100 S 1300 2800/1400-930 2RD CL1 CRS PY SUSP 42250006 41 Data sheet Plan STEP DS .TXT Download all
100 3500/1800 1607 BRUEGHEL 100 S 1600 3500/1800-930 2RD CL1 CRS PY SUSP 42250007 49 Data sheet Plan STEP DS .TXT Download all

Dimmable via bluetooth Casambi

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 2100/1100 1007 BRUEGHEL 100 S 1000 2100/1100-930 RB CL1 CRS PY SUSP 42250091 30 Data sheet Plan STEP DS .TXT Download all
100 2800/1400 1307 BRUEGHEL 100 S 1300 2800/1400-930 RB CL1 CRS PY SUSP 42250092 40 Data sheet Plan STEP DS .TXT Download all
100 3500/1800 1607 BRUEGHEL 100 S 1600 3500/1800-930 RB CL1 CRS PY SUSP 42250093 50 Data sheet Plan STEP DS .TXT Download all

Pre-cabling

Braided tinned copper cable

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
3 CABL OPVC-BRAID 3M 5G1.5 CAB0011 Data sheet Plan STEP DS .TXT Download all

Non-dimmable, separate direct/indirect lighting

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
133 2400/1200 987 BRUEGHEL 133 S 1000 2400/1200-930 CL1 CRS PY SUSP 42350002 36 Data sheet Plan STEP DS .TXT Download all
133 3200/1600 1287 BRUEGHEL 133 S 1300 3200/1600-930 CL1 CRS PY SUSP 42350003 46 Data sheet Plan STEP DS .TXT Download all
133 4000/2000 1587 BRUEGHEL 133 S 1600 4000/2000-930 CL1 CRS PY SUSP 42350004 55 Data sheet Plan STEP DS .TXT Download all

2 adresses DALI dimming

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
133 2400/1200 987 BRUEGHEL 133 S 1000 2400/1200-930 2RD CL1 CRS PY SUSP 42350005 36 Data sheet Plan STEP DS .TXT Download all
133 3200/1600 1287 BRUEGHEL 133 S 1300 3200/1600-930 2RD CL1 CRS PY SUSP 42350006 46 Data sheet Plan STEP DS .TXT Download all
133 4000/2000 1587 BRUEGHEL 133 S 1600 4000/2000-930 2RD CL1 CRS PY SUSP 42350007 55 Data sheet Plan STEP DS .TXT Download all

Dimmable via bluetooth Casambi

CRI90, 3000K

Ø (mm)Flux (lm) direct/indirectL (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
133 2400/1200 987 BRUEGHEL 133 S 1000 2400/1200-930 RB CL1 CRS PY SUSP 42350022 35 Data sheet Plan STEP DS .TXT Download all
133 3200/1600 1287 BRUEGHEL 133 S 1300 3200/1600-930 RB CL1 CRS PY SUSP 42350023 45 Data sheet Plan STEP DS .TXT Download all
133 4000/2000 1587 BRUEGHEL 133 S 1600 4000/2000-930 RB CL1 CRS PY SUSP 42350024 55 Data sheet Plan STEP DS .TXT Download all

Pre-cabling

Braided tinned copper cable

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
3 CABL OPVC-BRAID 3M 5G1.5 CAB0011 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

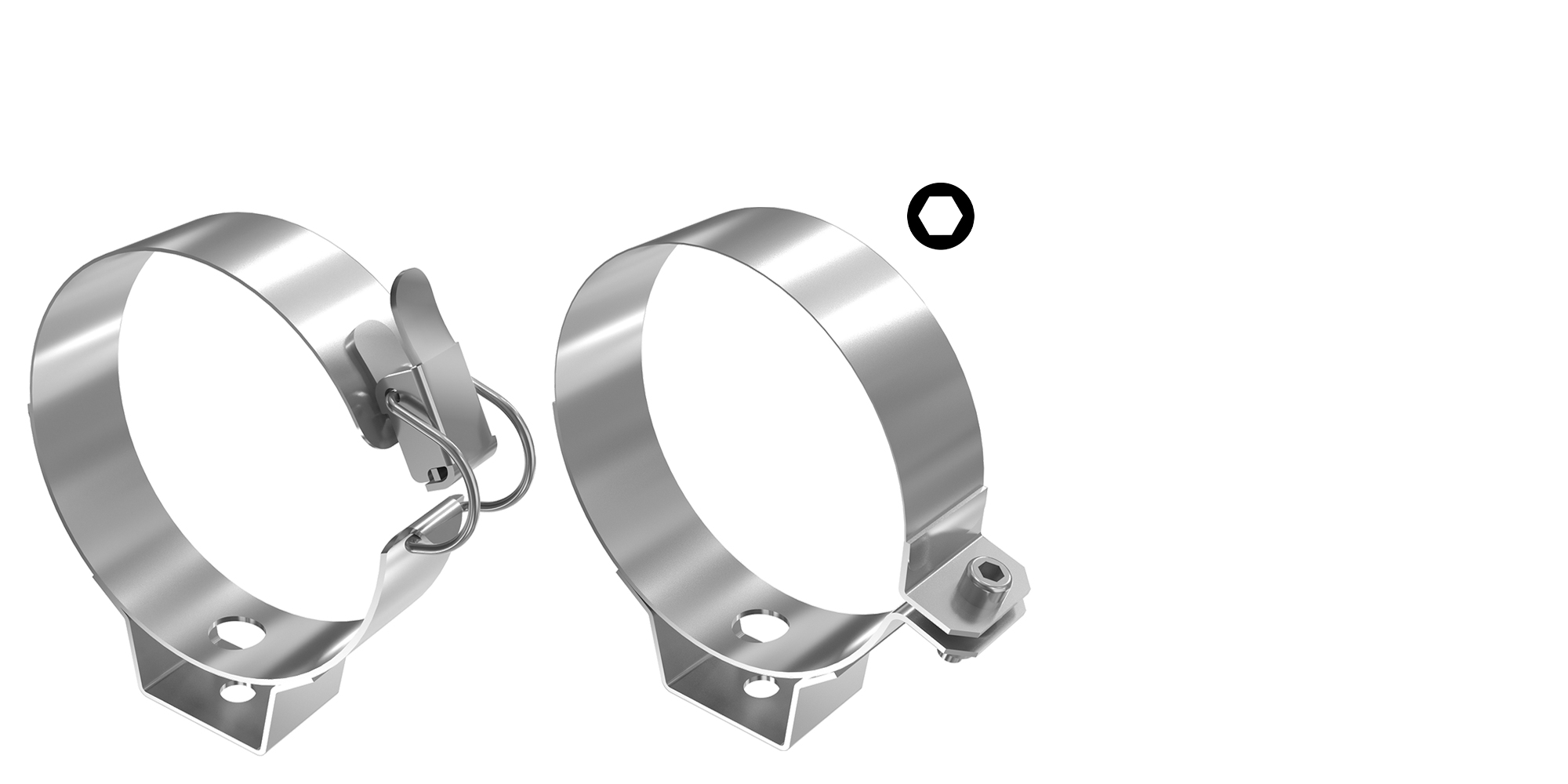

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
Borosilicate glass housing (non-flammable) PY

Color temperature

2700K 827/927
3000K 830/930
4000K 840/940

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Casambi Bluetooth control RB
Non dimmable -

Electrical class

Class I CL1
Class II -
Stainless steel cable plate kit (IP40) 17500020
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011
17500504
17500506

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>90, 3 SDCM)
  • 50 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Low glare louvre with reflector and louvres in high performance aluminium
Lighting comfort
  • Very low glare: UGR ≤19
  • Very low luminance, work on screen compatible: L65°=1500cd/m².
  • Longitudinal glare control: 30° in Ø100, 40° in Ø133, transversal glare control: 30°
Control gear
  • Constant current driver
  • Non dimmable and DALI models : Electronic compatible with central source. LSC model available for emergency lighting compliant with 60598-2-22: please contact us
Supply voltage
  • Non dimmable and DALI models : 220-240V ±10% 0/50/60Hz
  • Casambi models : 220-240V ±10% 50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • Pre-wired version : Stripped free end
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
  • Provided with 2 suspension kits and 3 m of steel wire
LED engine maintenance
  • Maintenance by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Borosilicate glass (IK07), high transparency, scratch-resistent and non-flammable
End caps and fixing straps
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07
Fire resistance
  • Non-flammable

ULR = 33%
