Gounod
A majestic wall light for exceptional spaces

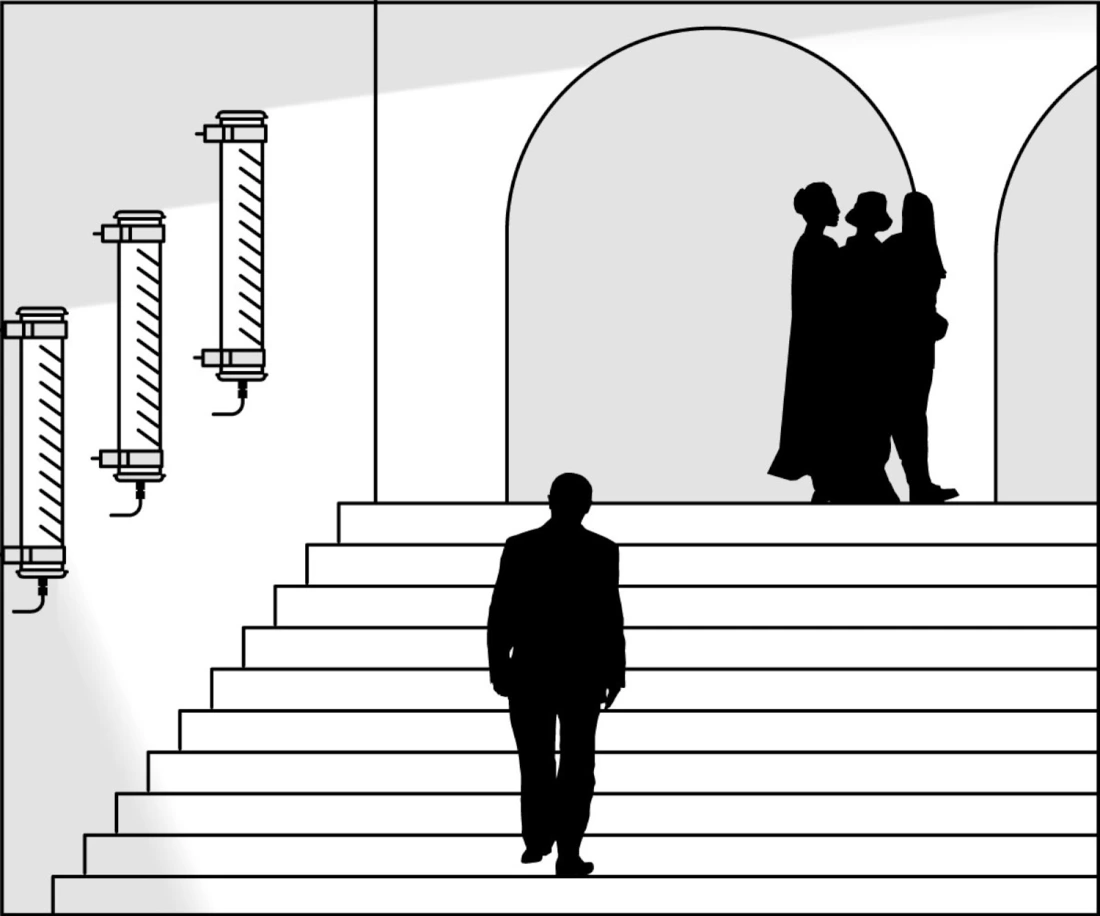

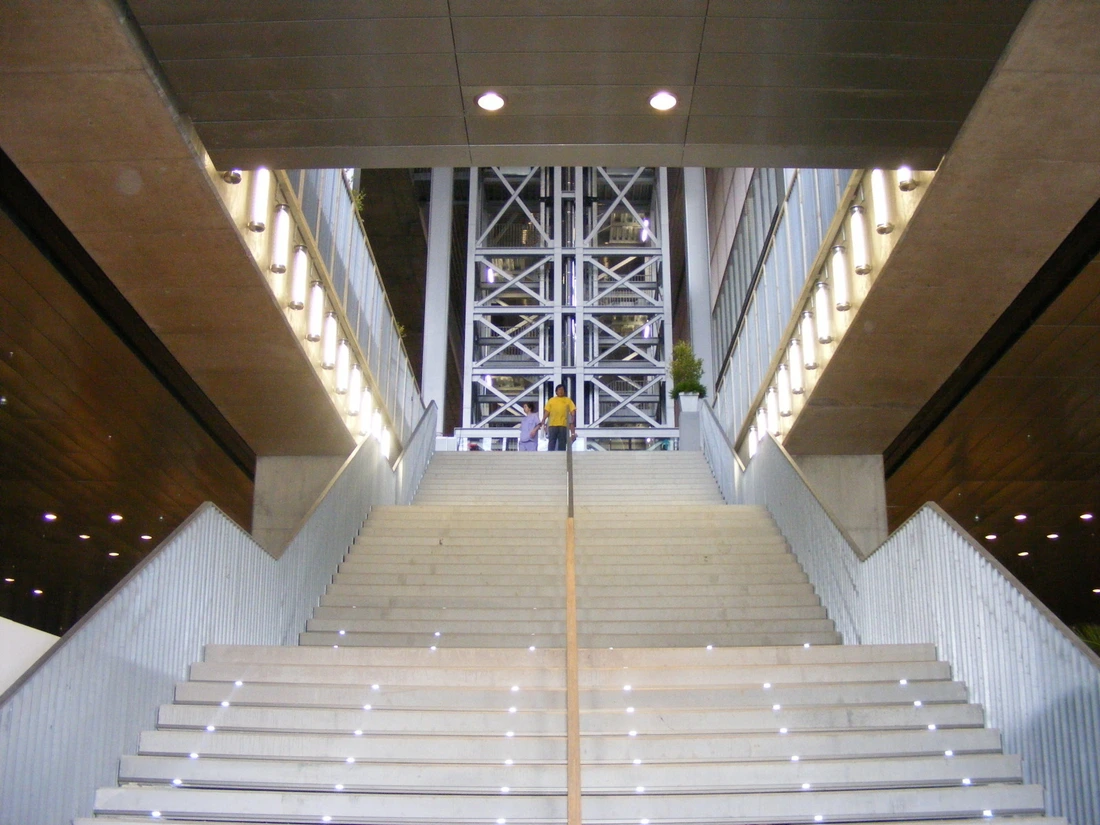

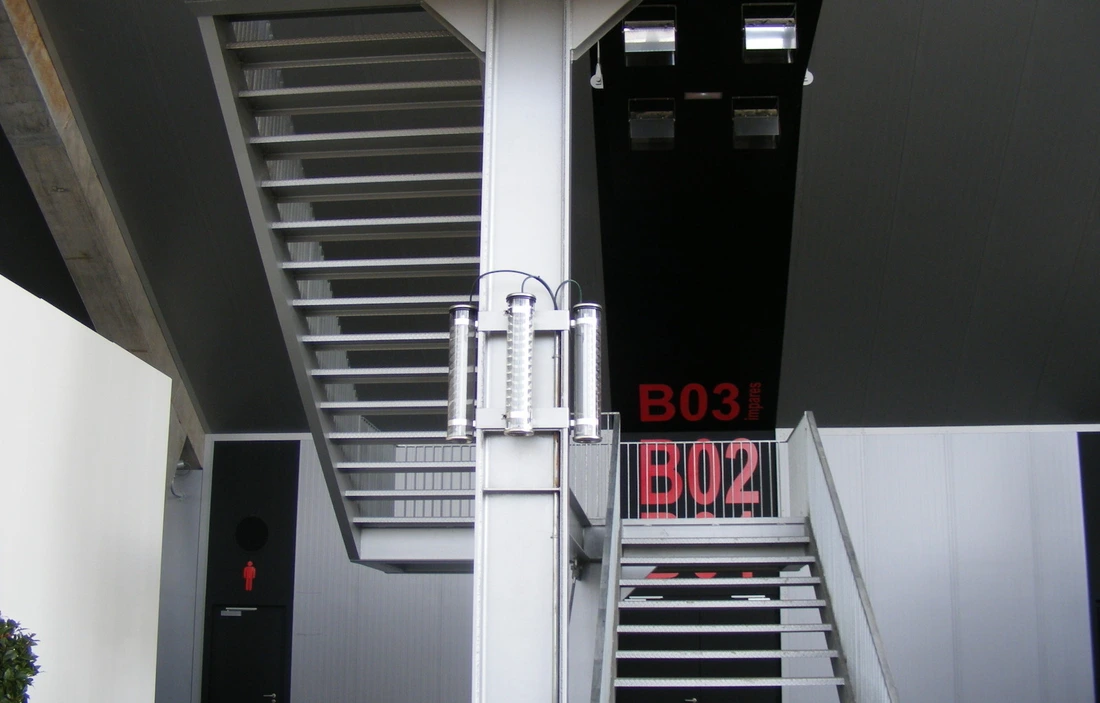

The Gounod luminaire can illuminate the façade of an office block, a show hall entrance area, stadium staircases, a park path, a pool patio area, and plenty more besides.
Directional LED wall light, ø133
With optimal transparency and reflections, this majestic wall light with inclined slats is the extra-wide version of the emblematic Elgar model. Thanks to its large size and strong flux, the Gounod wall light is ideal for large open areas.
Lighting comfort and power
With its distinctive louvre, the Gounod tubular luminaire combines powerful lighting with visual comfort. The inclined slats reflect the light towards the ground while concealing the source. Guaranteed efficiency and lighting comfort for durable lighting in the most majestic architectural spaces.
The right atmosphere for each finish.

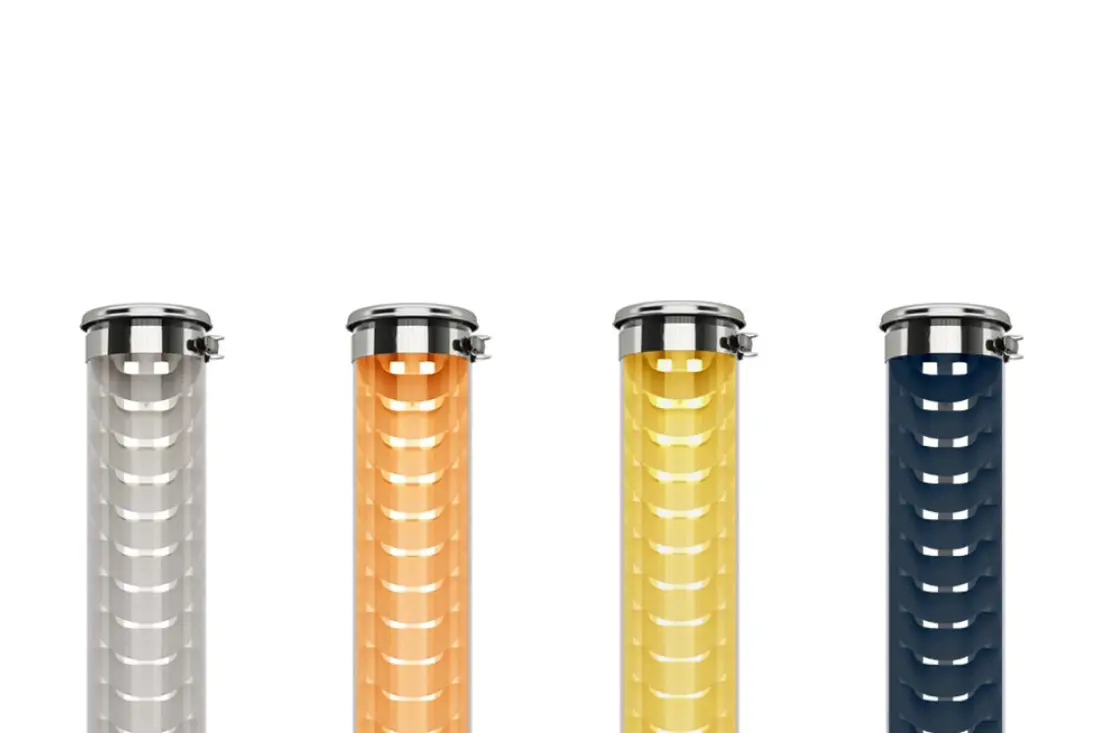

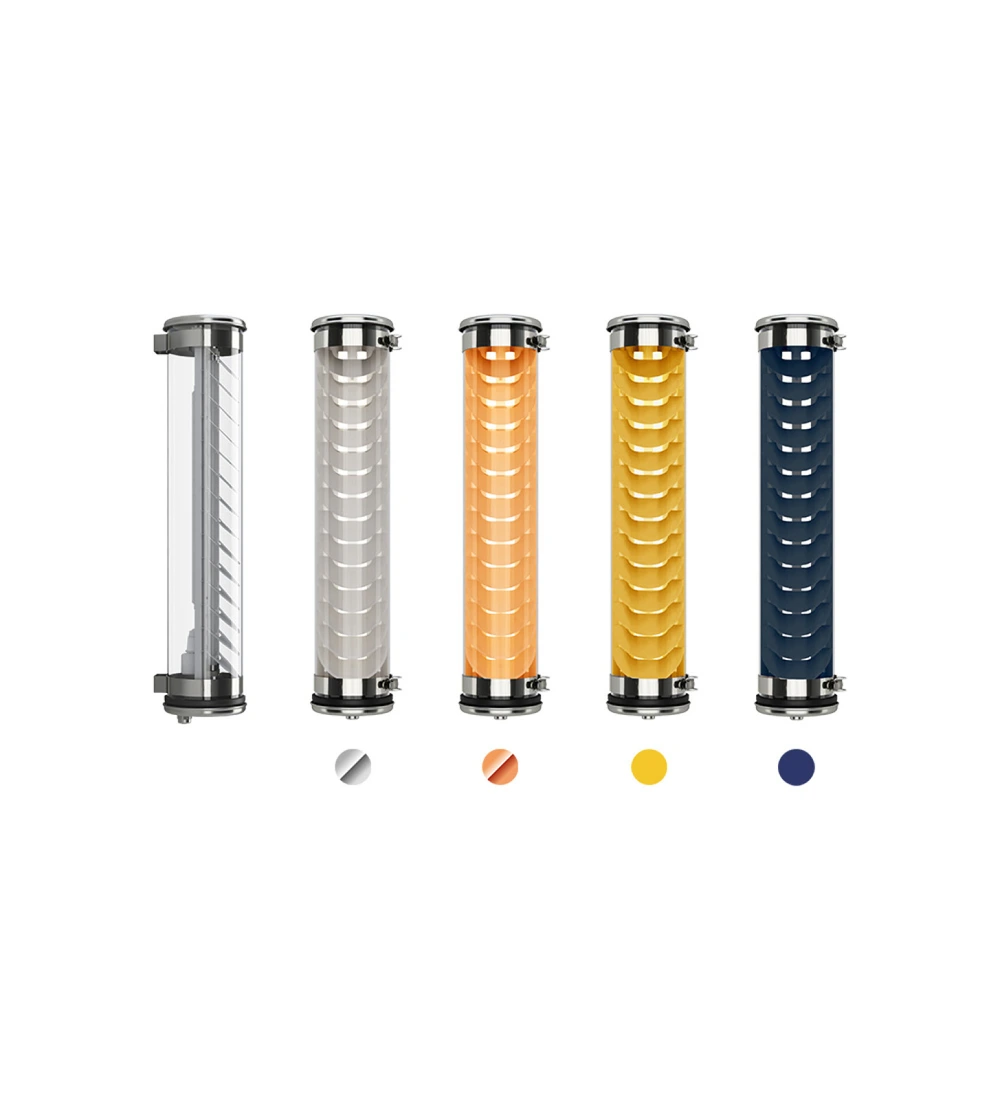

The four hues proposed for the anodised aluminium louvre play on reflections and create a range of lighting atmospheres. Opt for a brass or copper finish for a cosy atmosphere. For a classy industrial look, opt for the Silver reflector, or the Petrol version combined with the lacquered Coal black end-caps and fixing straps.
A large designer wall light

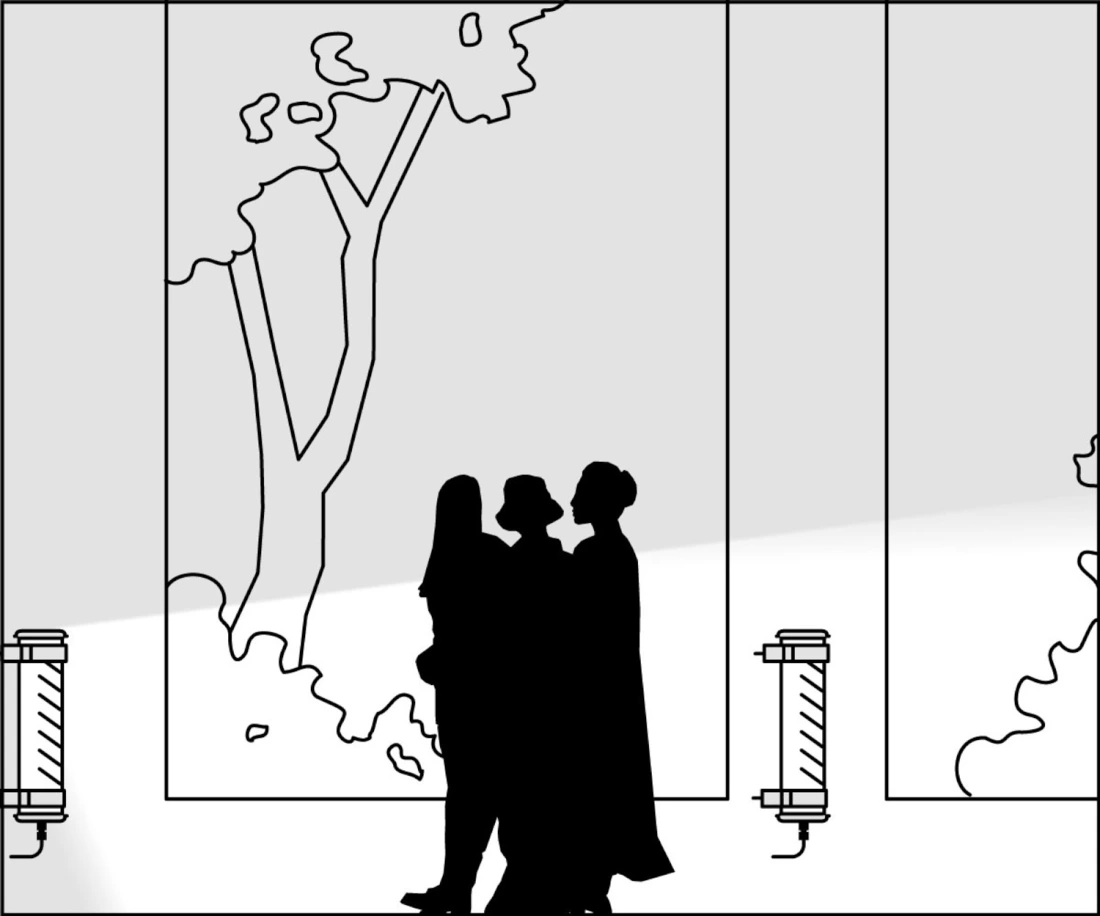

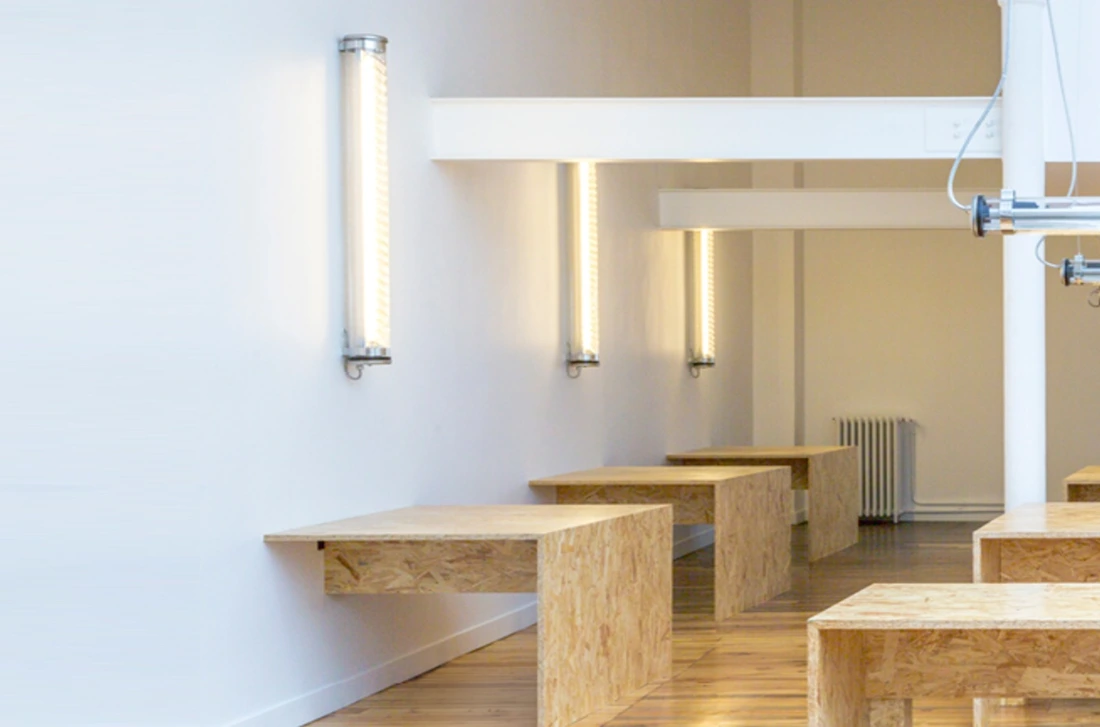

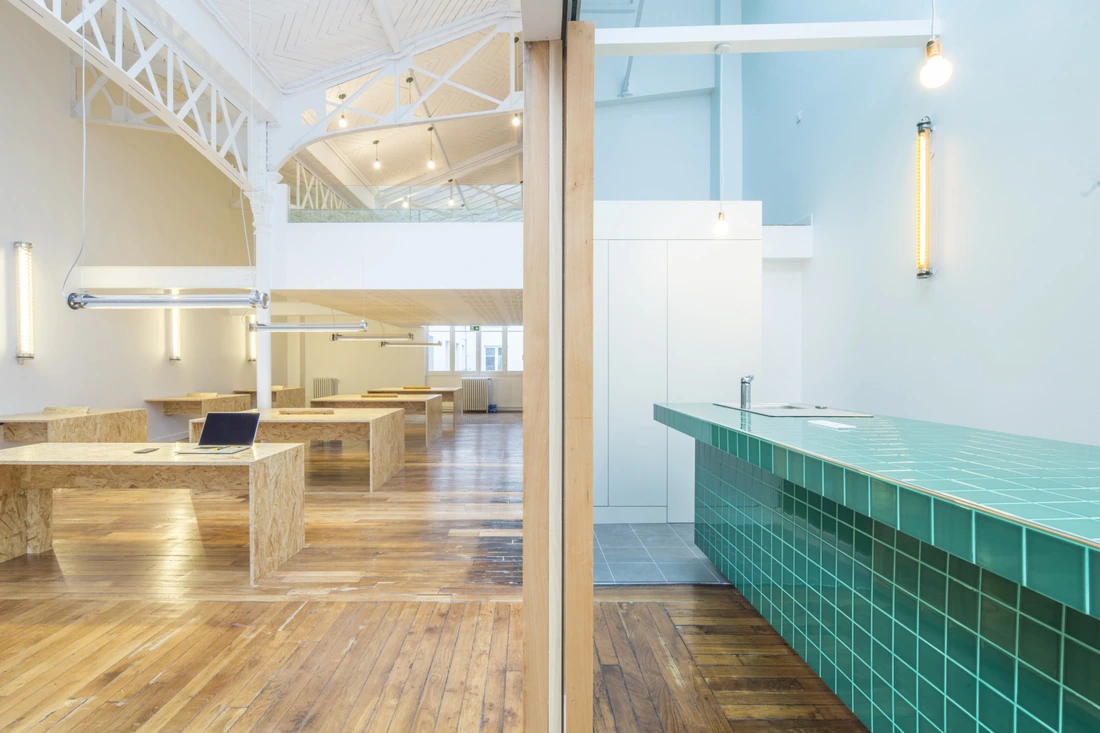

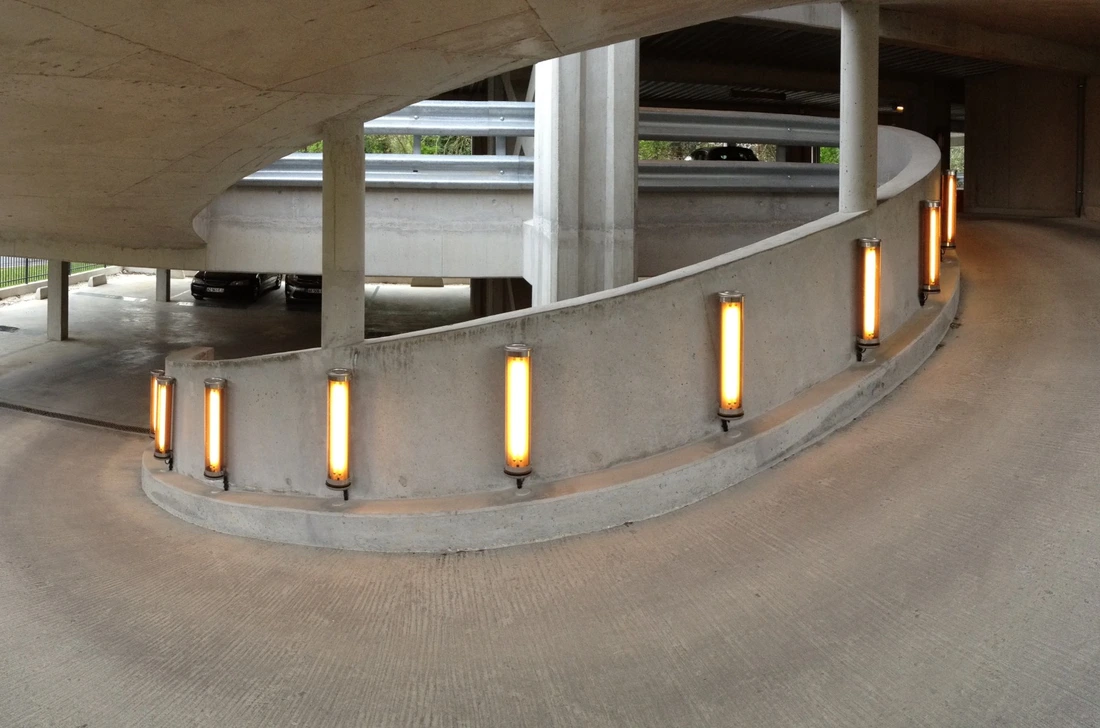

Whether fitted alone, as a totem, or in a cluster, the Gounod luminaire is ideal for lighting up corridors, halls and outdoor areas. This luminaire is available in 3 lengths, and can be positioned near to the ground to mark out a specific area. The larger version of this luminaire can be installed on a wall and will guide visitors with its abundant light.
A luminaire built to last
The Gounod luminaire is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular range, and is ideal both outdoors and indoors. The robust materials used (stainless steel and IK10 composite diffusers) ensure that these fixtures are durable and able to resist both UV radiation and vandalism.
Sammode expertise
Designed and manufactured in France
Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.
5-year indoor-outdoor warranty
Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.
Our products can be fully repaired or upgraded at your site
Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!
Natural light
3000 K
|
|
 |
| Reflector | Flux (lm) | L (mm) | Designation | Code | Watt | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 2700 | 995 | GOUNOD 133 S 1000 2700-830 | 16556040 | 31 | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 3600 | 1295 | GOUNOD 133 S 1300 3600-830 | 16556050 | 39 | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 4500 | 1595 | GOUNOD 133 S 1600 4500-830 | 16556060 | 51 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 2700 | 995 | GOUNOD 133 C 1000 2700-830 | 16557105 | 31 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 3600 | 1295 | GOUNOD 133 C 1300 3600-830 | 16557106 | 39 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 4500 | 1595 | GOUNOD 133 C 1600 4500-830 | 16557107 | 51 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 2700 | 995 | GOUNOD 133 B 1000 2700-830 | 16557111 | 44 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 3600 | 1295 | GOUNOD 133 B 1300 3600-830 | 16557112 | 57 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 4500 | 1595 | GOUNOD 133 B 1600 4500-830 | 16557113 | 70 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 2700 | 995 | GOUNOD 133 P 1000 2700-830 | 16557114 | 44 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 3600 | 1295 | GOUNOD 133 P 1300 3600-830 | 16557115 | 57 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 4500 | 1595 | GOUNOD 133 P 1600 4500-830 | 16557116 | 70 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|
Warm light
2700 K
|
|
|
| Reflector | Flux (lm) | L (mm) | Designation | Code | Watt | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 2700 | 995 | GOUNOD 133 S 1000 2700-827 | 16557225 | 31 | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 3600 | 1295 | GOUNOD 133 S 1300 3600-827 | 16557245 | 39 | Data sheet | Plan | STEP DS | .TXT | Download all | Silver | 4500 | 1595 | GOUNOD 133 S 1600 4500-827 | 16557246 | 51 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 2700 | 995 | GOUNOD 133 C 1000 2700-827 | 16557133 | 31 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 3600 | 1295 | GOUNOD 133 C 1300 3600-827 | 16557252 | 39 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI COPPER[GRDID133CU] | 4500 | 1595 | GOUNOD 133 C 1600 4500-827 | 16557247 | 51 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 2700 | 995 | GOUNOD 133 B 1000 2700-827 | 16557253 | 44 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 3600 | 1295 | GOUNOD 133 B 1300 3600-827 | 16557251 | 57 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI BRASS [GRDI-D133-BRASS] | 4500 | 1595 | GOUNOD 133 B 1600 4500-827 | 16557248 | 70 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 2700 | 995 | GOUNOD 133 P 1000 2700-827 | 16557254 | 44 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 3600 | 1295 | GOUNOD 133 P 1300 3600-827 | 16557250 | 57 | Data sheet | Plan | STEP DS | .TXT | Download all | GRDI PETROL [GRDI-D133-PETROL] | 4500 | 1595 | GOUNOD 133 P 1600 4500-827 | 16557249 | 70 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|
×
![]()
End caps & fixing straps finish
| End caps & straps painted Coal RAL7021 | COAL |
Aluminium gear unit cover
| Silver | CRS |
| Copper | CRC |
| Brass | CRB |
| Petrol | CRP |
Fixing straps
| Fixing straps | - |
| Fixing straps with HSHC screw | BRV |
| Fixing straps with tamper-resistant Torx screw | BRVT |
Materials
| Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) | - |
| Polycarbonate housing (960°C) | PO |
| End caps & fixing straps 304L stainless steel | - |
| End caps & fixing straps 316L stainless steel | MR |
Color temperature
| 2700K | 827 |
| 3000K | 830 |
| 4000K | 840 |
Lighting management
| Electronic gear unit for DALI 2 dimming | RD |
| Electronic gear unit for push button | RS |
| Switch-off warning function (for sensor/timer) | RC |
| Casambi Bluetooth control | RB |
| Non dimmable | - |
Electrical class
| Class I | CL1 |
| Class II | - |
| Stainless steel cable plate kit (IP40) 17500020 |
| Pre-cabling 1,5m 3G1.5 (3 wires) Braided tinned copper cable CAB0007 | |
| Pre-cabling 1,5m 5G1.5 (3 wires) Braided tinned copper cable CAB0010 |
| Vertical suspension kit 17500172 |
Technical specifications
| Light source |
|
| Optics |
|
| Lighting comfort |
|
| Control gear |
|
| Supply voltage |
|
| Electrical class |
|
| Operating temperature |
|
| Connection |
|
| Opening and closing |
|
| Mounting |
|
| LED engine maintenance |
|
| Internal grid |
|
| Housing |
|
| End caps and fixing straps |
|
| Waterproofness |
|
| Resistance to IK shocks |
|
| Fire resistance |
|
ULR = 32%
