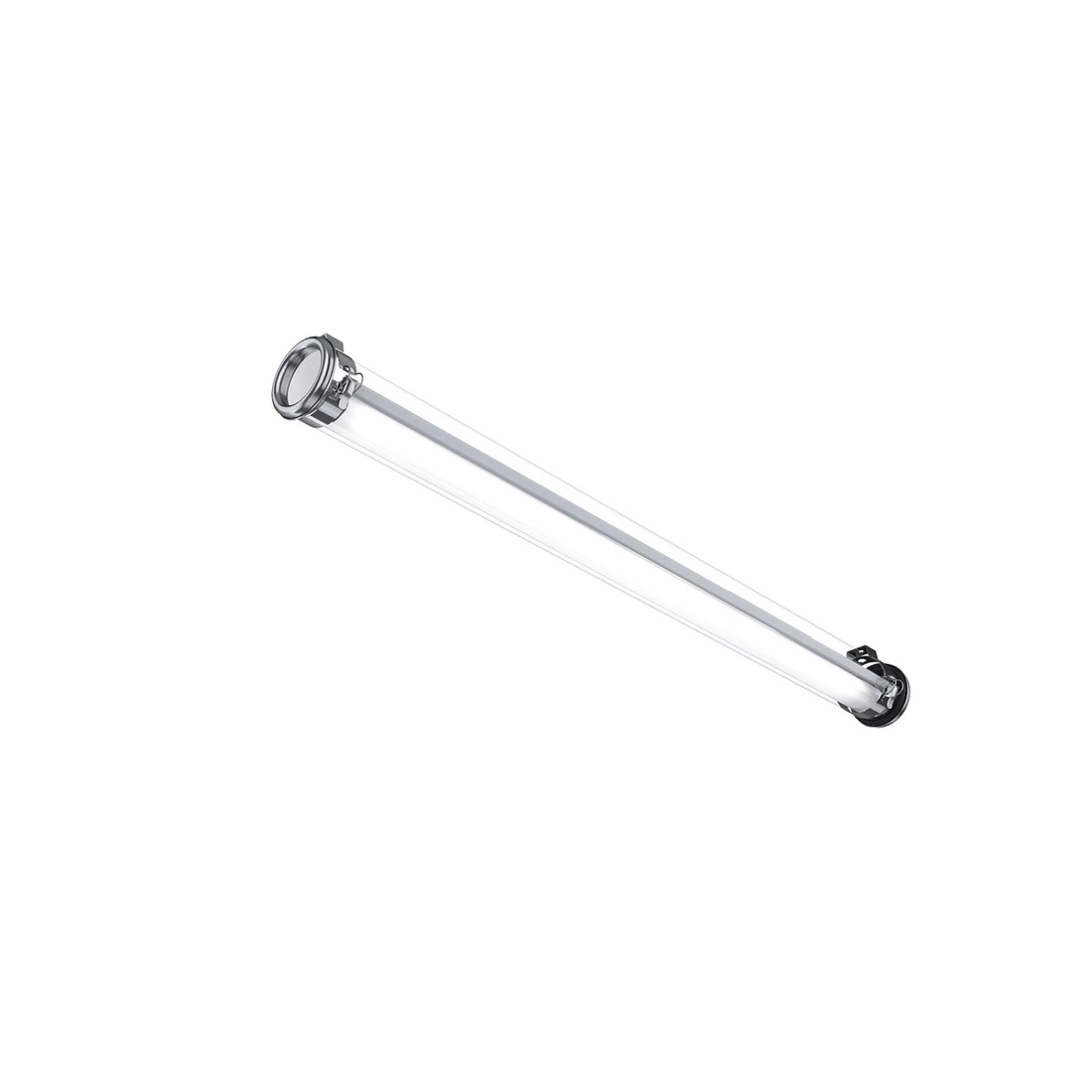

LED tubular light ø100 & 133 for industrial ATEX environments, zones 2, 21 & 22

Jamin ATEX tubular luminaires offer solid proof that not all emergency lights are heavy-duty models and complex to install. They are easy to fit, and can be repaired or upgraded. This model is durably sealed and highly resistant to corrosive agents and UVs, so is suitable for ATEX environments, zones 2 and 21/22.

The Jamin tubular luminaire can withstand the extreme conditions of ATEX environments.

Chemical and sealing conditions

Corrosive substances, acid vapours

Oils & hydrocarbons

UV radiation and bad weather

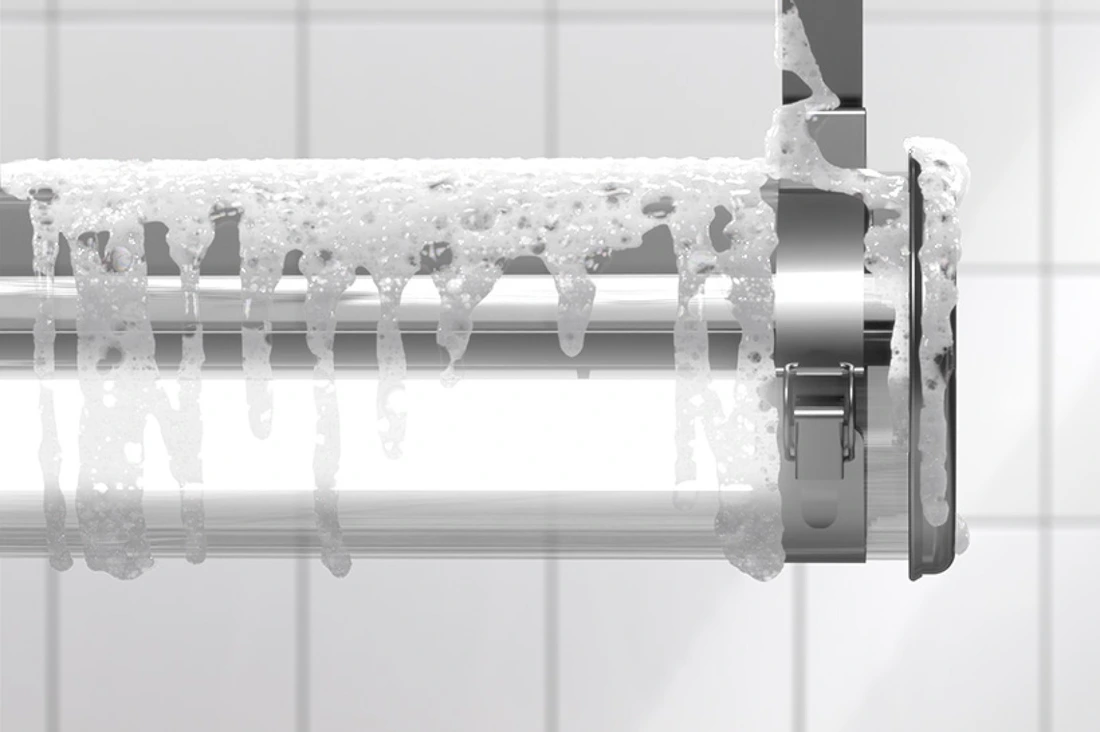

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 35°C

Repeated turning on and off

Heavy mechanical impacts

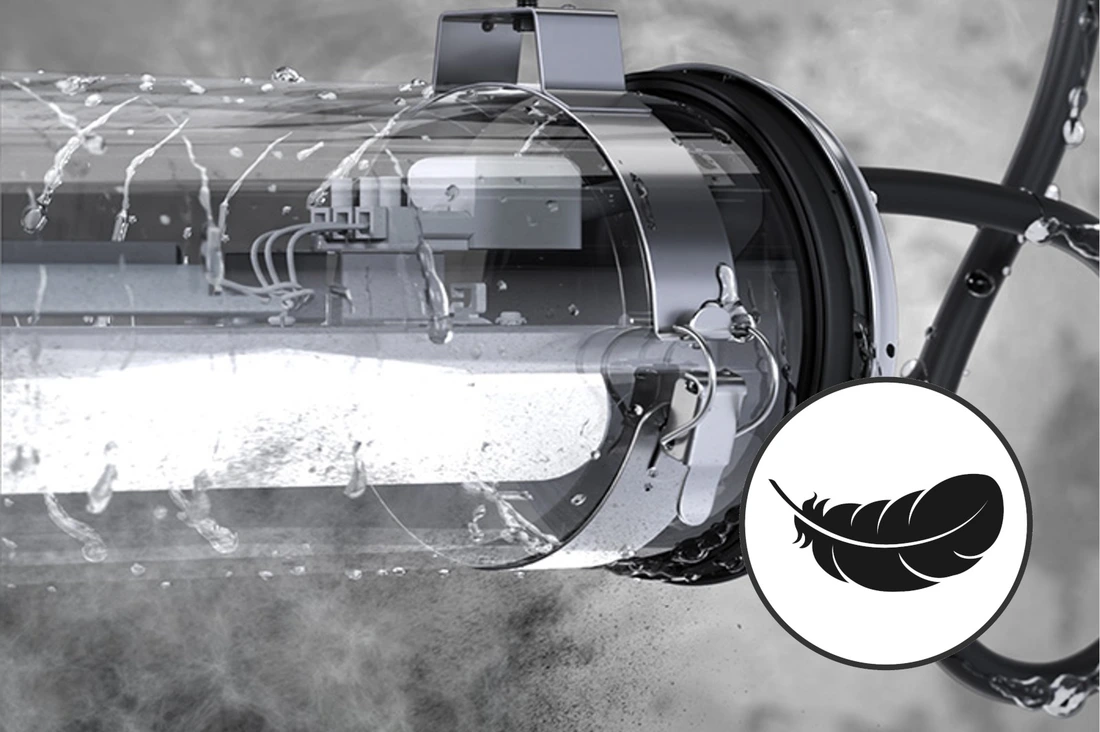

Minimal weight for maximum toughness

Opt for the perfect combination of sturdiness and lightness thanks to smart ATEX protection using lightweight components fitted in a Sammode weight-optimised housing. The result? A product that is far simpler to handle than its rivals, making your life even easier!

Easy to install

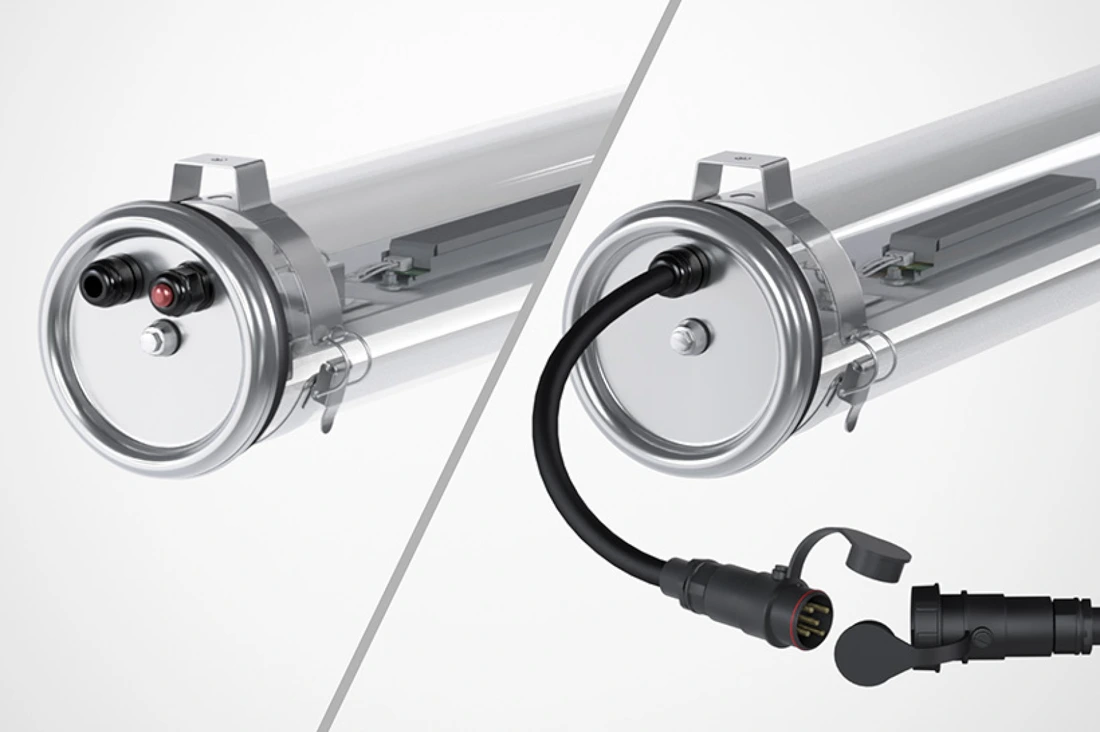

Sammode has everything covered! Versions with 2 cable glands and connection to a smart sliding gear tray (patented SLIDE© system) are also available. Or a pre-cabled version with a pluggable Atex lead, cutting down on site time with no risk of losing parts.

Health and safety in your ATEX zones

Ultimate IP68 and IP69K sealing! Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed to prevent humidity or fine dust from entering and to withstand high-pressure washing. Guaranteed health and safety, everywhere and well into the future!

Shock-proof and corrosion-proof

External 100% stainless steel parts, combined with a composite diffuser in co-extruded polycarbonate-PMMA, offering exceptional resistance to detergents, acid vapours, IK10 mechanical impacts and UV radiation.

Guaranteed peace of mind and energy savings

High-performance LED components, designed to be compatible with any lighting environment, no matter how tough. Installing the right lighting with durable components is still the most effective possible way to cut your operating costs.

Replacement 1-hour lighting option with long-life batteries

Sammode has equipped this model with an emergency lighting button available as an option, to ensure even higher levels of safety In the event of a power outage, the emergency unit takes over for 1 hour thanks to the built-in lithium-ion batteries, a lighter, more powerful and longer-lasting option.

Applications of luminaires by the name Jamin

  • Pharmaceutical industry: lighting in chemical storage areas
  • Sawmills: lighting for sawing and crushing units
  • Manufacturing: lighting in lacquering areas

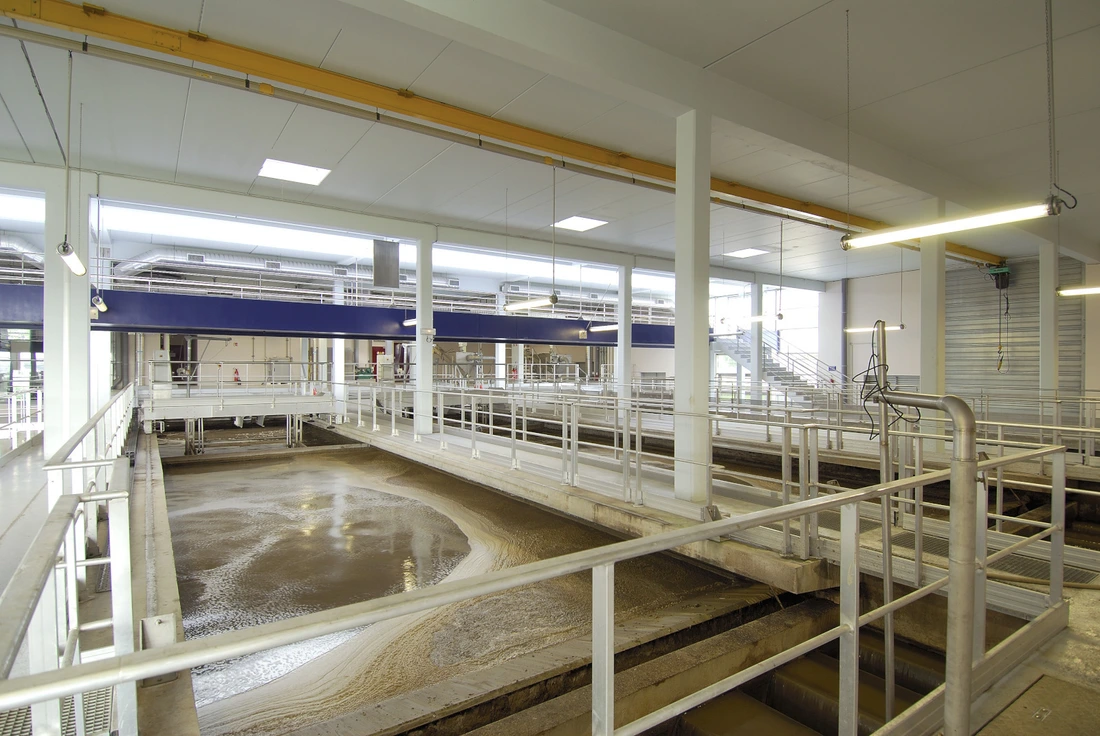

  • Purification unit: settling tank lighting
  • Refinery: general lighting
  • Biomass heating plant: lighting of outdoor areas

  • Bakery: lighting in flour storage areas
  • Brewery: grain silo lighting

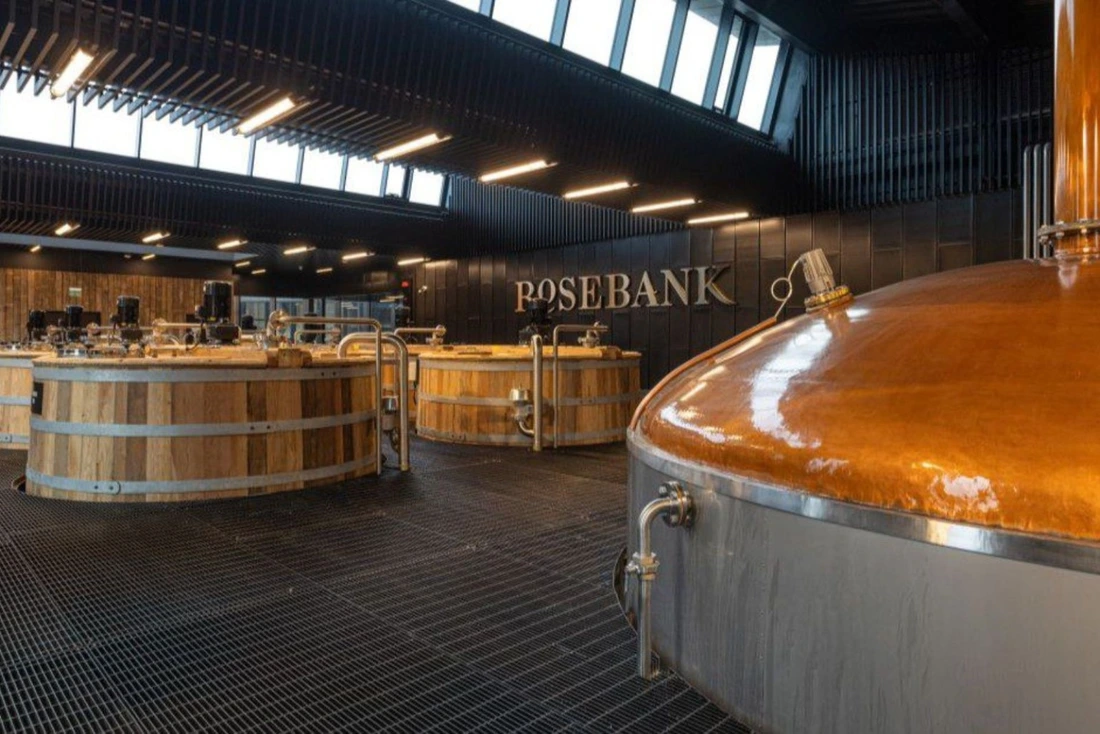

  • Distillery: barrel storage lighting

  • Port terminal: coal silo lighting

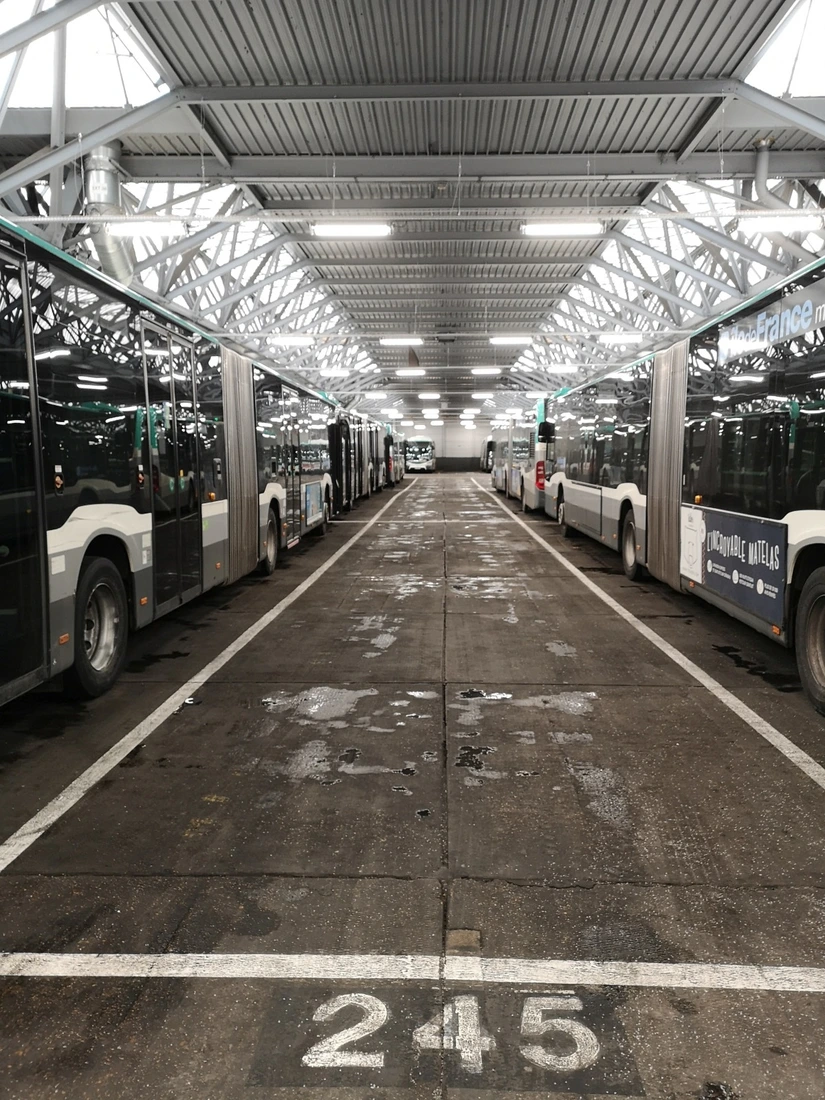

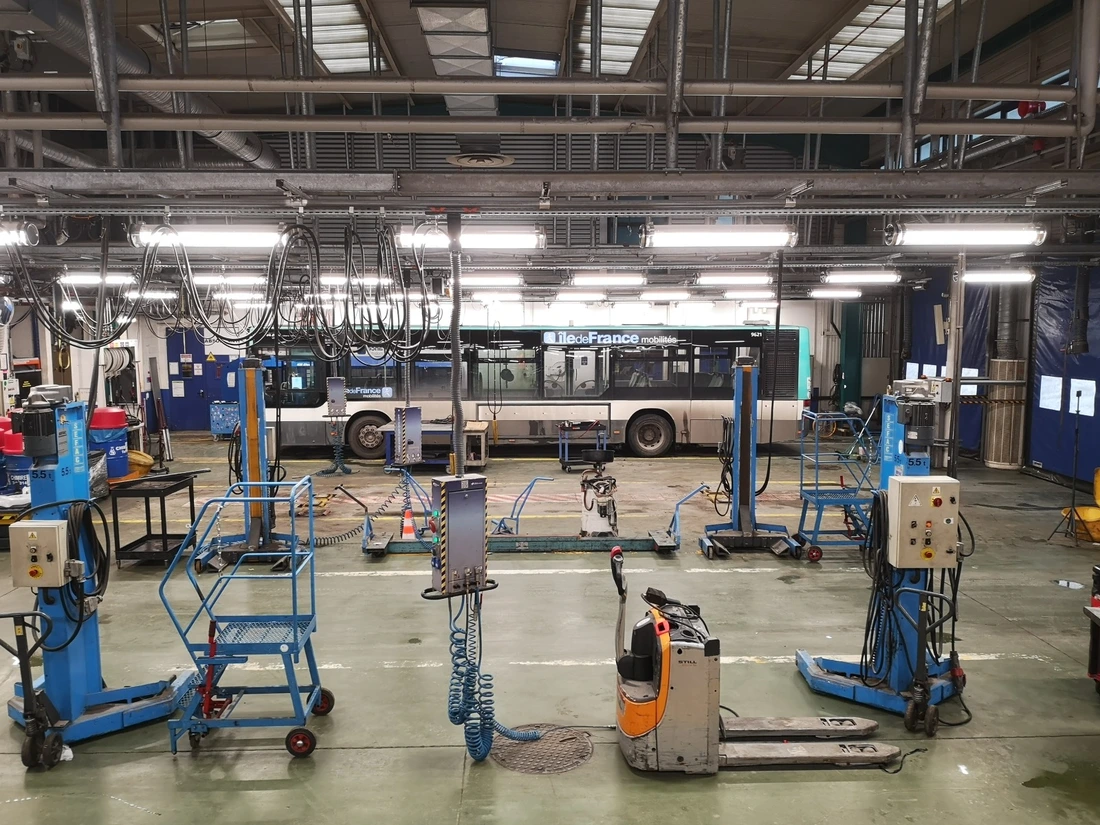

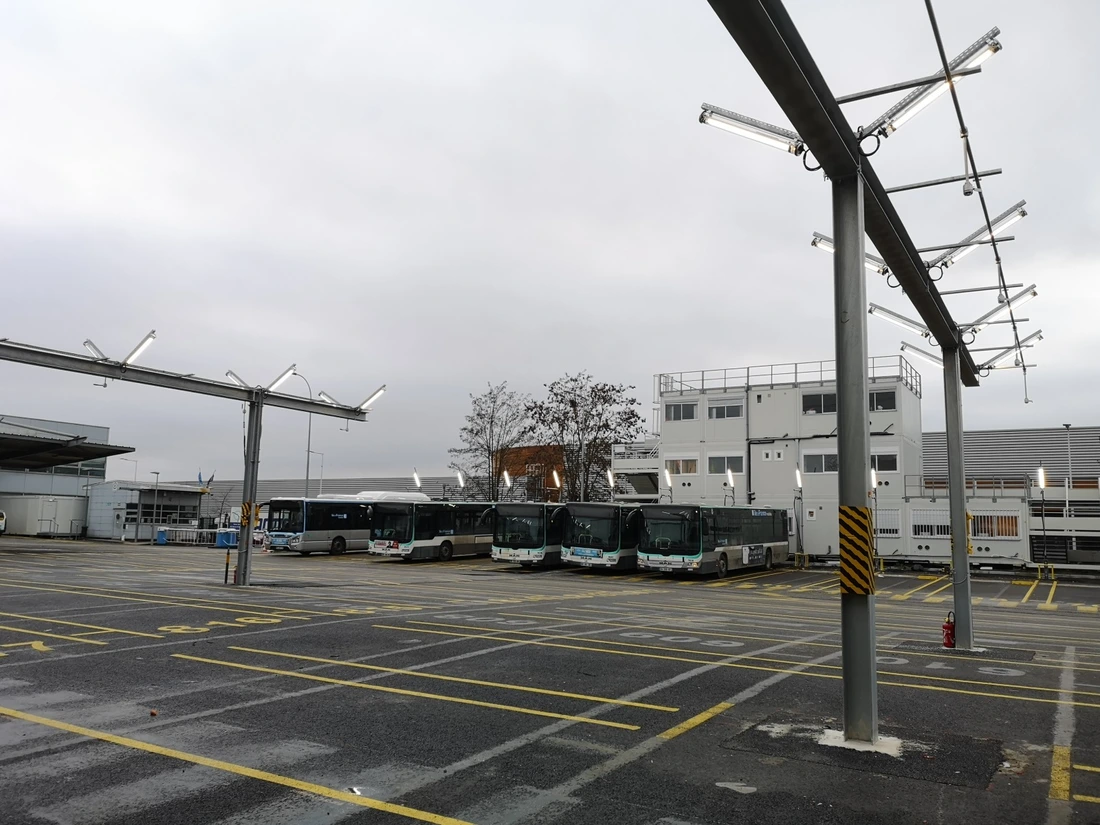

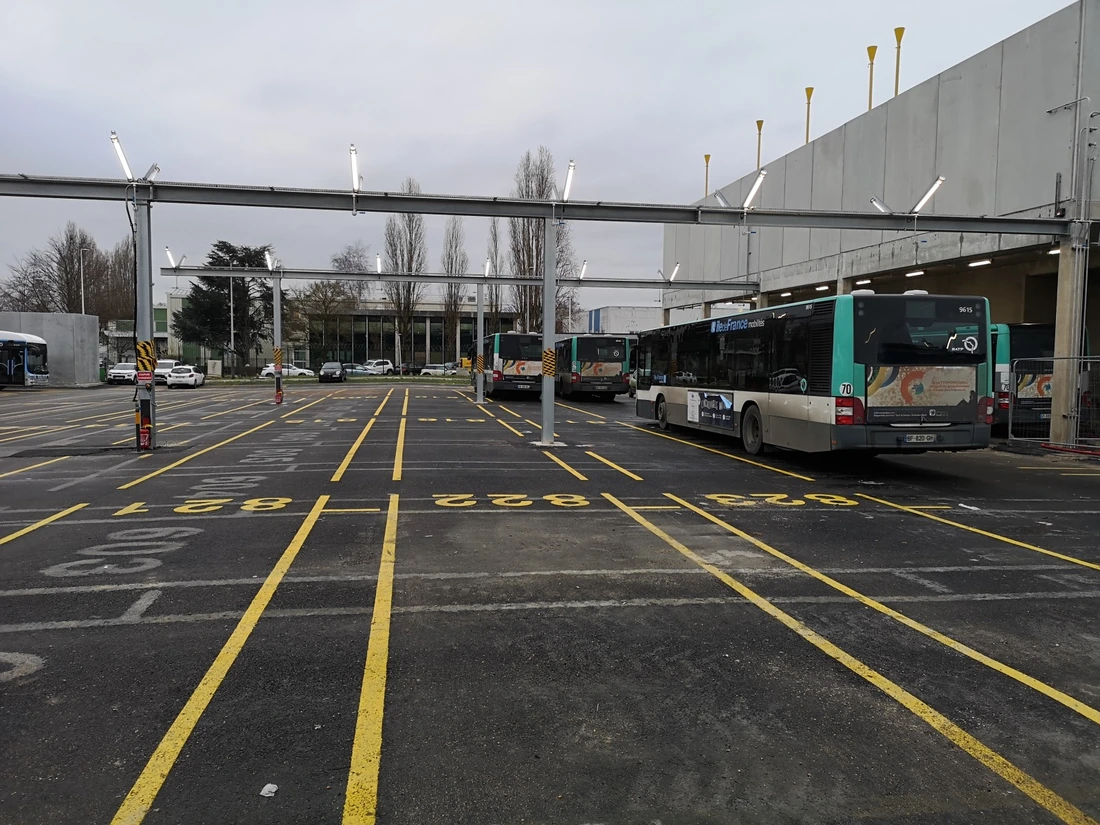

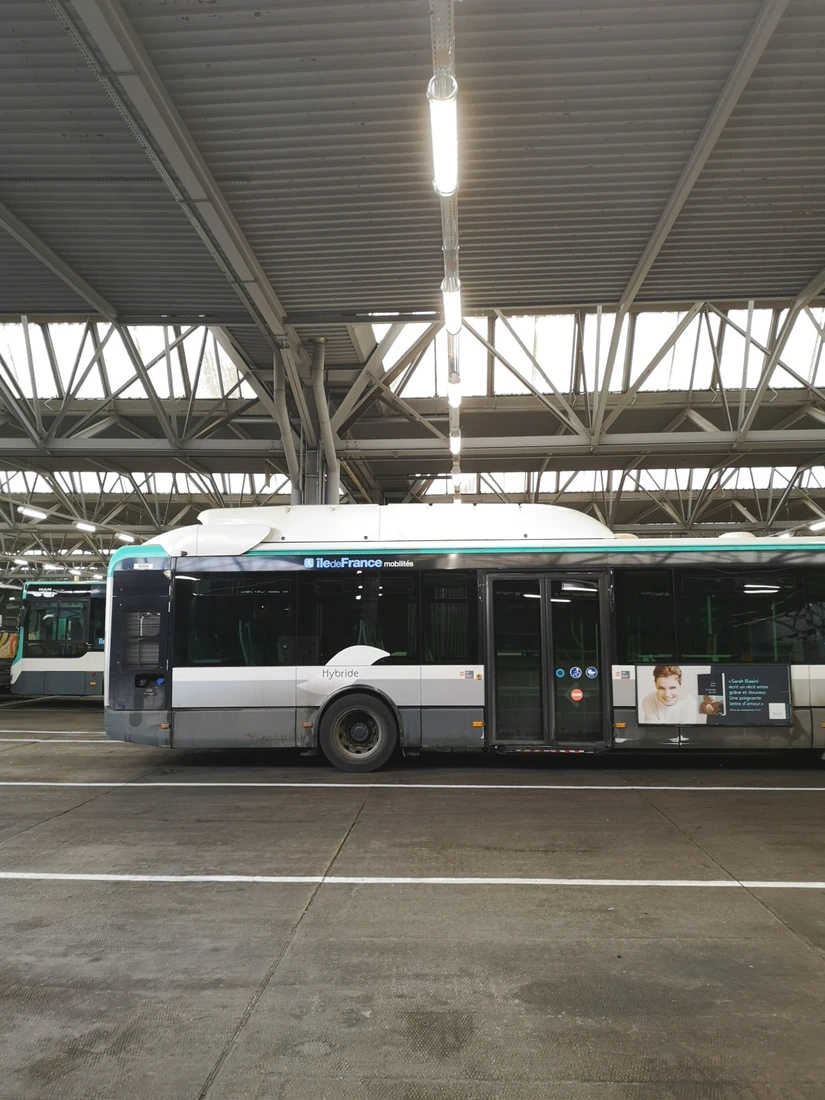

  • Bus depots: charging station lighting
  • Service station: lighting for secondary buildings

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Product with Atex certification for gas zones 2 and dust zones 21 & 22, issued by an independent laboratory. 8-year warranty you will not find anywhere else on the market, valid even for 24/7 use at the product’s maximum operating temperature.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

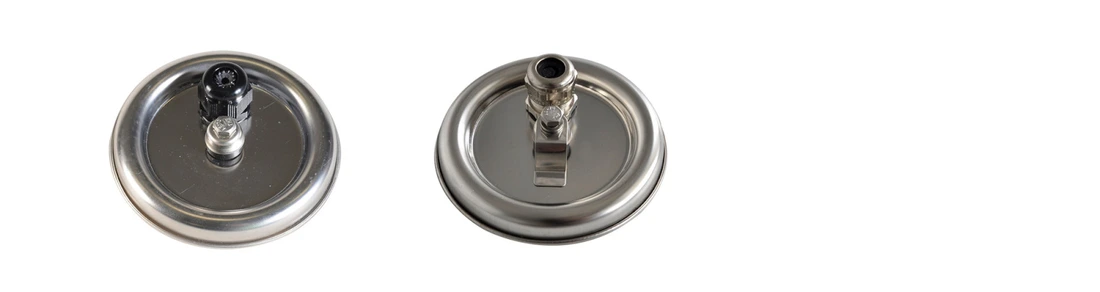

2 cable glands version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 708 JAM100 12H840 POME 213 BRS 19875100 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1018 JAM100 13H840 POME 213 BRS 19875200 22 Data sheet Plan STEP DS .TXT Download all
100 3700 1318 JAM100 14H840 POME 213 BRS 19875359 28 Data sheet Plan STEP DS .TXT Download all
100 4625 1618 JAM100 15H840 POME 213 BRS 19875300 34 Data sheet Plan STEP DS .TXT Download all
133 5550 995 JAM133 23H840 POME 213 BRS 19885100 43 Data sheet Plan STEP DS .TXT Download all
133 7400 1295 JAM133 24H840 POME 213 BRS 19885257 57 Data sheet Plan STEP DS .TXT Download all
133 9250 1595 JAM133 25H840 POME 213 BRS 19885120 71 Data sheet Plan STEP DS .TXT Download all

1 cable gland version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 708 JAM100 12H840 POME 113 BRS 19870020 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1018 JAM100 13H840 POME 113 BRS 19870040 22 Data sheet Plan STEP DS .TXT Download all
100 3700 1318 JAM100 14H840 POME 113 BRS 19875358 28 Data sheet Plan STEP DS .TXT Download all
100 4625 1618 JAM100 15H840 POME 113 BRS 19870060 34 Data sheet Plan STEP DS .TXT Download all
133 5550 995 JAM133 23H840 POME 113 BRS 19880020 43 Data sheet Plan STEP DS .TXT Download all
133 7400 1295 JAM133 24H840 POME 113 BRS 19885256 57 Data sheet Plan STEP DS .TXT Download all
133 9250 1595 JAM133 25H840 POME 113 BRS 19880040 71 Data sheet Plan STEP DS .TXT Download all

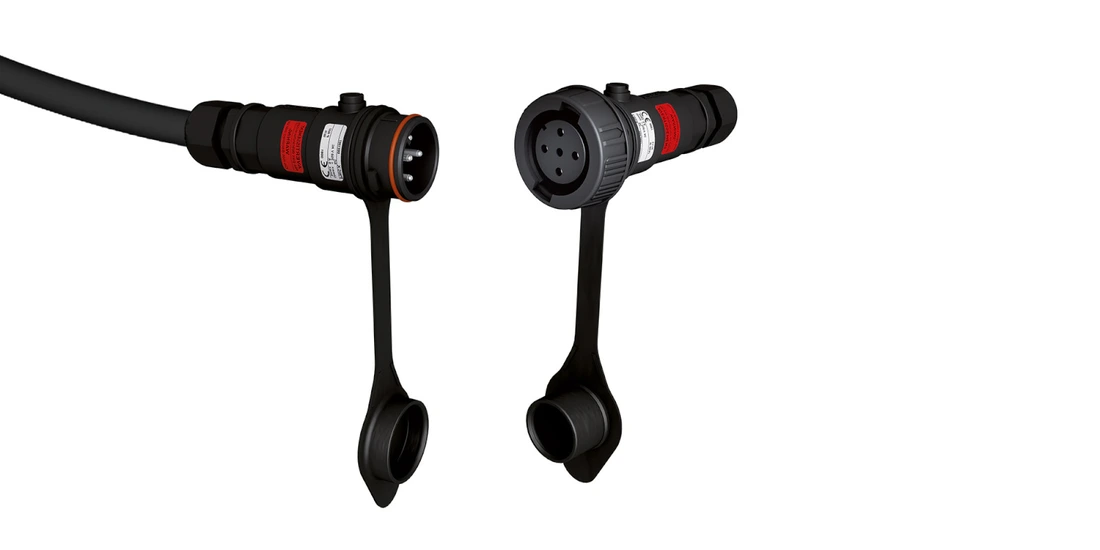

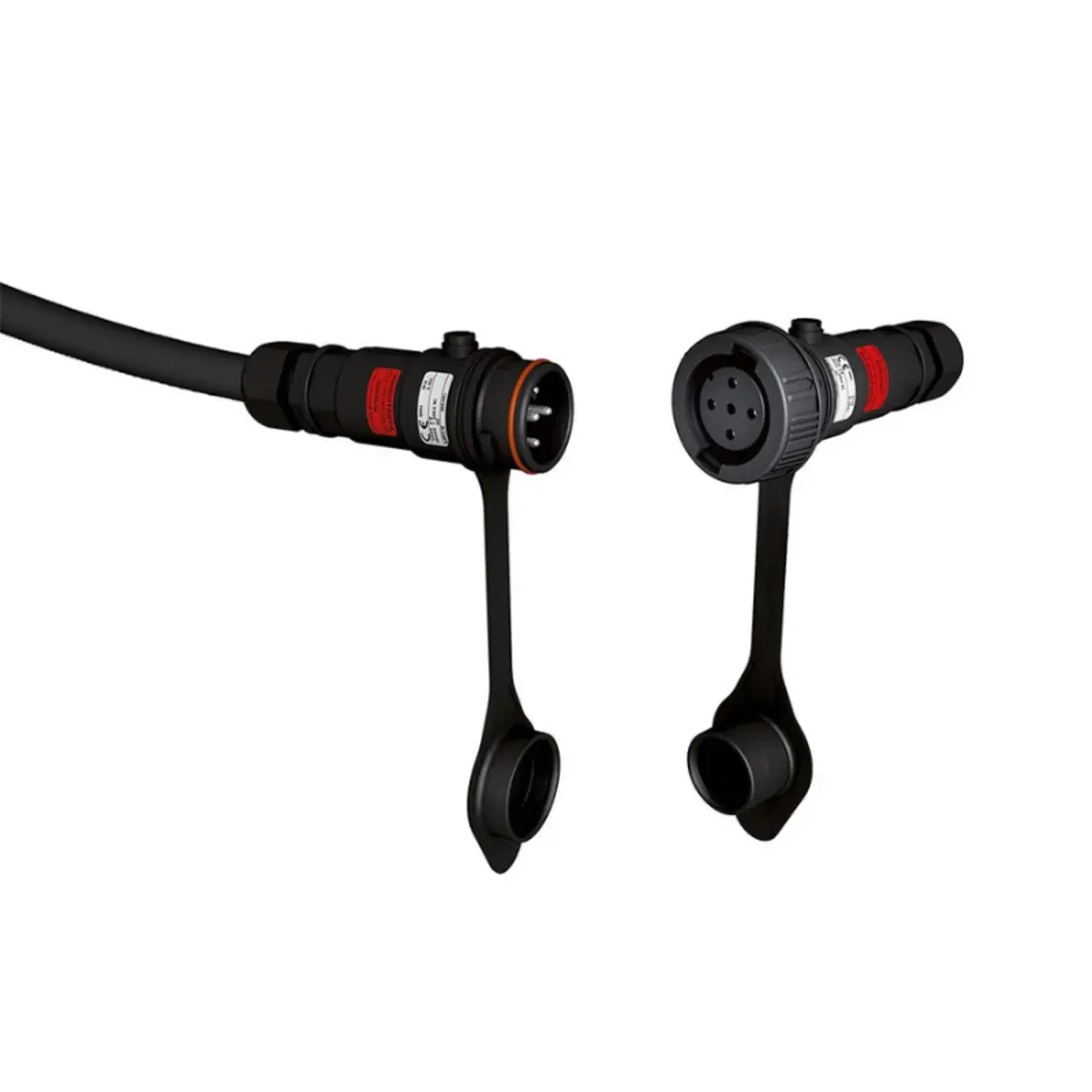

Atex disconnectable cable

HO7-RNF pre-wired with a Marechal® PNCX plug. Order separately for this service.

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
0,1 CABL HO7RNF-BK ATEX-PLUG 0.1M 3G1.5 CAB0141 Data sheet Plan STEP DS .TXT Download all
1 CABL HO7RNF-BK ATEX-PLUG 1M 3G1.5 CAB0130 Data sheet Plan STEP DS .TXT Download all
3 CABL HO7RNF-BK ATEX-PLUG 3M 3G1.5 CAB0143 Data sheet Plan STEP DS .TXT Download all

Cable entry

1 cable gland

Polyamide capacity Ø8-13 mm 113
Polyamide capacity Ø10-15 mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN

2 cable glands including one blind plug

Polyamide capacity Ø8-13 mm 213
Polyamide capacity Ø10-15 mm 216
Nickel-coated brass capacity Ø5-14 mm 213LN

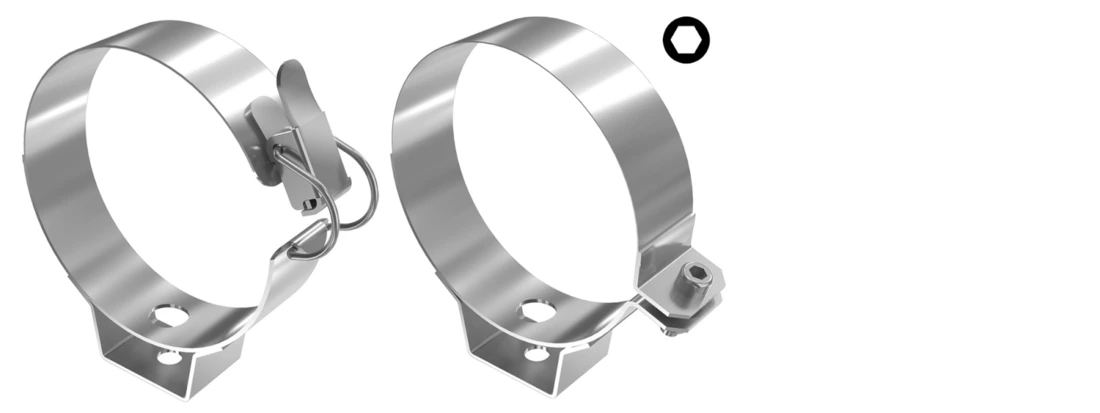

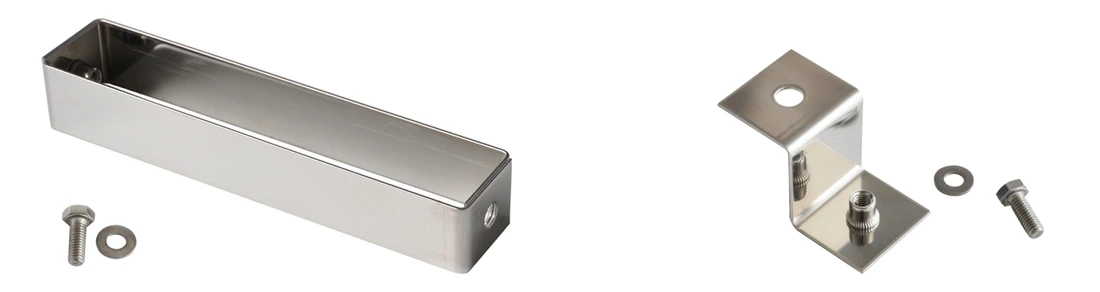

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

Polycarbonate housing PO
Coextruded polycarbonate/ PMMA housing with high chemical resistance POME
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI 2 dimming RD

Emergency lighting

1h Self contained Emergency Lighting Long life time LiFePO4 battery (for length ≥ 995 mm) Tmax=30°C S1H
HO7-RNF pre-wired cable with an IP67/69  Marechal® PNCX  Atex disconnectable plug
Several length available (6m max), 3 or 5  conductors : consult us
Kits for APSAD compliance
2 x 20 cm  304L stainless steel extensions PU44277
2 x 20 cm  316L stainless steel extensions PU47378
2 x 5 cm  304L stainless steel extensions PU44278
2 x 5 cm  316L stainless steel extensions PU45880

Technical specifications

Light source

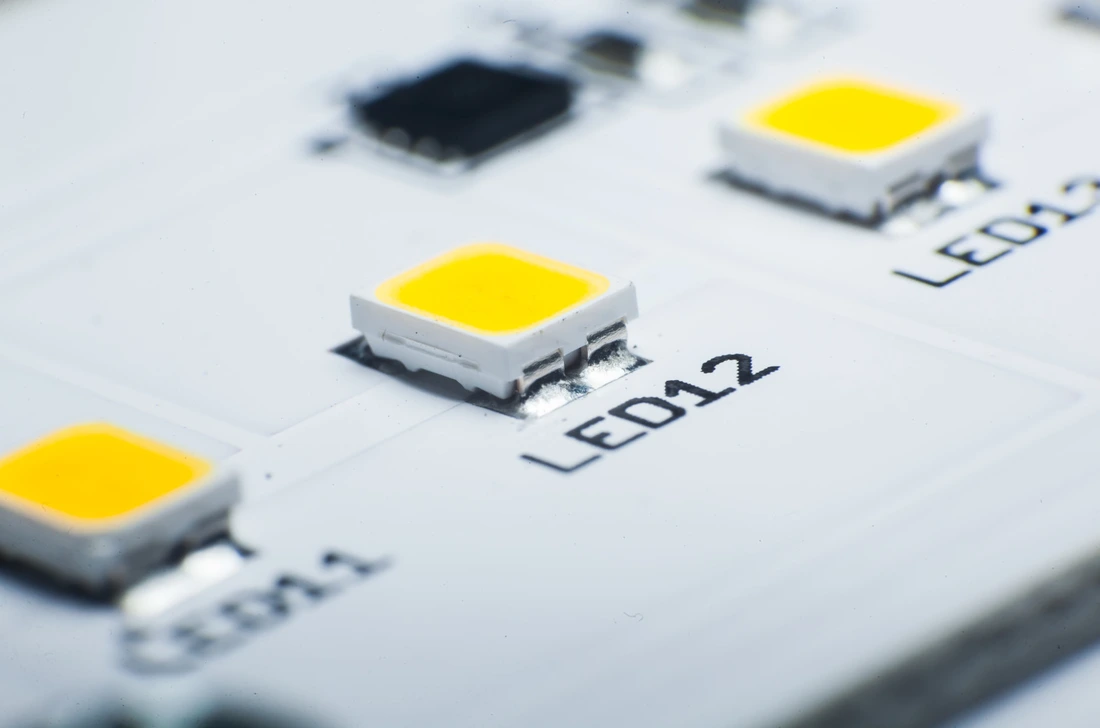

  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Specific satin-finish primary diffuser optics
Heat management
  • Aluminium heat sink
Control gear
  • Constant current driver
  • Electronic compatible with central source
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • With ATEX polyamide cable gland for Ø8 to 13 mm cable
  • 1 cable gland version : to a 3 x 2,5 mm² disconnectable terminal block
  • 2 cable glands version : to 5x2,5mm² detachable double deck terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Off-load opening in an explosive environment
  • Maintenance by removing the end cap and sliding the guided gear plate (Slide©)

Housing
  • Special polycarbonate housing protected from UV, solvents, hydrocarbons and cleaning agents by a coextrusion of PMMA
End caps and fixing straps
  • 304L stainless steel
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with long-lasting imperviousness

ATEX / IECEx
  • IEC 60079-0, IEC 60079-15, IEC 60079-31
Marking
  • II 3G Ex ec IIC T4 Gc - II 2D Ex tb IIIC T70°C Db IP66/IP68
Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

Diameter 100
Diameter 133
