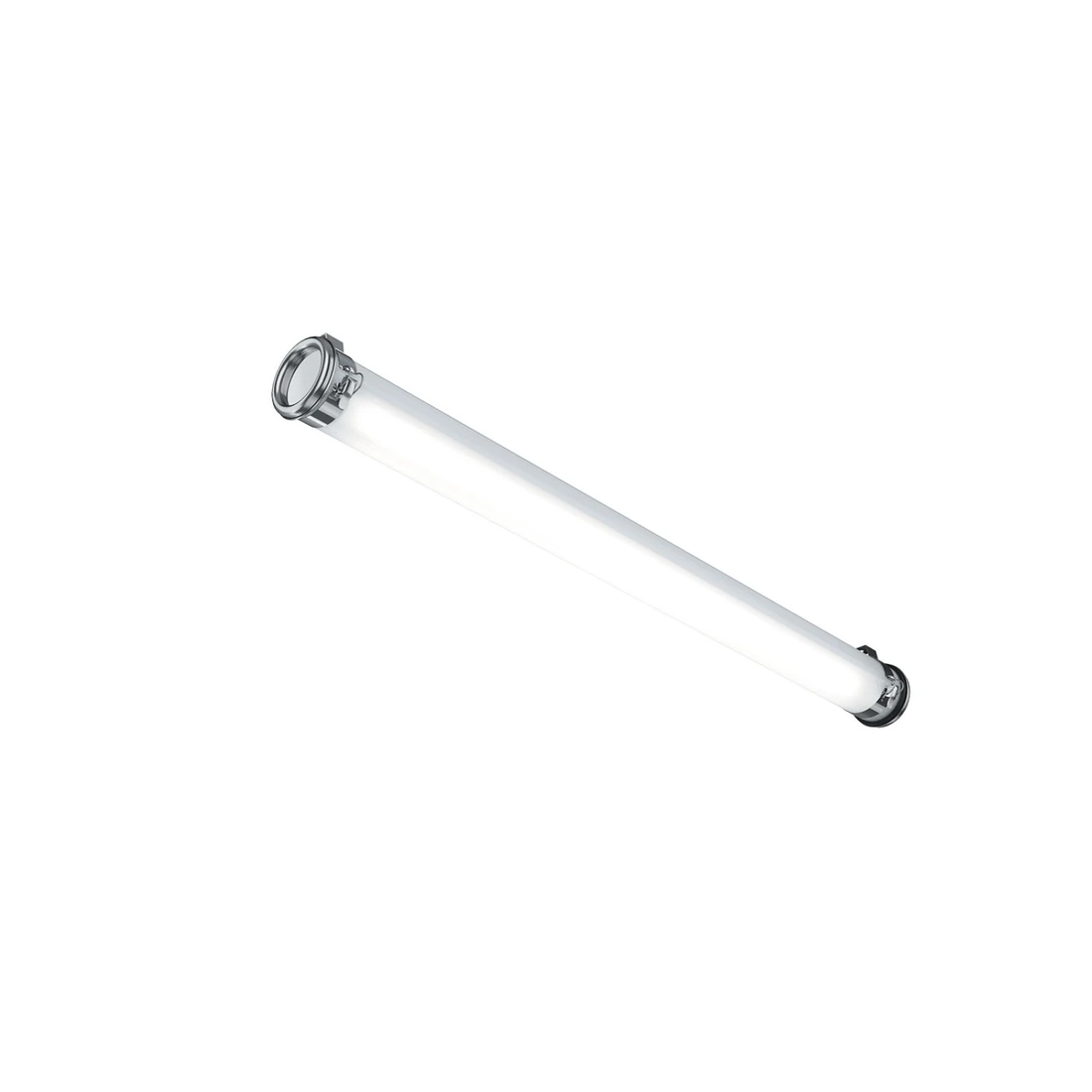

LED tubular light ø100 & 133 for industrial environments

The Pascal tubular luminaire is indispensable in tough environments, and is easy to both install and upgrade. It is highly resistant in corrosive conditions while meeting the health and safety requirements of food production sites. It is also UV-resistant so ideal for long-term use at any type of indoor or outdoor facility.

The Pascal tubular luminaire is designed for the moderate conditions faced in industrial and food production environments.

Chemical and sealing conditions

Dust and humidity

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Corrosive substances, acid vapours

Oils & hydrocarbons

UV radiation and bad weather

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 35°C

Repeated turning on and off

Heavy mechanical impacts

Health and safety

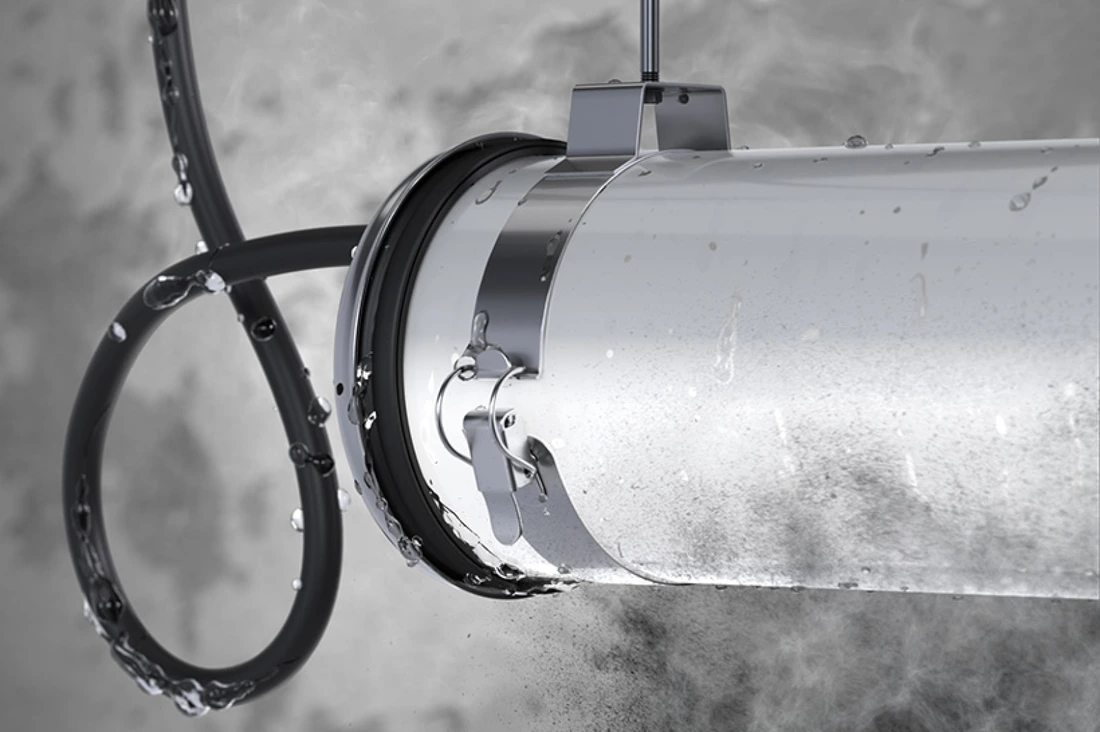

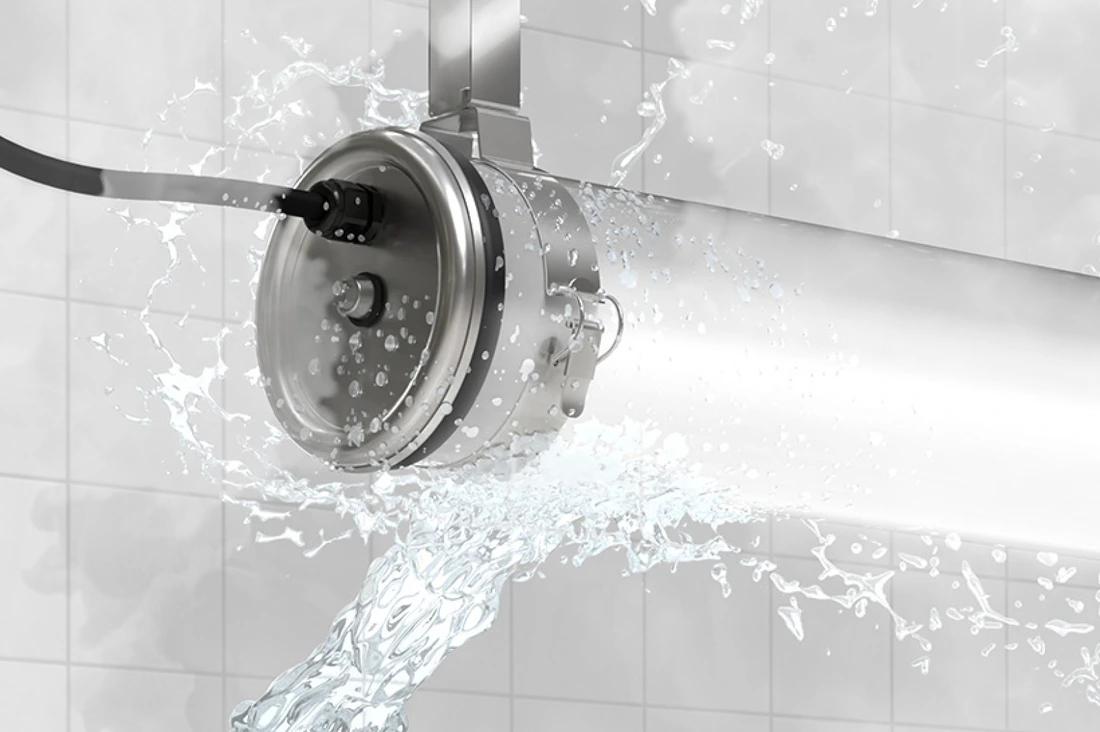

Ultimate IP68 and IP69K sealing! Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed to prevent humidity or fine dust from entering and to withstand high-pressure washing. Guaranteed health and safety, everywhere and well into the future!

Shock-proof and corrosion-proof

External 100% stainless steel parts, combined with a composite diffuser in co-extruded polycarbonate-PMMA, offering exceptional resistance to detergents, acid vapours, IK10 mechanical impacts and UV radiation.

Ultra-quick to install

Quick and easy connections thanks to a smart sliding gear tray (patented SLIDE© system). Even better are the models with an ultra-robust pluggable connector with a quick locking system, deceptively easy to install, with no risk of losing parts.

Guaranteed peace of mind and energy savings

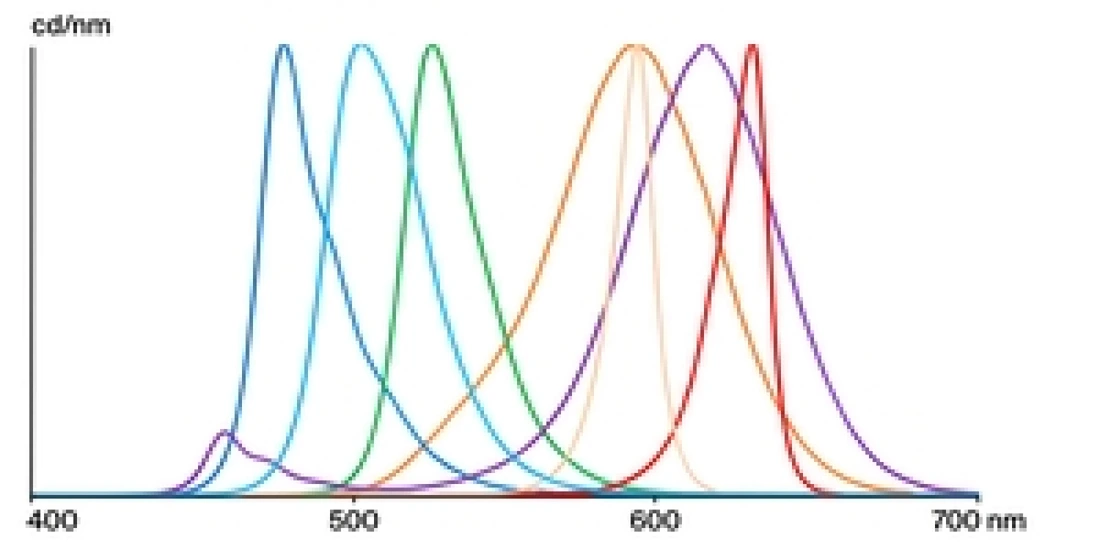

High-performance LED components, designed to be compatible with any lighting environment, no matter how tough. Installing the right lighting with durable components is still the most effective possible way to cut your operating costs.

Embedded smart control system

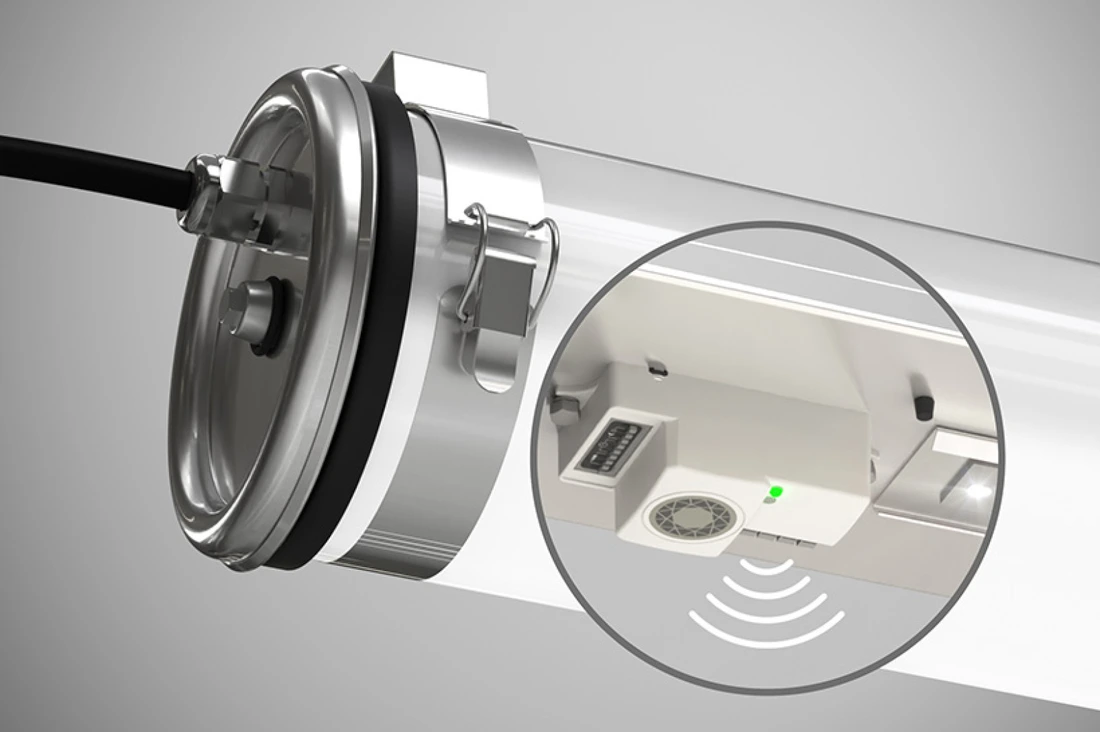

Only light areas when you need to, thanks to the optional motion sensor, based on a high-resistance sensor. When combined with the switch-off warning function, these models cut your energy bills by up to 90% in less-frequented areas, while maintaining the safety you need.

Replacement 3-hour lighting option with long-life batteries

Sammode has equipped this model with an emergency lighting button available as an option, to ensure even higher levels of safety In the event of a power outage, the emergency unit takes over for 3 hours thanks to the built-in lithium-ion batteries, a lighter, more powerful and longer-lasting option.

Applications of luminaires by the name Pascal

  • Vehicle production: general lighting
  • Pharmaceutical laboratories: bench lighting
  • Textile industry: lighting in production workshops
  • Manufacturing: lighting in assembly areas

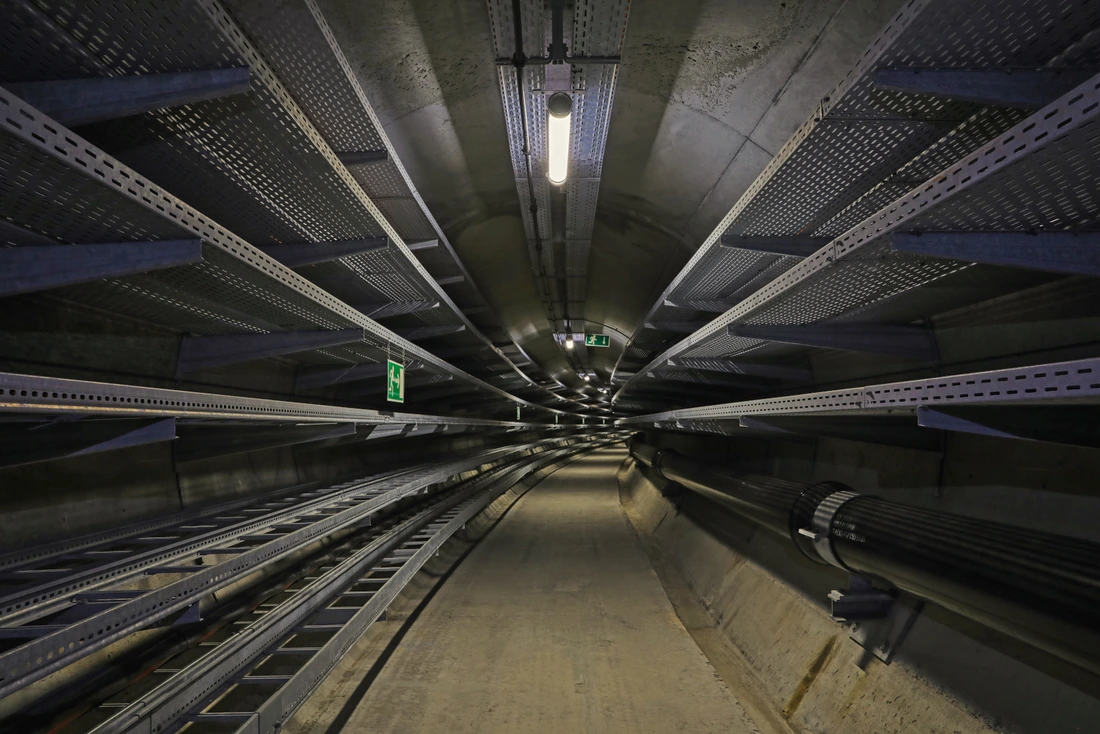

  • Wastewater treatment unit: maintenance tunnel lighting
  • Power plant: lighting in the turbine hall
  • Thermal power station: lighting of parking areas

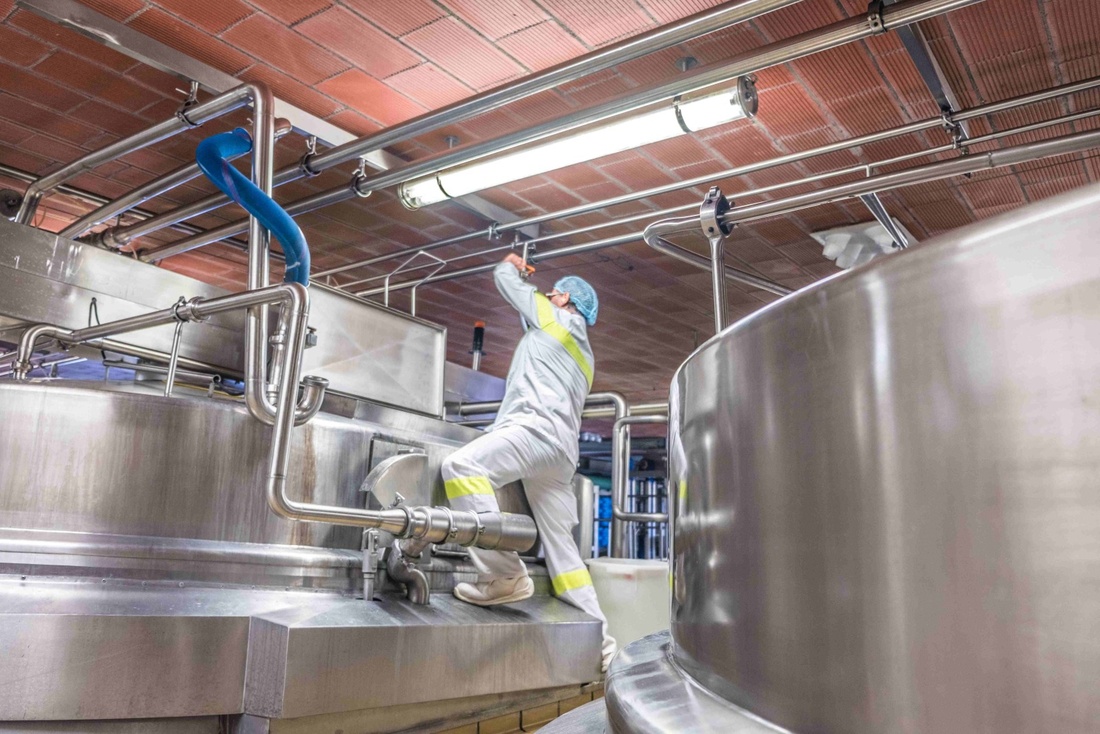

  • Cheese dairy: lighting in ripening rooms

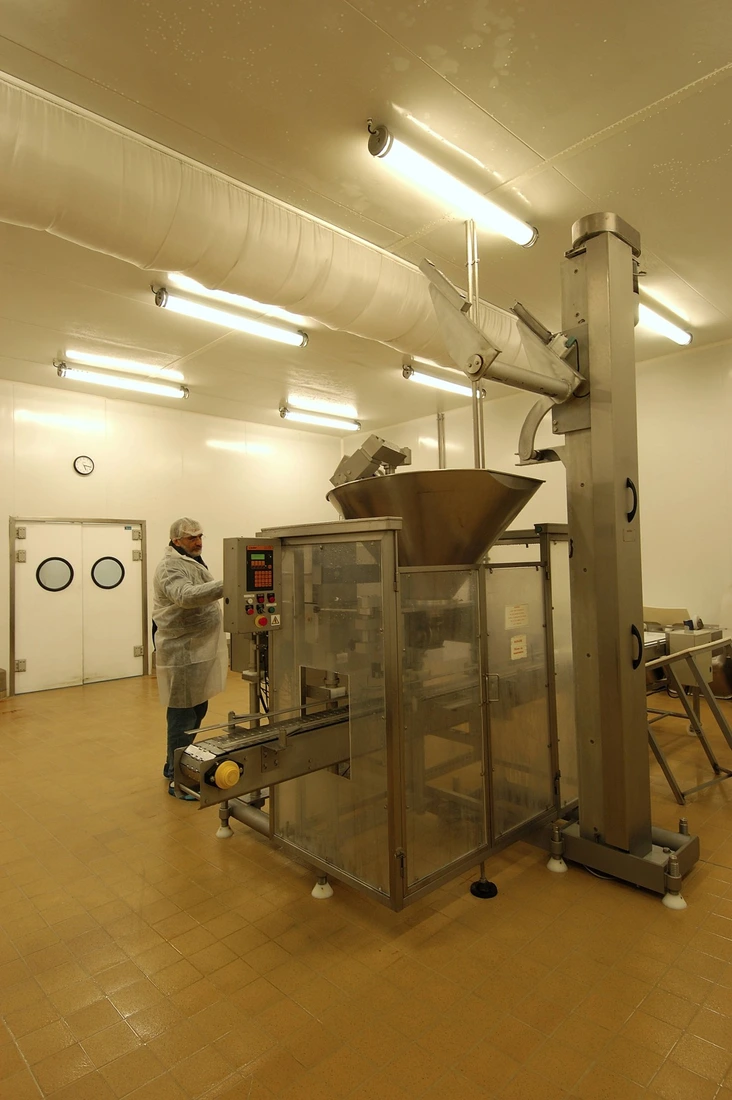

  • Dairy: lighting in processing areas

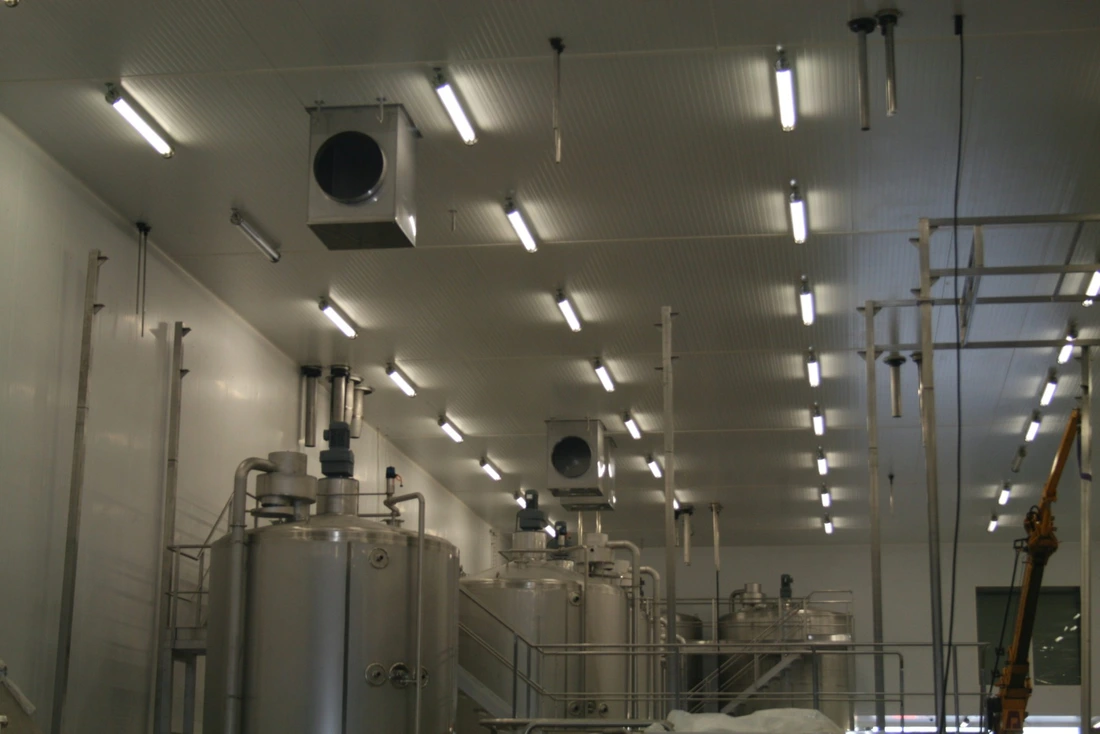

  • Ready-meal production lighting in production rooms

  • Rail maintenance workshop: walkway and corridor lighting
  • Regional train stations: platform lighting
  • Subway station: general lighting
  • Coach station: car park lighting

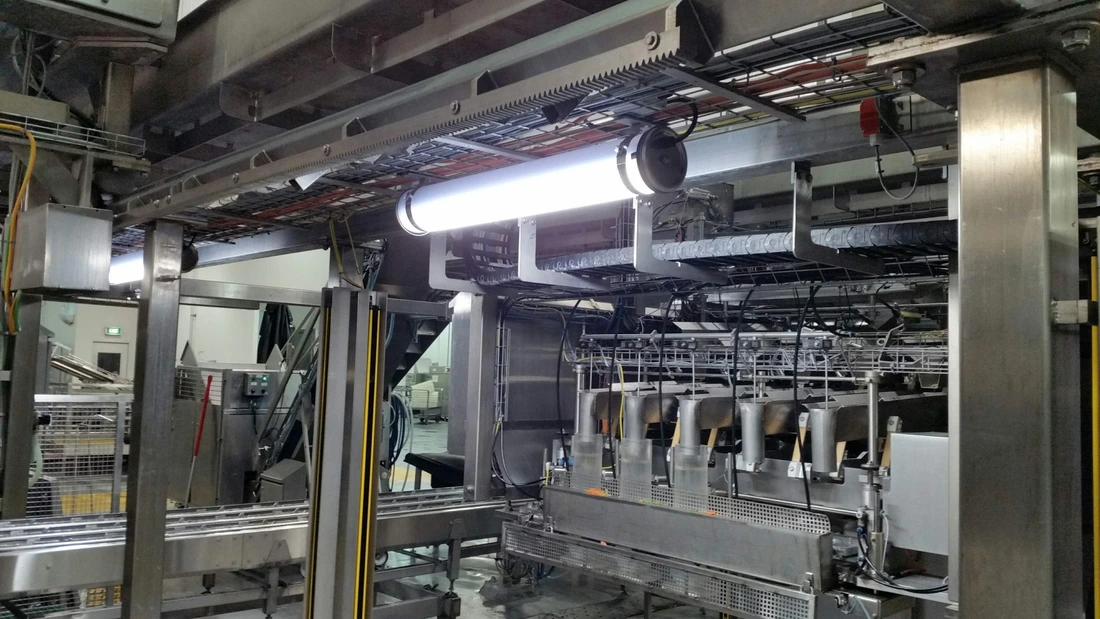

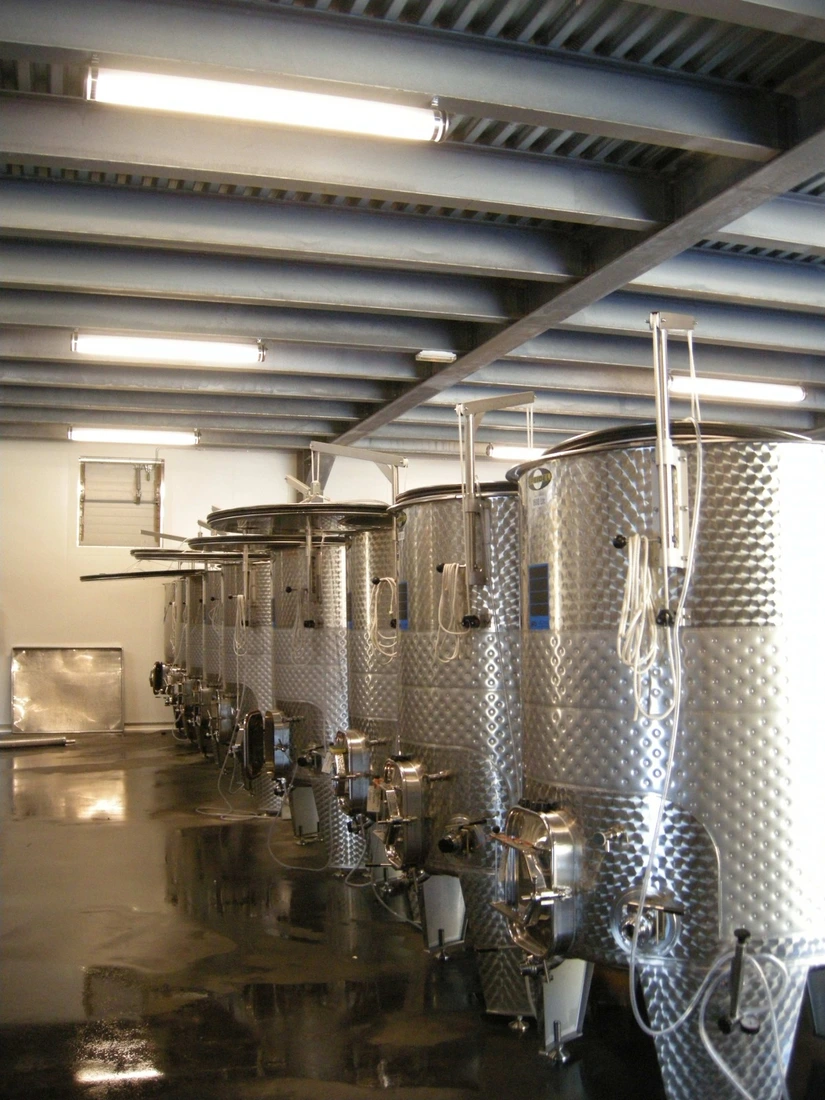

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the maximum operating temperature for the product. 8-year warranty you will not find anywhere else on the market, reflecting our unfailing commitment to our customers!

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Disconnectable quick-lock plug version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 708 PAS100 12H840 POME PS3 SA BRS 41605095 16 Data sheet Plan STEP DS .TXT Download all
100 2775 1018 PAS100 13H840 POME PS3 SA BRS 41605023 23 Data sheet Plan STEP DS .TXT Download all
100 4625 1618 PAS100 15H840 POME PS3 SA BRS 41605119 38 Data sheet Plan STEP DS .TXT Download all
100 3700 1318 PAS100 14H840 POME PS3 SA BRS 41605022 30 Data sheet Plan STEP DS .TXT Download all
100 5550 1850 PAS100 16H840 POME PS3 SA BRS 41605116 44 Data sheet Plan STEP DS .TXT Download all
133 5550 995 PAS133 23H840 POME PS3 SA BRS 22605031 46 Data sheet Plan STEP DS .TXT Download all
133 7400 1295 PAS133 24H840 POME PS3 SA BRS 22605043 61 Data sheet Plan STEP DS .TXT Download all
133 9250 1595 PAS133 25H840 POME PS3 SA BRS 22605082 75 Data sheet Plan STEP DS .TXT Download all
133 11100 1850 PAS133 26H840 POME PS3 SA BRS 22605066 90 Data sheet Plan STEP DS .TXT Download all

Polyamide cable gland version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 708 PAS100 12H840 POME 113 SA BRS 41605036 16 Data sheet Plan STEP DS .TXT Download all
100 2775 1018 PAS100 13H840 POME 113 SA BRS 41605037 23 Data sheet Plan STEP DS .TXT Download all
100 3700 1318 PAS100 14H840 POME 113 SA BRS 41605038 30 Data sheet Plan STEP DS .TXT Download all
100 4625 1618 PAS100 15H840 POME 113 SA BRS 41605039 38 Data sheet Plan STEP DS .TXT Download all
100 5550 1850 PAS100 16H840 POME 113 SA BRS 41605040 44 Data sheet Plan STEP DS .TXT Download all
133 5550 995 PAS133 23H840 POME 113 SA BRS 22605120 46 Data sheet Plan STEP DS .TXT Download all
133 7400 1295 PAS133 24H840 POME 113 SA BRS 22605054 61 Data sheet Plan STEP DS .TXT Download all
133 9250 1595 PAS133 25H840 POME 113 SA BRS 22605127 75 Data sheet Plan STEP DS .TXT Download all
133 11100 1850 PAS133 26H840 POME 113 SA BRS 22605144 90 Data sheet Plan STEP DS .TXT Download all

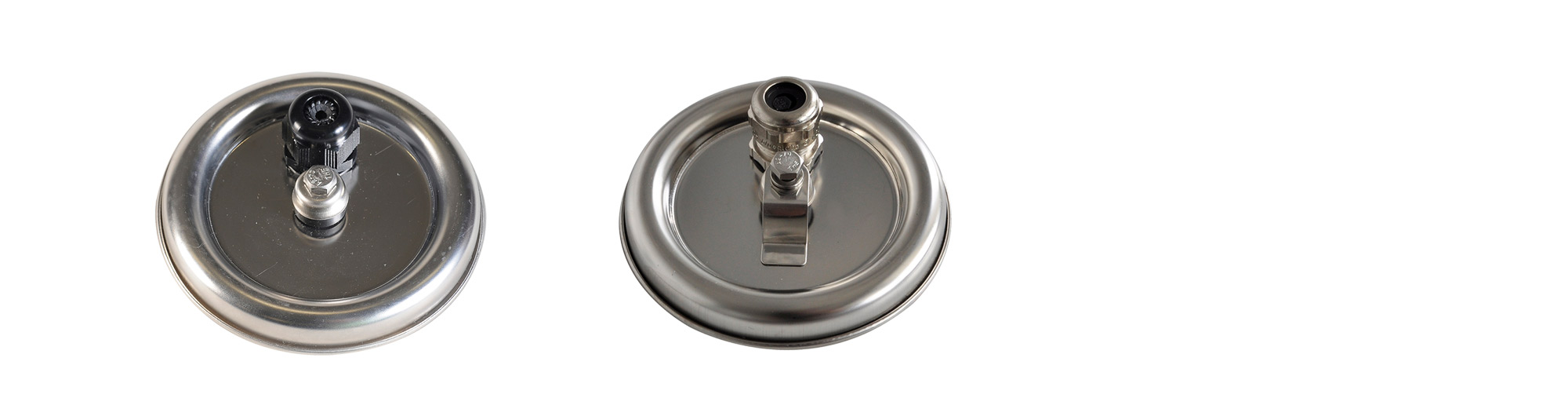

Cable entry

1 cable gland

Polyamide capacity Ø5-12mm 113
Polyamide capacity Ø7-14mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN

2 cable glands including one blind plug

Polyamide capacity Ø5-12mm 213
Polyamide capacity Ø7-14mm 216
Nickel-coated brass capacity Ø5-14 mm 213LN

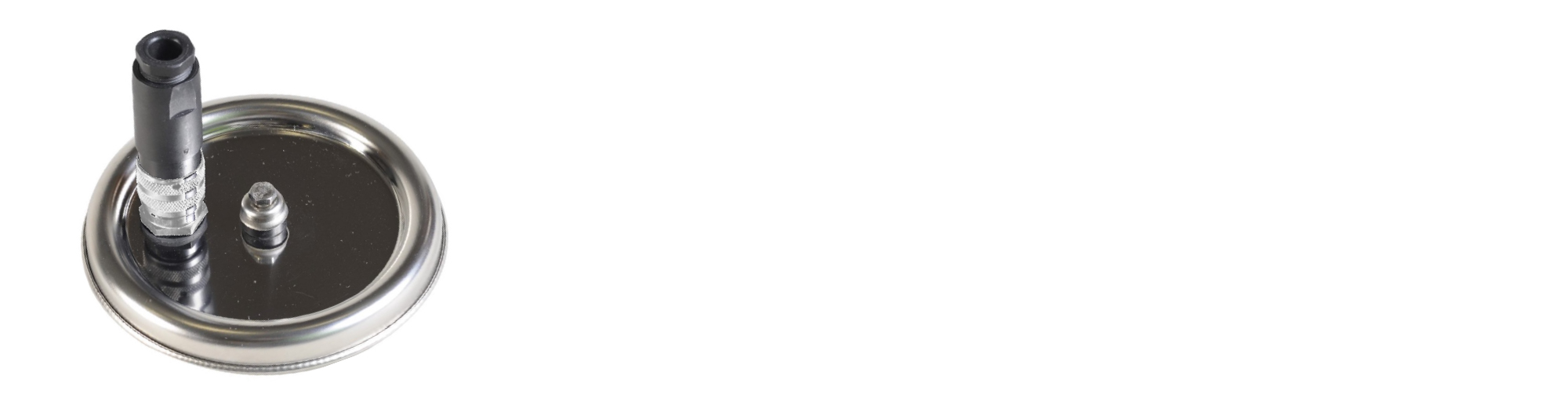

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS3

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

Polycarbonate housing PO
Coextruded polycarbonate/ PMMA housing with high chemical resistance POME
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840
5000K 850

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC
Built-in presence sensor (length increased by 85mm) SI

Emergency lighting

3h Self contained Emergency Lighting Long life time LiFePO4 battery (for length ≥ 995 mm) Tmax=30°C S3H
IP68 4-outlet junction box  (capacity Ø7-14mm) CP00674
Kits for APSAD compliance
2 x 20 cm  304L stainless steel extensions PU44277
2 x 5 cm  304L stainless steel extensions PU44278
1m HO7-RNF pre-wired cable 3G1,5²
Stripped free end CAB0080
Wieland® plug IP68/IP69K (capacity : Ø10-14mm) CAB0095
Wieland® plug and Y spliter for loop-in/out CAB0145

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Special satin-finish housing for LED
Lighting comfort
  • UGR ≤ 25
Control gear
  • Constant current driver
  • Electronic compatible with central source. LSC model available for emergency lighting compliant with 60598-2-22: please contact us
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • Version with 3-pole plug : disconnectable plug for Ø 8 to 10 mm cable (3 × 1.5 mm²)
  • 113 version : polyamide cable gland for cable Ø 5-12 mm, to a 3 x 2,5 mm² disconnectable terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Maintenance by removing the end cap and sliding the guided gear plate (Slide©)

Housing
  • Special polycarbonate housing protected from UV, solvents, hydrocarbons and cleaning agents by a coextrusion of PMMA
End caps and fixing straps
  • 304L stainless steel
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with long-lasting imperviousness

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

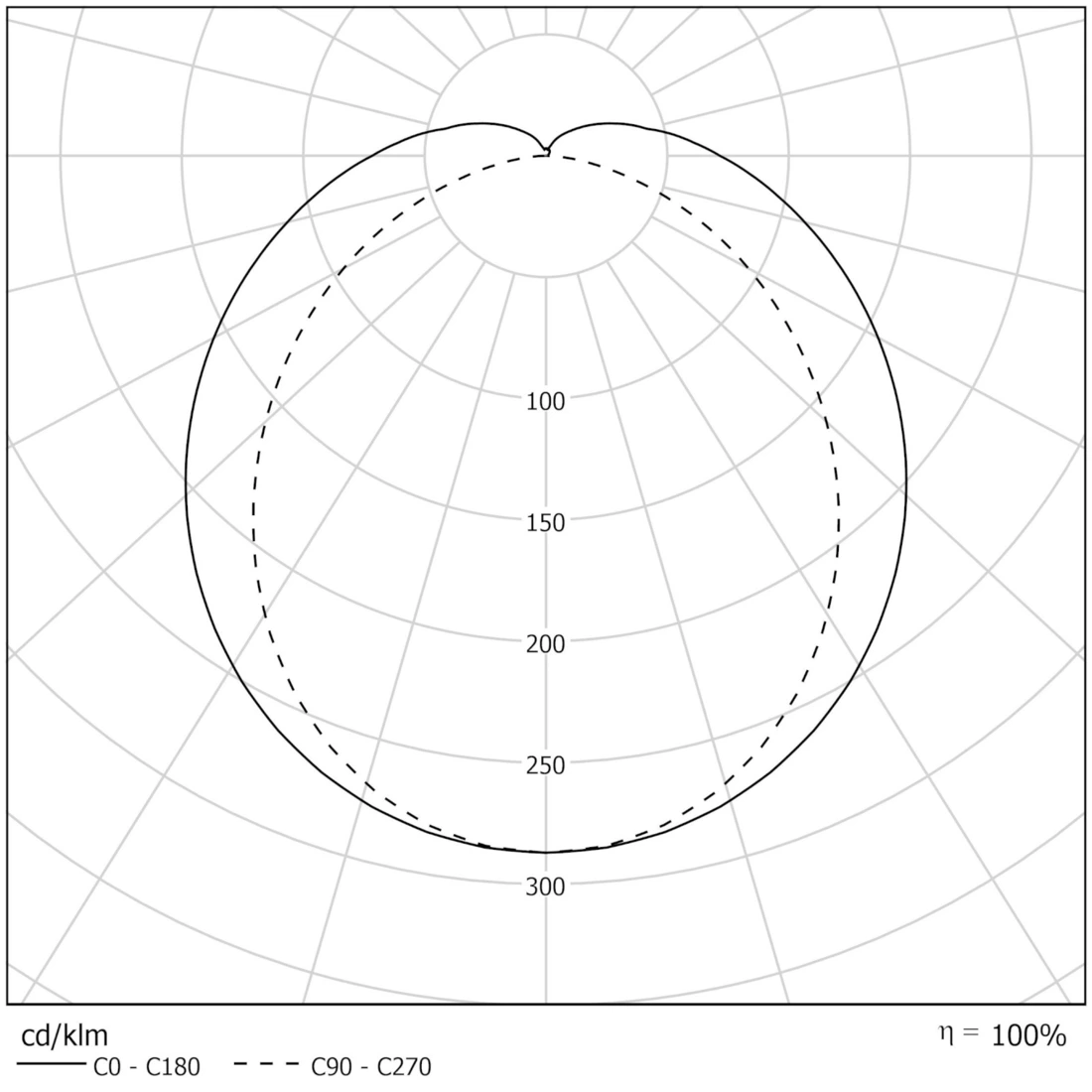

Diameter 100

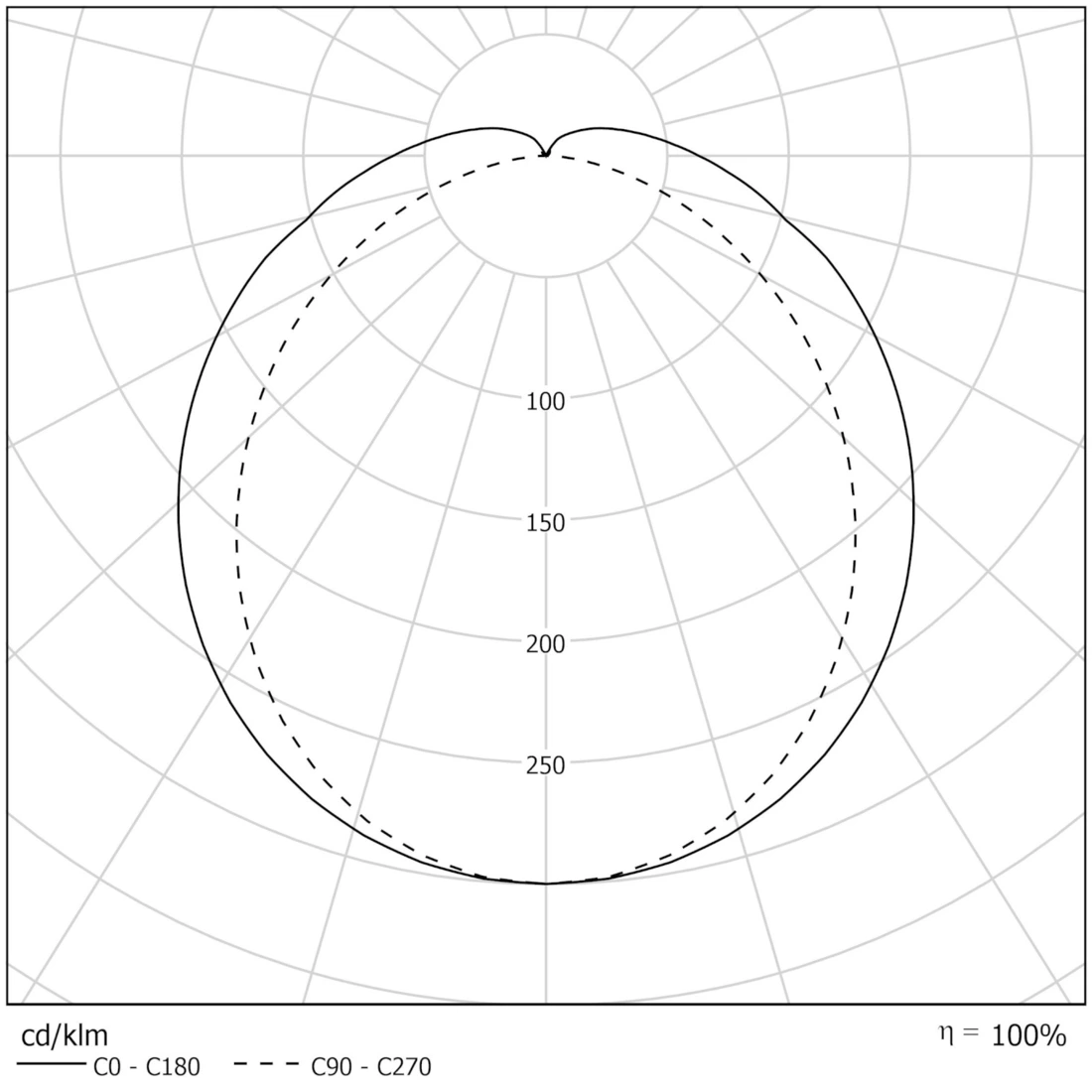

Diameter 133
