Leslie X-Heat
High temperature borosilicate glass tube ø133 for highly corrosive atmospheres
Pauli HT200 X-Heat
The ultimate lighting option, up to 200°C
Tubular luminaire for very high temperatures, ø133, with incandescent bulbs
Providing light, even in places operators can’t go... The Pauli HT200 designed for industrial furnaces provides an ideal option thanks to the use of materials able to withstand both temperatures and corrosion. This tubular light with incandescent bulbs is completely sealed thanks to its one-piece structure, and benefits from exceptional durability.
The Pauli HT200 X-Heat luminaire can withstand the extreme conditions faced in very high temperature environments.
Chemical and sealing conditions
Highly corrosive or abrasive environments
Splashes of very hot liquids
Flame-resistant, inflammable
Oils & hydrocarbons
Dust and extreme grime
All types of humidity
Very hot, humid or dry atmosphere
Washing with a high-pressure jet
Thermal, mechanical and electrical stresses
Permanent use at temperatures of up to 200°C
Thermal shocks
Mechanical impacts
Intense and repetitive vibrations
An iconic luminaire, with an exceptionally long life
This luminaire, with its compact ultra-solid housing for 1 or 2 E27 bulbs specifically designed for furnaces, is emblematic of the century-old expertise held by Sammode. This unit is non-flammable and hard-wearing and can offer long-lasting lighting for the most extreme industrial processes, in places operators just cannot tread.
Optimal sealing and durability, even at 200°C
Forget very hot vapours, fine dust, glowing particles and the like: this luminaire is IP68 & IP69K certified. Thanks to its high-temperature silicone gaskets and uniform tightening with a central screw (the Screw© system), the housing remains firmly sealed, even when the temperature varies significantly.
100% stainless steel and glass, guaranteeing unfailing chemical resistance
Exceptional long-lasting strength, thanks to a 100% stainless steel and borosilicate glass housing (IK07) resistant to heat and corrosion. The internal stainless steel gear tray houses the ceramic sockets, an aluminium reflector and woven fibreglass cloth cabling, ensuring strength up to 200°C.
Applications of luminaires by the name Pauli HT200 X-Heat
- Steel industry: coke and blast furnace lighting
- Glassworks: production line lighting
- Paper mills: lighting in drying areas
- Enamel works: lighting in enamel drying spaces
- Thermal power station: burner lighting
- Cold meats industry: oven lighting
- Industrial fryer: lighting in cooking areas
- Central kitchen: extractor hood lighting
Product shown in situ
Our services
Designed and manufactured in France
Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.
5-year warranty, no matter how tough the conditions
Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!
100% Removable and repairable on site
Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!
Oven and very high temperature process lighting
Up to 200°C, for E27 filament lamp
|
|
 |
| Number of lamps | L (mm) | Flux (lm)** | Designation | Code | Watt | Data sheet | Plan | STEP DS | .TXT | Download all | 1 | 464 | 390 | PAU133 HT200 1x60W E27 PY 113LN BRS | 36170011 | 60 | Data sheet | Plan | STEP DS | .TXT | Download all | 2 | 677 | 780 | PAU133 HT200 2x60W E27 PY 113LN BRS | 36170021 | 120 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|
×
![]()
1 cable gland
| Nickel-coated brass capacity Ø5-8 mm | 113LN |
2 cable glands
| Nickel-coated brass capacity Ø5-8 mm | 213LN |

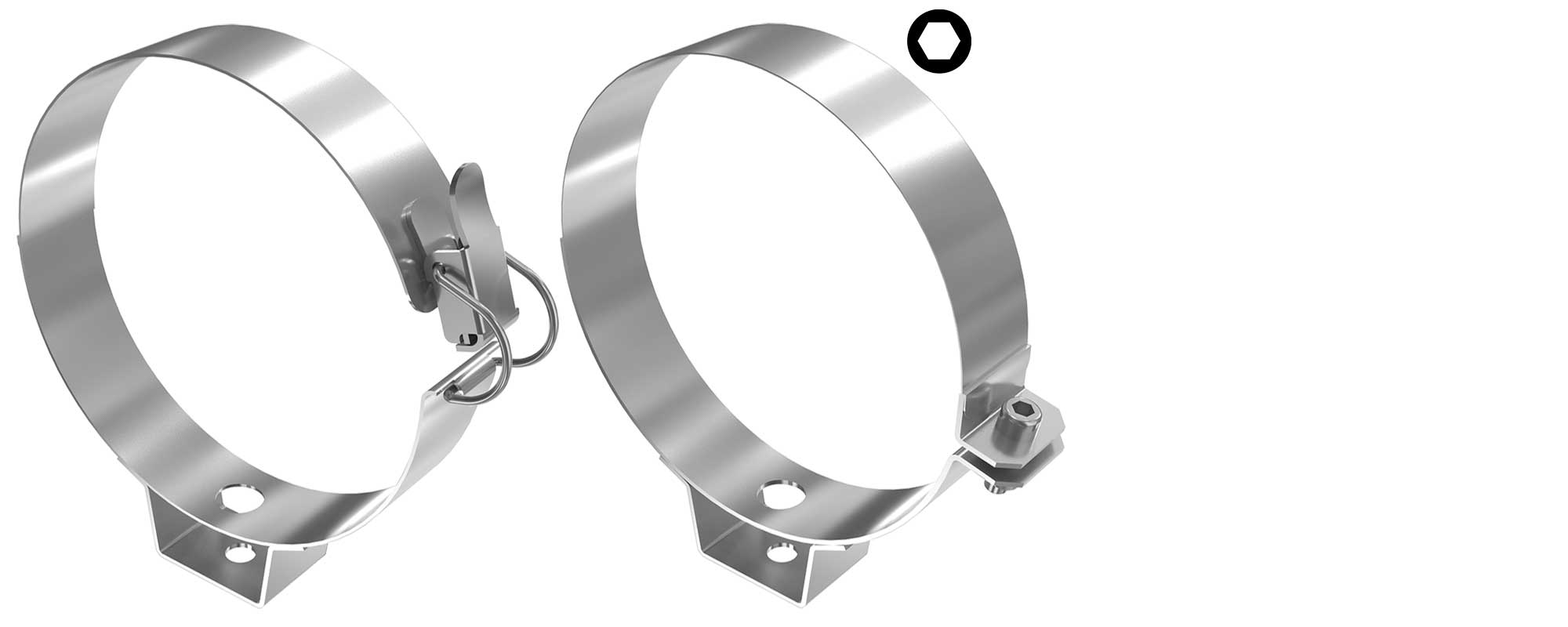

Fixing straps
| Reinforced fixing straps | BRS |
| Reinforced fixing straps with HSHC screw | BRV |
Materials
| End caps & fixing straps 304L stainless steel | - |
| End caps & fixing straps 316L stainless steel | MR |
1m HO7-RNF pre-wired high temperature cable 3G1,5²
| Stripped free end CAB0076 |
Technical specifications
| Light source |
|
| Optics |
|
| Supply voltage |
|
| Electrical class |
|
| Operating temperature |
|
| Lighting comfort |
|
| Connection |
|
| Mounting |
|
| Maintenance |
|
| Housing |
|
| End caps and fixing straps |
|
| Gaskets |
|
| Method of construction |
|
| Waterproofness |
|
| Resistance to IK shocks |
|
| Fire resistance |
|
| Vibration resistance |
|
