The Pissaro suspended or ceiling light fitting can illuminate the interchange halls at multi-modal transport hubs, metro station platforms, shared offices in coworking areas, library shelves, hotel gyms, and so much more.

LED wall & suspended light fitting with a lengthwise louvre, ø100

Just like the Purcell, its little brother, the Pisarro luminaire and its louvre brings light to any space, ensuring eye comfort without glare. This more powerful version can efficiently light up large open spaces while adding a designer touch.

Access to product information

Power, comfort & design

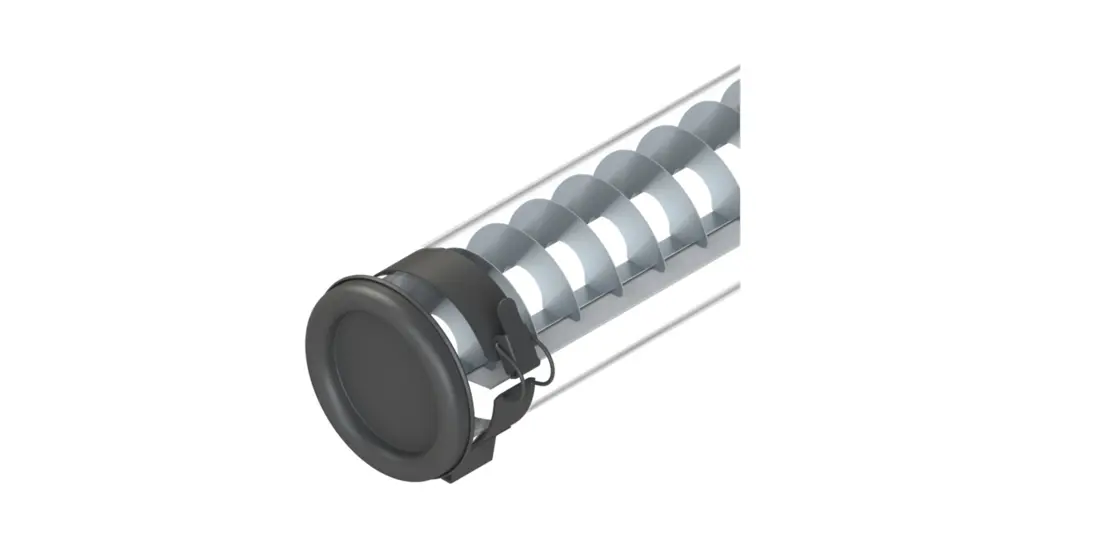

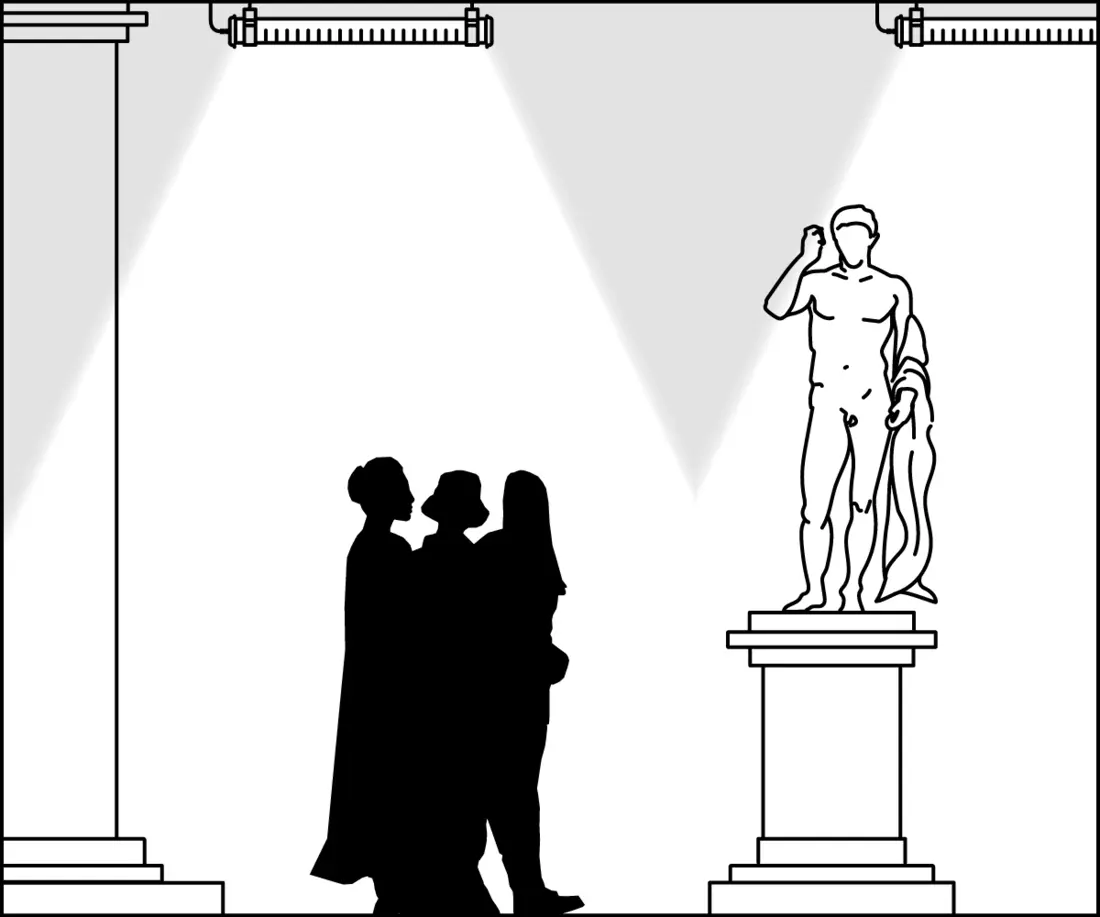

The lengthwise aluminium slats totally conceal the LED source. The pleasant light diffused on the sides subtly flatters spaces, illuminating the floor, walls and ceiling. In busy areas, the Pissarro luminaire provides just the right level of lighting, ensuring comfort and safety for users.

The right atmosphere for each finish.

The four hues proposed for the anodised aluminium louvre play on reflections and create a range of lighting atmospheres. Opt for a brass or copper finish for a cosy atmosphere. For a classy industrial look, opt for the Silver reflector, or the Petrol version combined with the lacquered Coal black end-caps and fixing straps.

A unique multipurpose fixture

The Pissarro luminaire offers both visual comfort and a great look, providing efficient lighting for all projects with an original architectural finish. The ceiling-mounted version, with its louvre, will be ideally suited for station platform lighting, to give just one example. The suspended version, combined with a range of finishes, will add a cosy touch to your book shelves.

Designed to last

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, applied here to the Pissarro. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of UV radiation and vandalism. Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, here applied to the Pissarro. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last despite UV radiation and vandalism.

Upgradeable

Your Pissarro LED tubular luminaire is easy to connect thanks to its patented smart sliding gear tray (SLIDE© system). This model is quick to install and easy to upgrade. The housing can contain and protect any future technological developments you opt for.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 8-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Non dimmable version

3000K, UGR ≤22 (longitudinal)

ReflectorFlux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 2100 1018 PISSARRO 100 S 1000 2100-830 15847040 24 Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 2800 1318 PISSARRO 100 S 1300 2800-830 15847050 32 Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 3500 1618 PISSARRO 100 S 1600 3500-830 15847060 39 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 2100 1018 PISSARRO 100 C 1000 2100-830 15847104 24 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 2800 1318 PISSARRO 100 C 1300 2800-830 15847105 32 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 3500 1618 PISSARRO 100 C 1600 3500-830 15847106 39 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 2100 1018 PISSARRO 100 B 1000 2100-830 15847110 24 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 2800 1318 PISSARRO 100 B 1300 2800-830 15847111 32 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 3500 1618 PISSARRO 100 B 1600 3500-830 15847112 39 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 2100 1018 PISSARRO 100 P 1000 2100-830 15847113 32 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 2800 1318 PISSARRO 100 P 1300 2800-830 15847114 43 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 3500 1618 PISSARRO 100 P 1600 3500-830 15847115 52 Data sheet Plan STEP DS .TXT Download all

DALI dimmable version

3000K, UGR ≤22 (longitudinal)

ReflectorFlux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 2100 1018 PISSARRO 100 S 1000 2100-830 RD 15947172 23 Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 2800 1318 PISSARRO 100 S 1300 2800-830 RD 15947132 29 Data sheet Plan STEP DS .TXT Download all
GRD SILVER [GRD_100-SILVER] 3500 1618 PISSARRO 100 S 1600 3500-830 RD 15947173 37 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 2100 1018 PISSARRO 100 C 1000 2100-830 RD 15947371 23 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 2800 1318 PISSARRO 100 C 1300 2800-830 RD 15947376 29 Data sheet Plan STEP DS .TXT Download all
GRD COPPER [GRD_100-COPPER] 3500 1618 PISSARRO 100 C 1600 3500-830 RD 15947377 37 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 2100 1018 PISSARRO 100 B 1000 2100-830 RD 15947372 23 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 2800 1318 PISSARRO 100 B 1300 2800-830 RD 15947375 29 Data sheet Plan STEP DS .TXT Download all
GRD BRASS [GRD-D100-BRASS] 3500 1618 PISSARRO 100 B 1600 3500-830 RD 15947378 37 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 2100 1018 PISSARRO 100 P 1000 2100-830 RD 15947373 31 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 2800 1318 PISSARRO 100 P 1300 2800-830 RD 15947374 39 Data sheet Plan STEP DS .TXT Download all
GRD PETROL [GRD_100-PETROL] 3500 1618 PISSARRO 100 P 1600 3500-830 RD 15947141 49 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV
Fixing straps with tamper-resistant Torx screw BRVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Casambi Bluetooth control RB
Non dimmable -

Electrical class

Class I CL1
Class II -
Stainless steel cable plate kit (IP40) 17500020
Horizontal suspension kit (3m ropes) 17500050
Pre-cabling 3m 3G1.5 (3 wires) Braided tinned copper cable CAB0008
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Extensive reflector with louvre
  • Specific satin-finish primary diffuser optics
Lighting comfort
  • Longitudinal brightness control
  • Longitudinal glare control 40°
  • Longitudinal UGR ≤22
Control gear
  • Constant current driver
  • Electronic compatible with central source
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class II
Operating temperature
  • -20°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-14 mm
  • To a 3 x 2,5 mm² or ou 5 x 2,5 mm² disconnectable terminal block (dimmable models)
Opening and closing
  • Quick, with just one screw
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Patended sliding maintenance system
  • Easily removable LED modules and driver

Housing
  • Ø100 Co-extruded polycarbonate/PMMA for inside/outside use
End caps and fixing straps
  • 304L stainless steel
Louvre
  • Aluminium louvre

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

ULR = 2%
