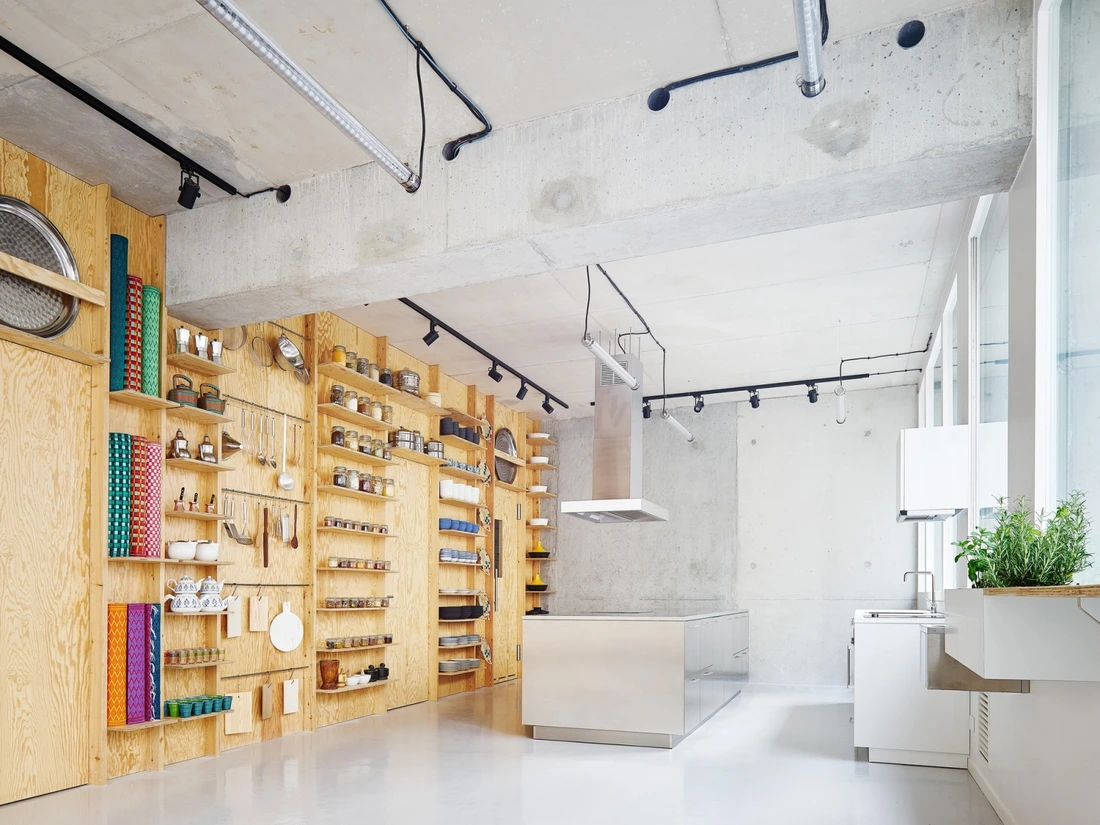

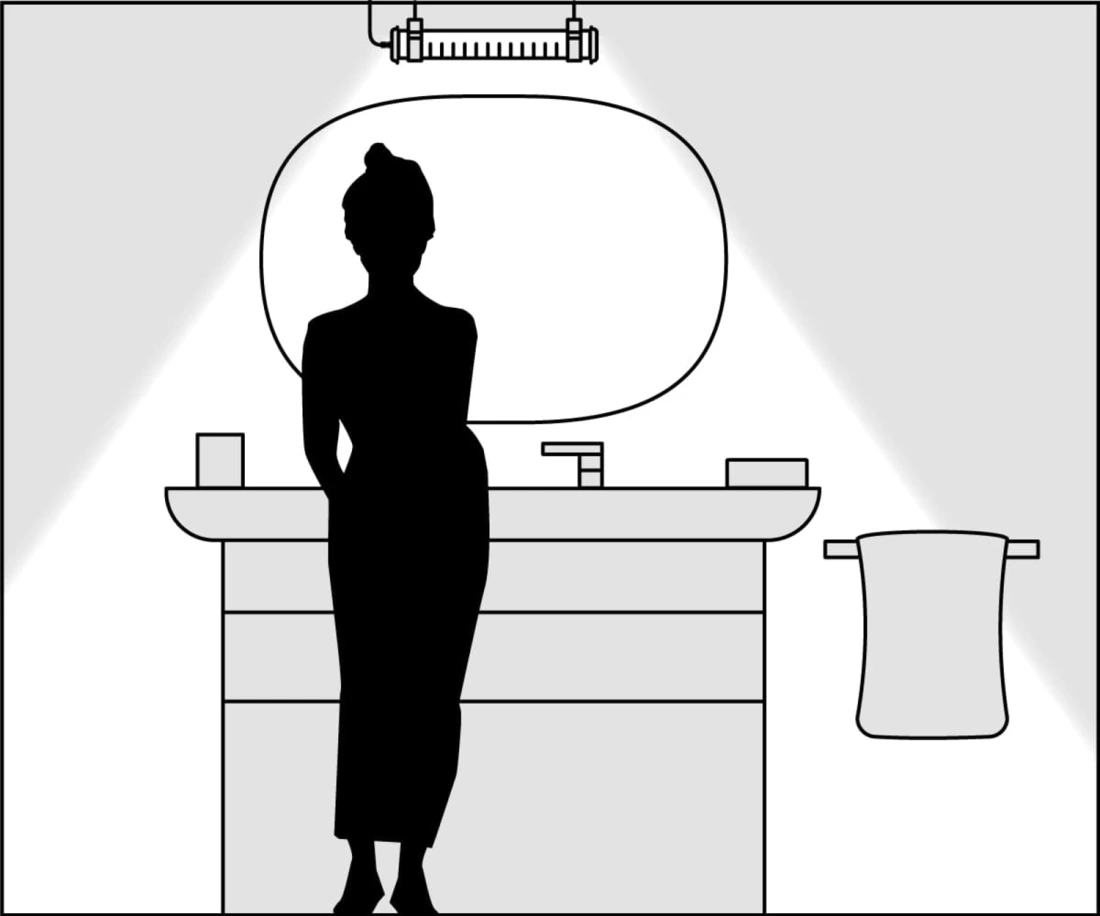

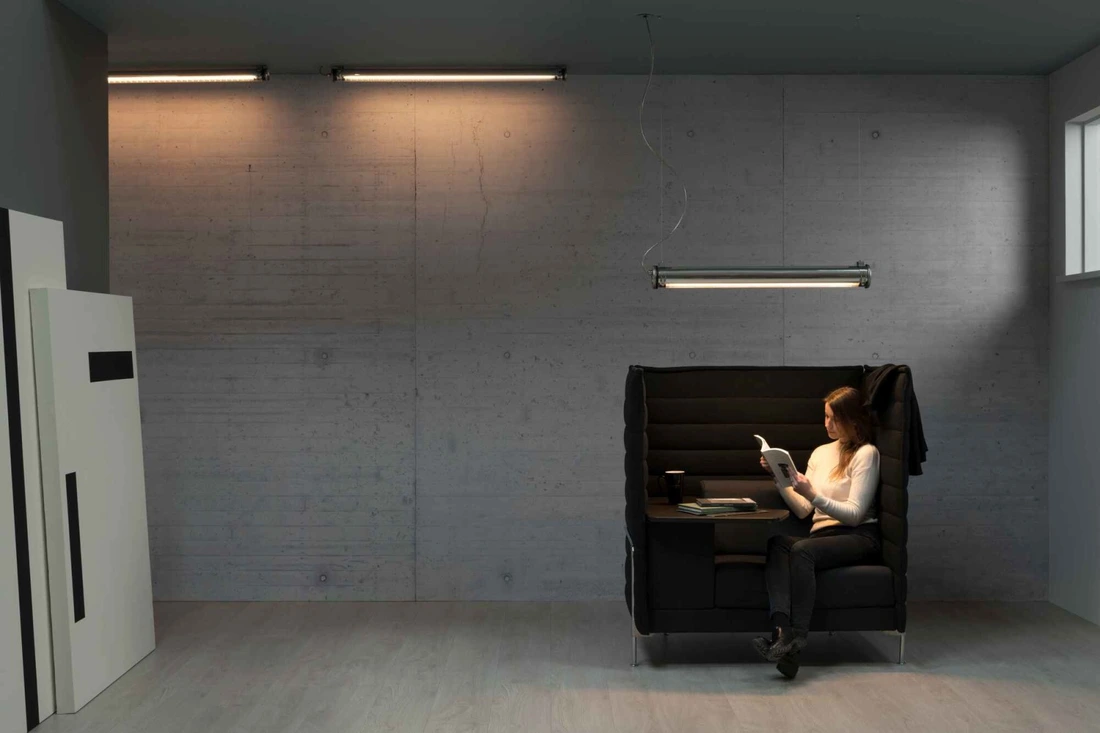

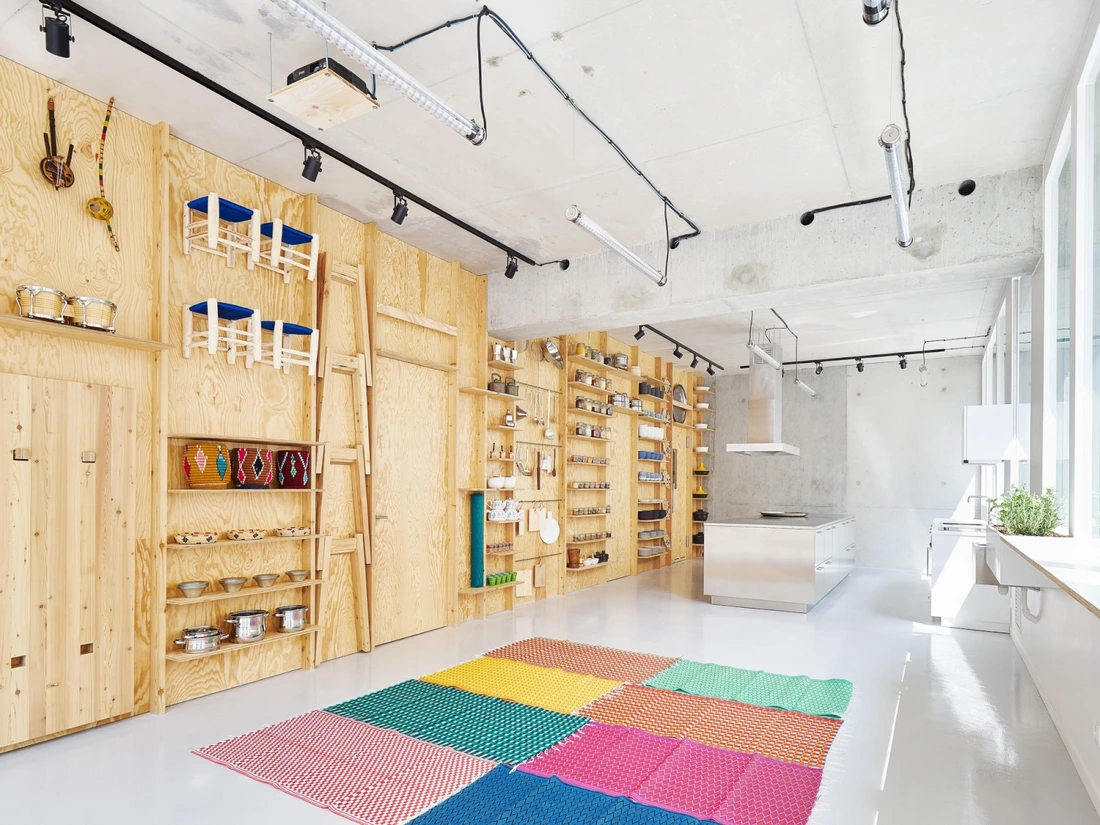

The Purcell ceiling light can illuminate airport corridors, business incubator reception areas, changing rooms in sports facilities, hotel staircases, villa bathrooms, to name just a few applications.

LED ceiling light with lengthwise louvre, ø70

Thanks to its louvre, which partially conceals the light source, the Purcell ceiling light offers the perfect combination of technical know-how and design. Glare prevention meets flux control to ensure unfailing lighting. The Purcell luminaire is the ideal companion for the Elgar wall light.

Access to product information

Lighting comfort

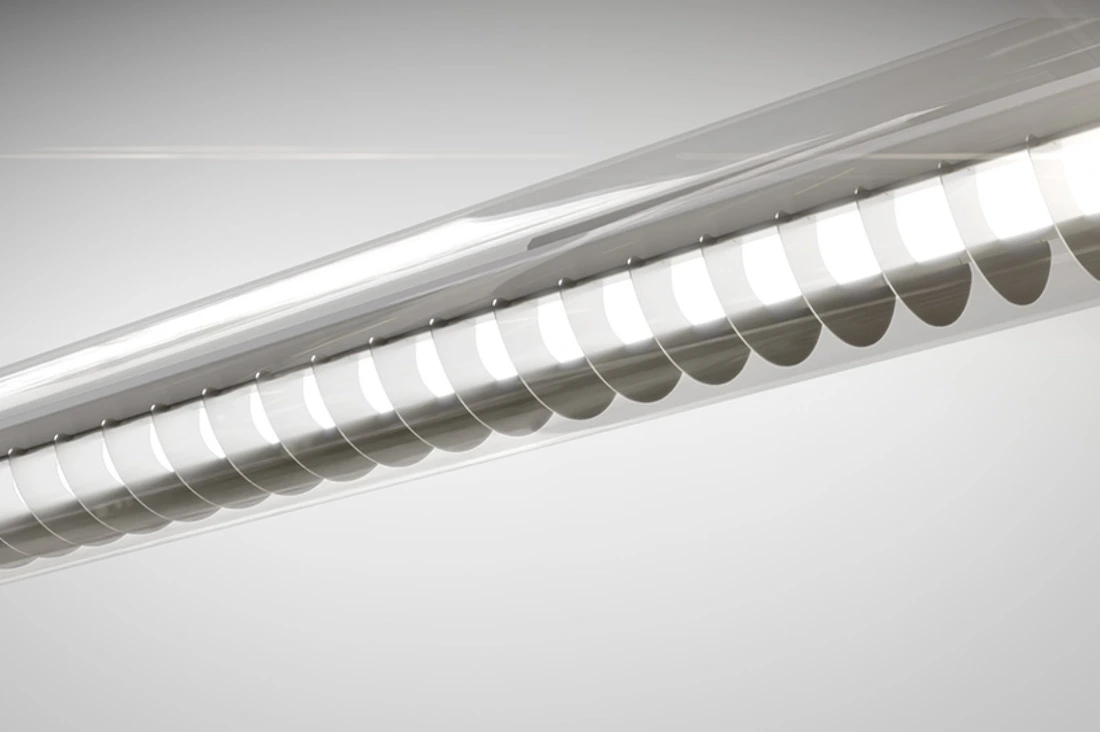

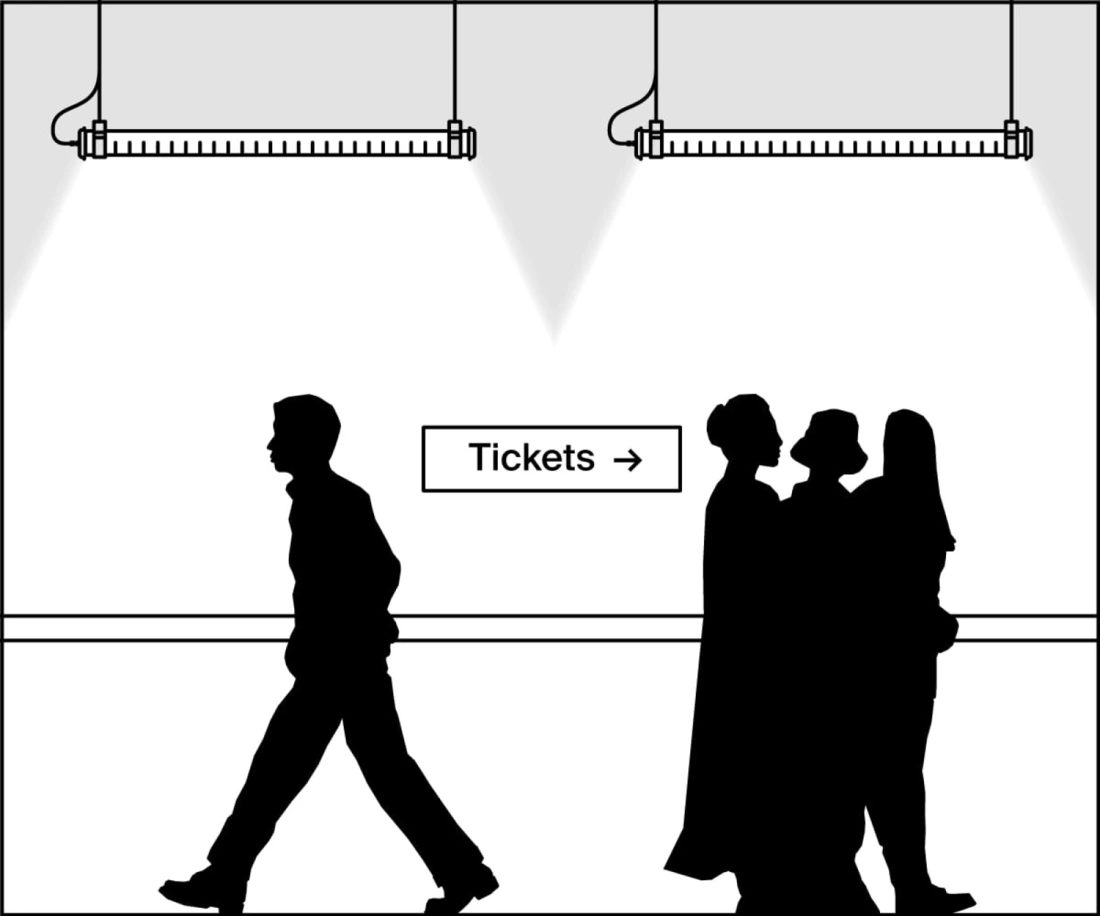

The Purcell provides an ideal compromise between design and lighting comfort. Its aluminium slats totally conceal the LED source longitudinally, while producing pleasant diffuse lighting on the sides. This luminare is ideal for lighting corridors, while remaining discreet with its compact dimensions.

The right atmosphere for each finish.

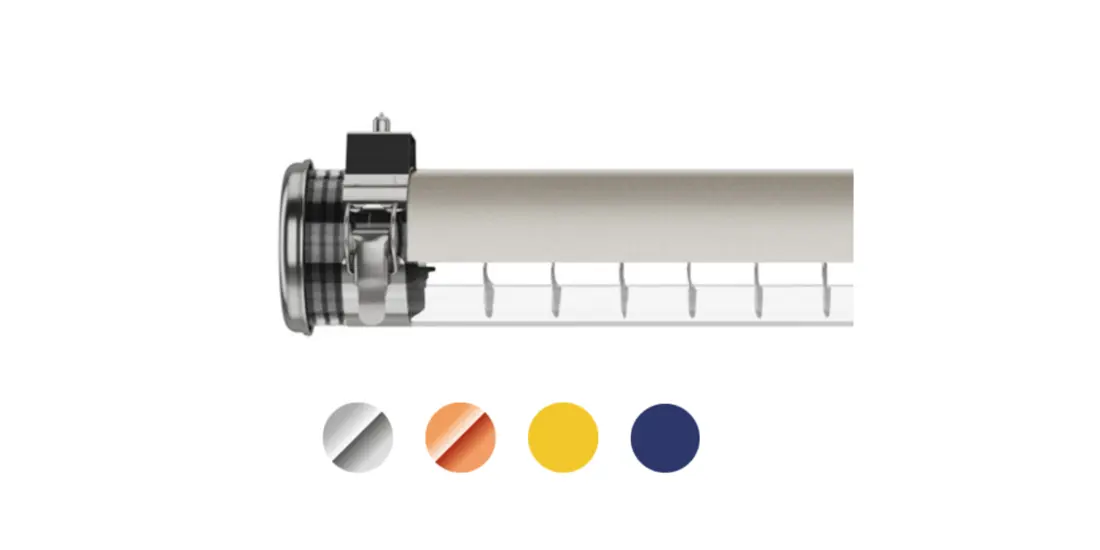

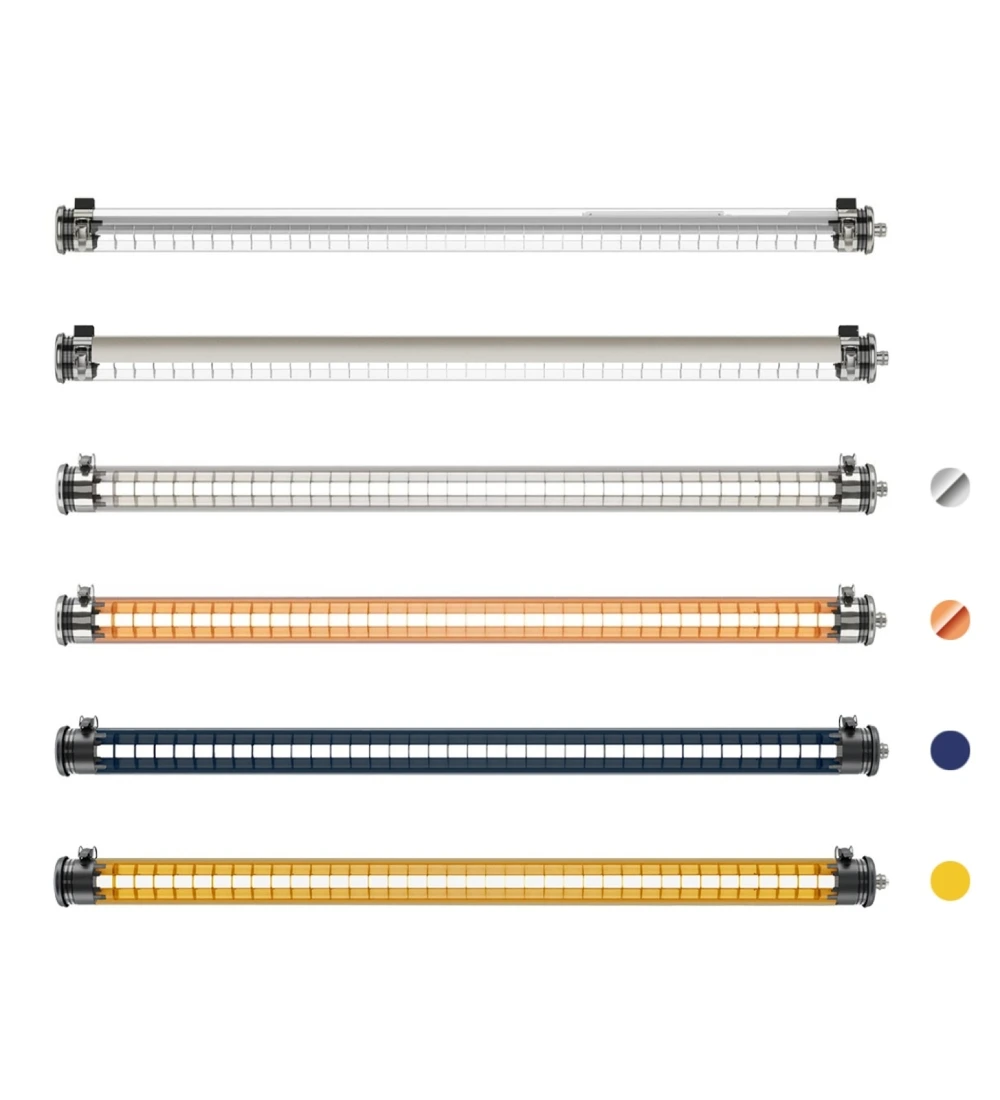

The four hues proposed for the anodised aluminium louvre play on reflections and create a range of lighting atmospheres. Opt for a brass or copper finish for a cosy atmosphere. For a classy industrial look, opt for the Silver reflector, or the Petrol version combined with the lacquered Coal black end-caps and fixing straps.

Flexible set-up

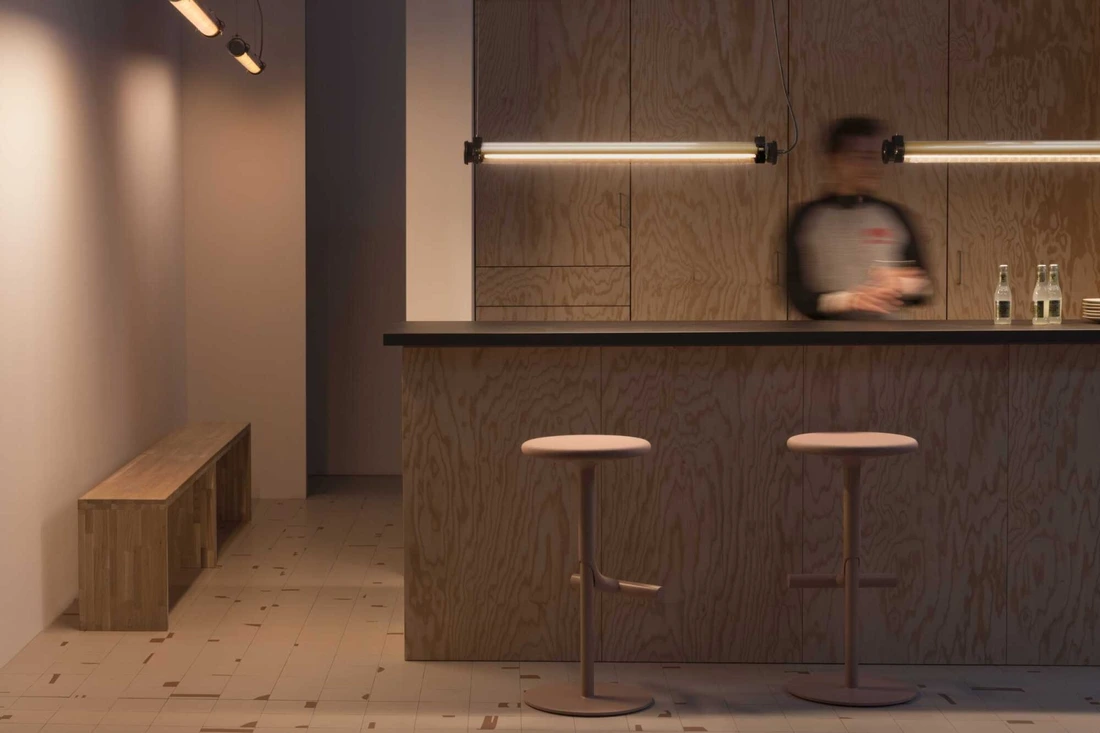

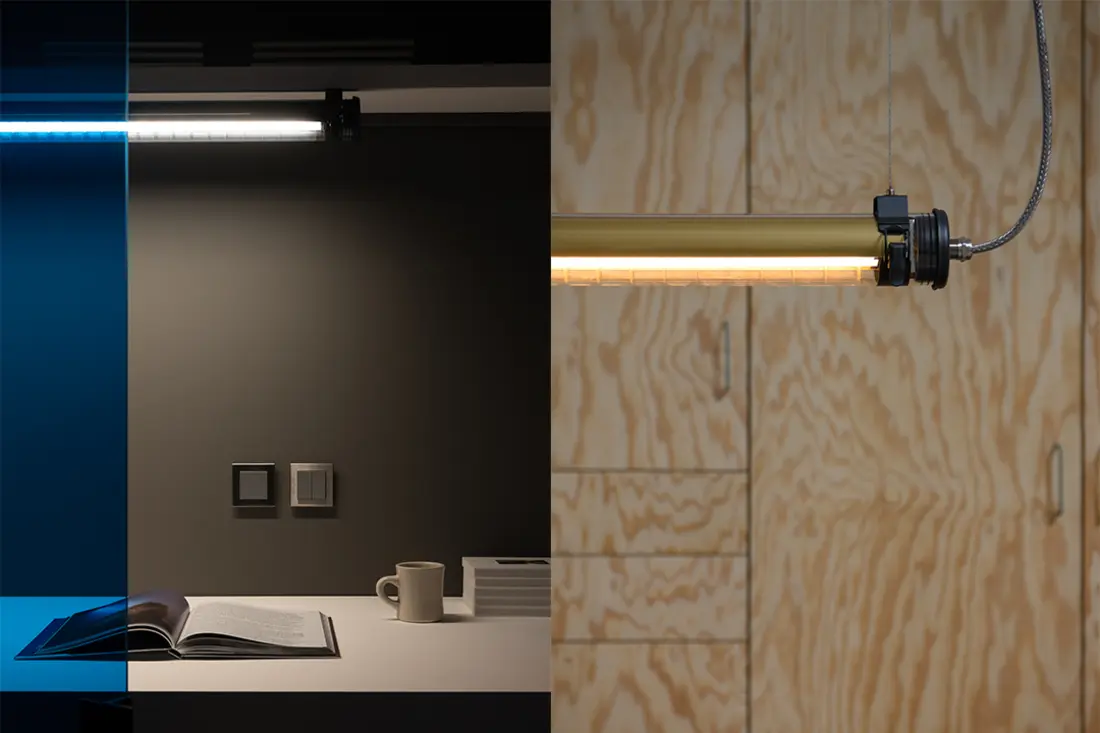

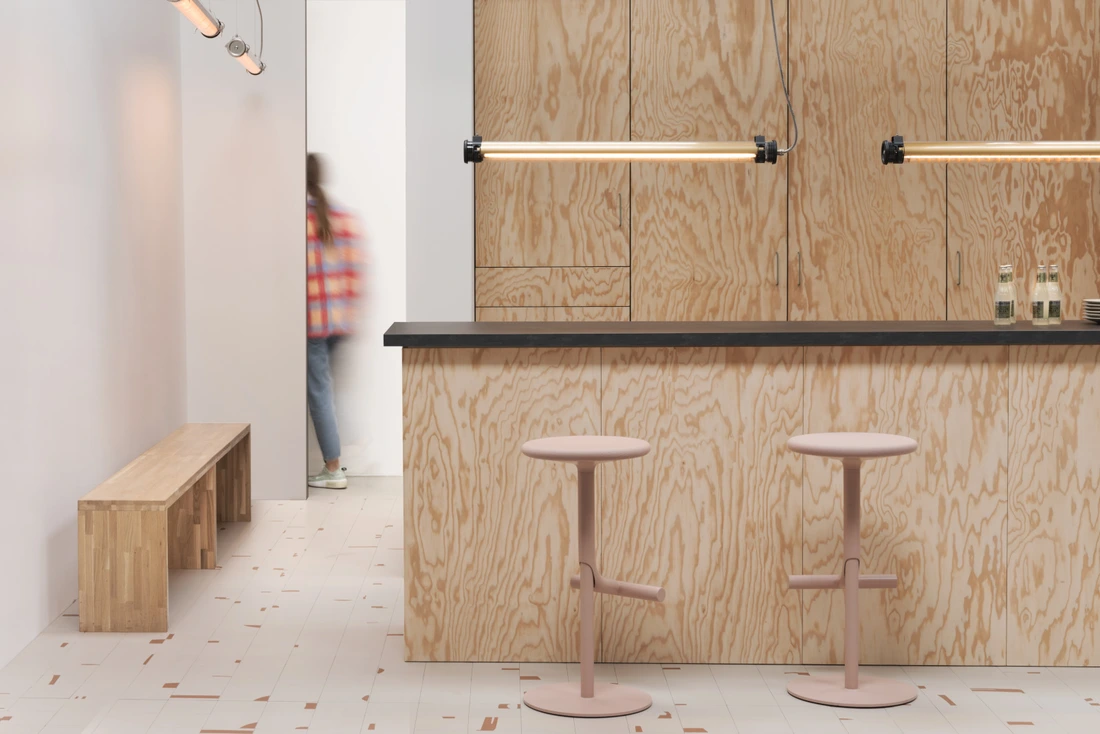

Install your Purcell luminaire however you fancy, on the wall, ceiling or as a suspended fixture. Whether fitted as a single unit or as part of a line, it is easy to hook up thanks to the patented internal connections. Opt for the rear gear unit cover to conceal the gear and embellish the great design of your fixture.

Smart and upgradeable

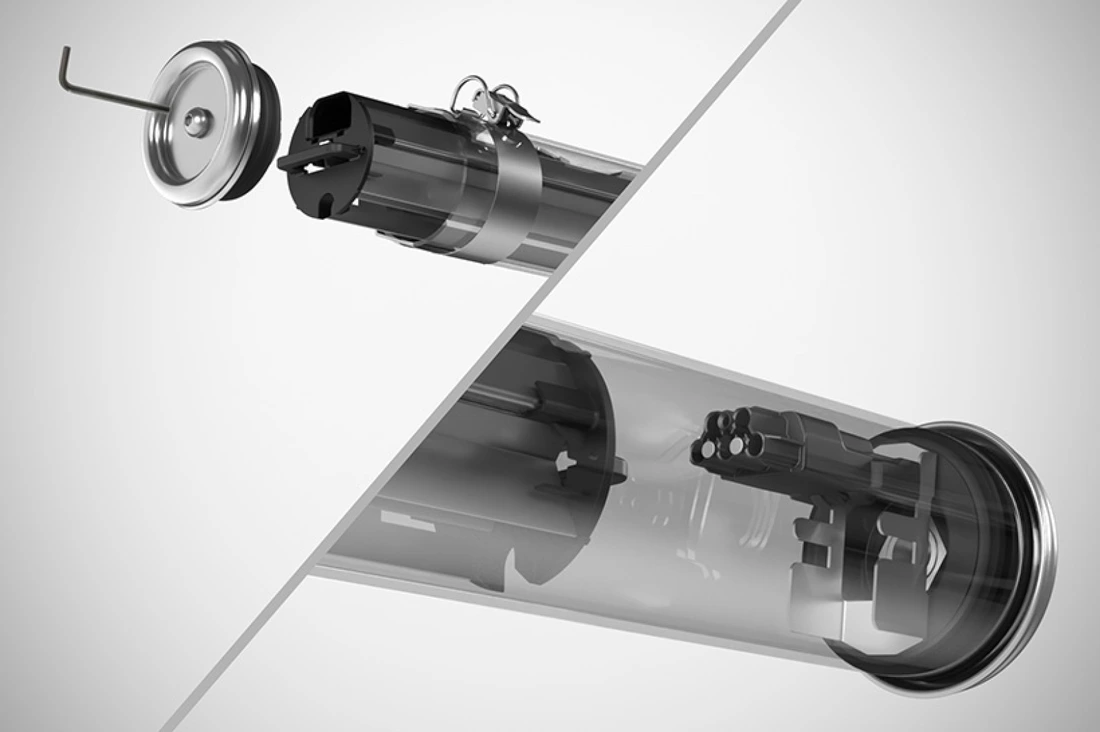

The Purcell luminaire incorporates a patented automatic gear tray connection system, allowing for swift and safe connections (the Close’n Connect© system). To update your internal gear tray and add the latest technology, open the luminaire on the opposite side, without touching the cable, to ensure the fixture remains sealed. The secret to durability? We build robust, adaptable and upgradeable equipment.

A designer luminaire built to last

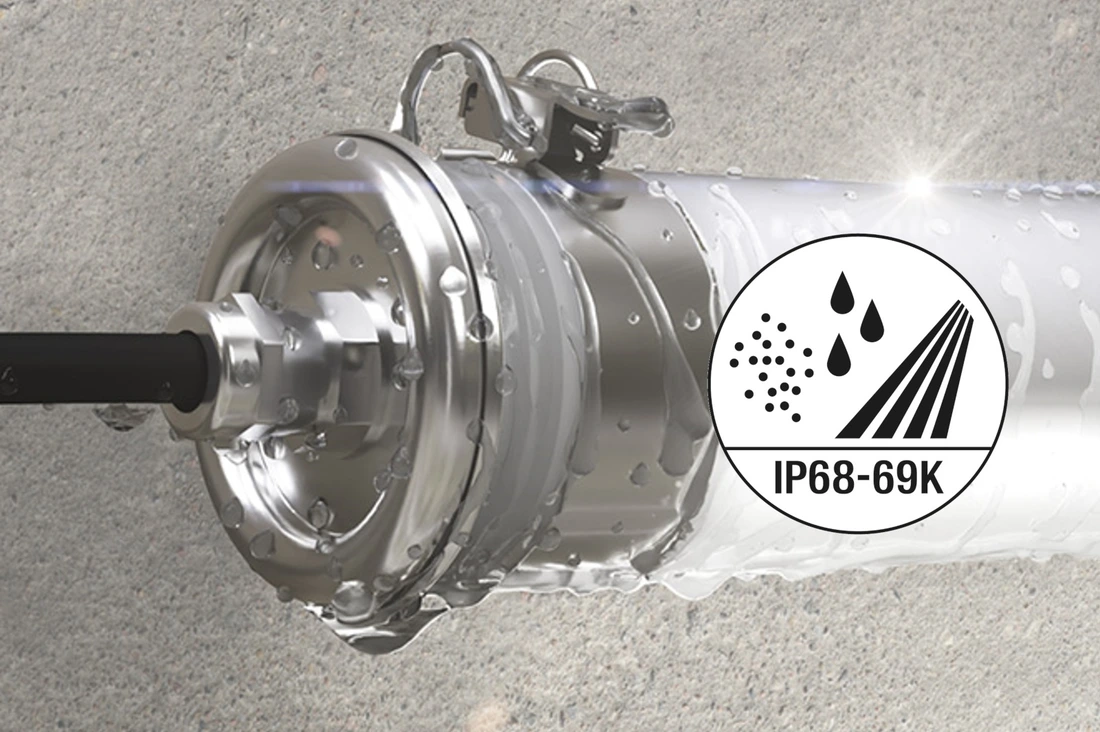

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, applied here to the Purcell. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of impacts and UV radiation.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 8-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Non dimmable version

3000K, UGR ≤22 (longitudinal)

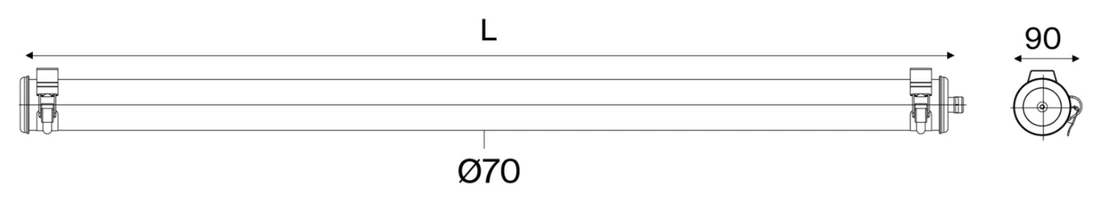

ReflectorFlux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver 1500 995 PURCELL 70 S 1000 1500-830 14947040 15 Data sheet Plan STEP DS .TXT Download all
Silver 2000 1295 PURCELL 70 S 1300 2000-830 14947050 19 Data sheet Plan STEP DS .TXT Download all
Silver 2500 1595 PURCELL 70 S 1600 2500-830 14947060 24 Data sheet Plan STEP DS .TXT Download all
Copper 1500 995 PURCELL 70 C 1000 1500-830 14947118 15 Data sheet Plan STEP DS .TXT Download all
Copper 2000 1295 PURCELL 70 C 1300 2000-830 14947119 19 Data sheet Plan STEP DS .TXT Download all
Copper 2500 1595 PURCELL 70 C 1600 2500-830 14947120 24 Data sheet Plan STEP DS .TXT Download all
Silver 350 430 PURCELL 70 S 450 350-830 14947500 5 Data sheet Plan STEP DS .TXT Download all
Copper 350 430 PURCELL 70 C 450 350-830 14947504 5 Data sheet Plan STEP DS .TXT Download all
Copper 1000 695 PURCELL 70 C 700 1000-830 14947505 10 Data sheet Plan STEP DS .TXT Download all
Brass 1500 995 PURCELL 70 B 1000 1500-830 14947124 15 Data sheet Plan STEP DS .TXT Download all
Brass 2000 1295 PURCELL 70 B 1300 2000-830 14947125 19 Data sheet Plan STEP DS .TXT Download all
Brass 2500 1595 PURCELL 70 B 1600 2500-830 14947126 24 Data sheet Plan STEP DS .TXT Download all
Silver 1000 695 PURCELL 70 S 700 1000-830 14947133 10 Data sheet Plan STEP DS .TXT Download all
Brass 350 430 PURCELL 70 B 450 350-830 14947479 5 Data sheet Plan STEP DS .TXT Download all
Brass 1000 695 PURCELL 70 B 700 1000-830 14947376 10 Data sheet Plan STEP DS .TXT Download all
Petrol 350 430 PURCELL 70 P 450 350-830 14947501 6 Data sheet Plan STEP DS .TXT Download all
Petrol 1000 695 PURCELL 70 P 700 1000-830 14947476 13 Data sheet Plan STEP DS .TXT Download all
Petrol 1500 995 PURCELL 70 P 1000 1500-830 14947127 19 Data sheet Plan STEP DS .TXT Download all
Petrol 2000 1295 PURCELL 70 P 1300 2000-830 14947128 24 Data sheet Plan STEP DS .TXT Download all
Petrol 2500 1595 PURCELL 70 P 1600 2500-830 14947129 30 Data sheet Plan STEP DS .TXT Download all

DALI dimmable version

3000K, UGR ≤22 (longitudinal)

ReflectorFlux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver 350 430 PURCELL 70 S 450 350-830 RD 14947862 5 Data sheet Plan STEP DS .TXT Download all
Silver 1500 995 PURCELL 70 S 1000 1500-830 RD 14947299 14 Data sheet Plan STEP DS .TXT Download all
Silver 2000 1295 PURCELL 70 S 1300 2000-830 RD 14947311 17 Data sheet Plan STEP DS .TXT Download all
Silver 2500 1595 PURCELL 70 S 1600 2500-830 RD 14947265 21 Data sheet Plan STEP DS .TXT Download all
Silver 1000 695 PURCELL 70 S 700 1000-830 RD 14947869 10 Data sheet Plan STEP DS .TXT Download all
Copper 350 430 PURCELL 70 C 450 350-830 RD 14947863 5 Data sheet Plan STEP DS .TXT Download all
Copper 1500 995 PURCELL 70 C 1000 1500-830 RD 14947252 14 Data sheet Plan STEP DS .TXT Download all
Copper 2000 1295 PURCELL 70 C 1300 2000-830 RD 14947385 17 Data sheet Plan STEP DS .TXT Download all
Copper 1000 695 PURCELL 70 C 700 1000-830 RD 14947868 10 Data sheet Plan STEP DS .TXT Download all
Copper 2500 1595 PURCELL 70 C 1600 2500-830 RD 14947609 21 Data sheet Plan STEP DS .TXT Download all
Petrol 1000 695 PURCELL 70 P 700 1000-830 RD 14947315 12 Data sheet Plan STEP DS .TXT Download all
Petrol 1500 995 PURCELL 70 P 1000 1500-830 RD 14947161 17 Data sheet Plan STEP DS .TXT Download all
Petrol 2000 1295 PURCELL 70 P 1300 2000-830 RD 14947359 22 Data sheet Plan STEP DS .TXT Download all
Brass 350 430 PURCELL 70 B 450 350-830 RD 14947864 5 Data sheet Plan STEP DS .TXT Download all
Brass 1000 695 PURCELL 70 B 700 1000-830 RD 14947867 10 Data sheet Plan STEP DS .TXT Download all
Brass 1500 995 PURCELL 70 B 1000 1500-830 RD 14947576 14 Data sheet Plan STEP DS .TXT Download all
Brass 2000 1295 PURCELL 70 B 1300 2000-830 RD 14947459 17 Data sheet Plan STEP DS .TXT Download all
Brass 2500 1595 PURCELL 70 B 1600 2500-830 RD 14947866 21 Data sheet Plan STEP DS .TXT Download all
Petrol 350 430 PURCELL 70 P 450 350-830 RD 14947865 6 Data sheet Plan STEP DS .TXT Download all
Petrol 2500 1595 PURCELL 70 P 1600 2500-830 RD 14947360 27 Data sheet Plan STEP DS .TXT Download all

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BCV
Fixing straps with tamper-resistant Torx screw BCVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Casambi Bluetooth control RB
Non dimmable -

Electrical class

Class I CL1
Class II -

Bathroom

Very low voltage for use in bathrooms 24V
Stainless steel cable plate kit (IP40) 17500020
Horizontal suspension kit (3m ropes) 17500050
Pre-cabling 3m 3G1.5 (3 wires) Braided tinned copper cable CAB0008
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Extensive reflector with louvre
  • Specific satin-finish primary diffuser optics
Lighting comfort
  • Longitudinal brightness control
  • Longitudinal glare control 25°
  • Longitudinal UGR ≤22
Control gear
  • Constant current driver
  • Electronic compatible with central source
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class II
Operating temperature
  • -25°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-12 mm
  • To a 3 x 2,5 mm² or ou 5 x 2,5 mm² disconnectable terminal block (dimmable models)
Closing
  • Closing by tightening the nut on the cable gland
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Maintenance without tampering with the cable by removal of the end cap without cable entry
  • Close'N Connect Patented system with automatic electrical connection/disconnection on closure
  • Easily removable LED modules and driver
  • Quick opening and closing with just one screw

Housing
  • Coextruded polycarbonate/PMMA diameter 70 for indoor and outdoor use
End caps and fixing straps
  • 304L stainless steel
Louvre
  • Aluminium louvre

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

ULR = 6%
